Aluminum solar ground mounting system - 2 slots U beam

Aluminum solar ground mounting system-2 slots U beam mounting system is more stronger and can withstand high wind load and snow load.
  • Item NO.:

    AS-AG-2SUB
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

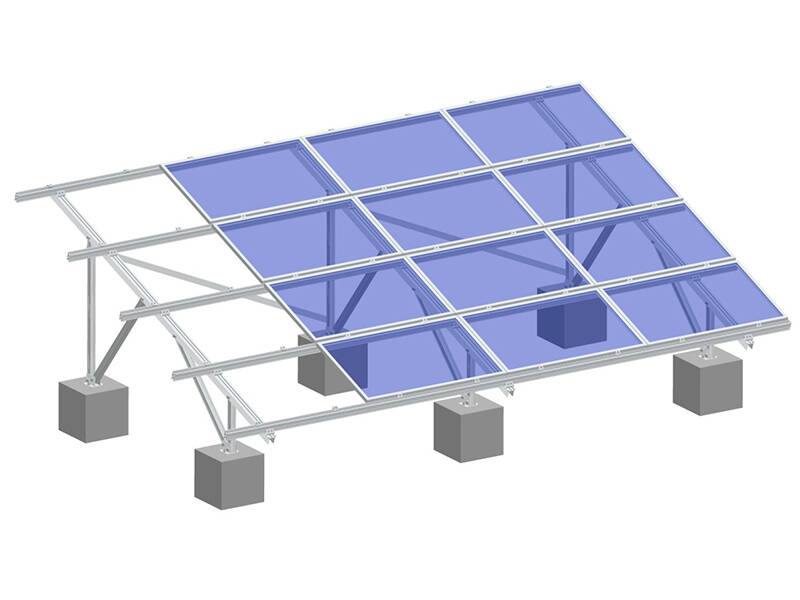

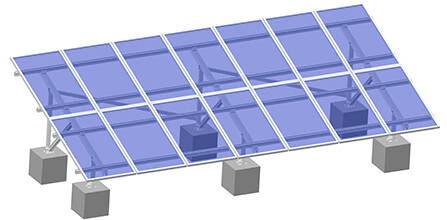

Aluminum solar ground mounting system - 2 slots U beam


· Design Features

  ① Aluminum ground structure is lighter and easier to install.

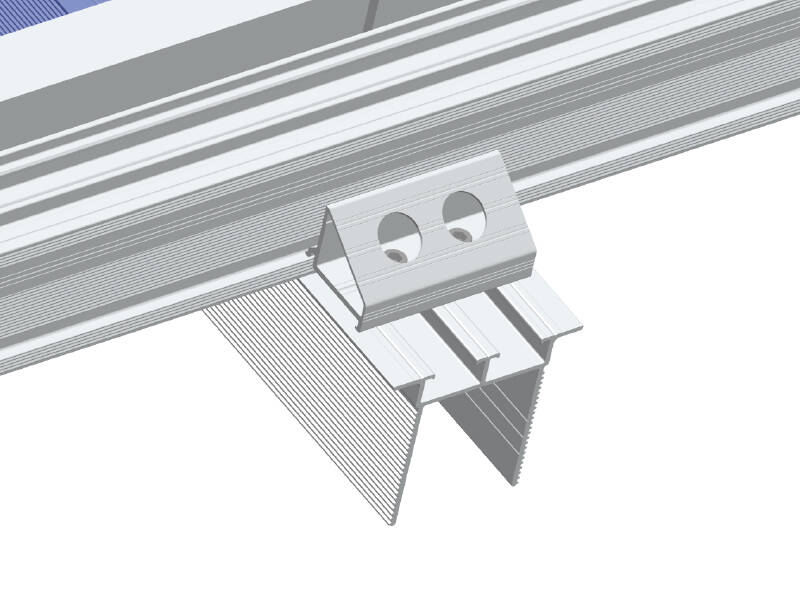

  ② 2 slots U beam mounting system is more stronger and can withstand high wind load and snow load.


· Foundation type:

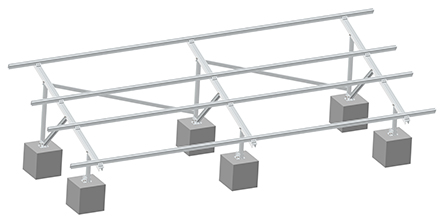

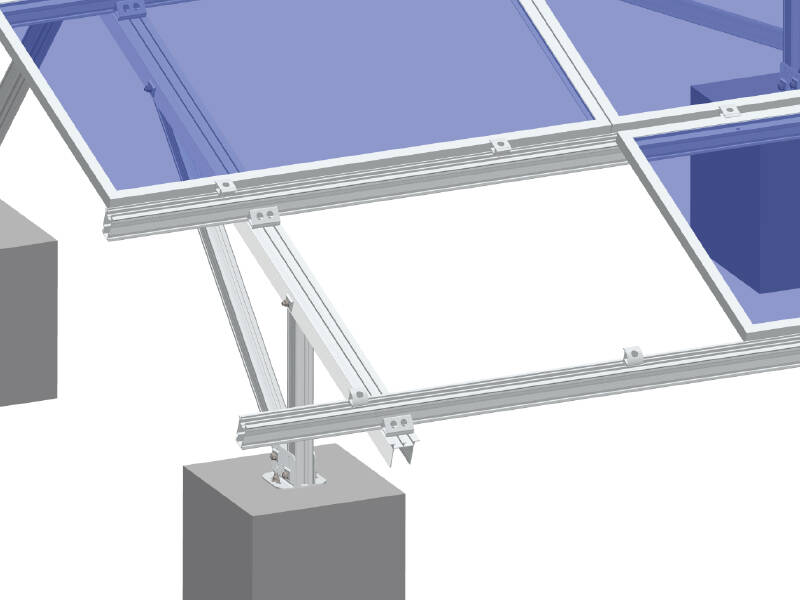

  Ground screw, concrete pad, pile driven, triangle base etc.
  Tips: Triangle base can prevent the whole system sinking into sandy ground which is suitable to desert or other similar ground.


· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  The structure designed according to the wind load or snow load request.


· Certification:
  Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.



Suitable for
  open field ground
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years



Category : Aluminum Ground Mount





AS-TMC AS-TEC
AS-TCMC



AS-TCEC
AS-AL-RC-02
AS-AUB-1



AS-AUB-2
AS-AS-2
AS-AS-3 / AS-AL-B



Rail 16# / Cross beam
AS-RS-16
AS-R-17



AS-OB
AS-VS2
AS-KS2







Step 1

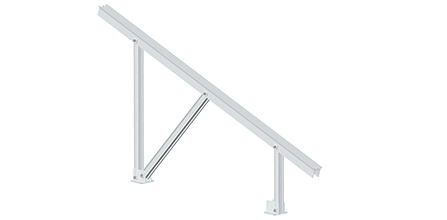

Prepare the pre-assembled triangle kit

Step 2
Open the pre-assembled triangle kit






Step 4

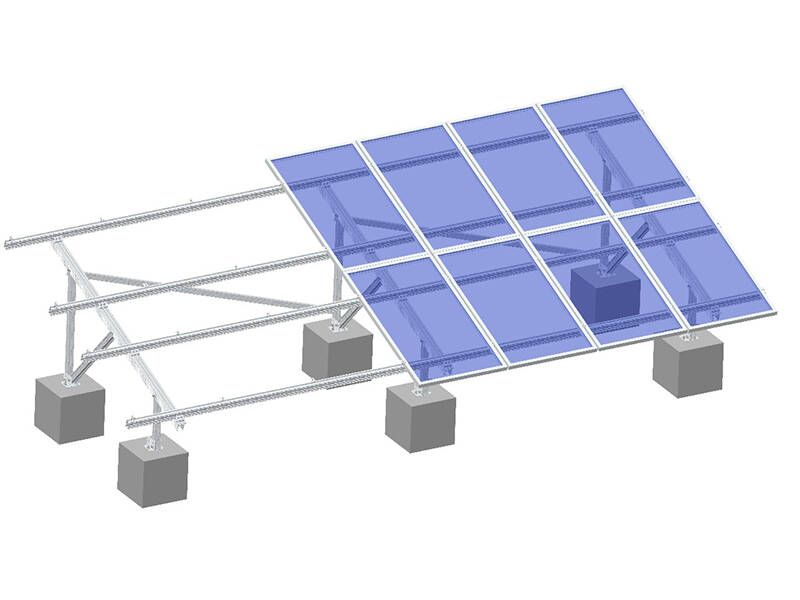

Install solar panel

Step 3
fixed the pre-assembled triangle kit


Aluminum solar ground mounting system - 2 slots U beam
