Aluminum ground mount solar racking - Fixed W type
· Design Features
① Most suitable for large span of footing such as 4 meters.
② W structure part will be pre-assembled.
· Foundation type:
Pile driven, ground screw, concrete pad.
· Surface treatment:
10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.
· Design Strength:
The structure designed according to the wind load or snow load request.
|
Suitable for |
open field ground |
|
Module |
Framed, thin film |
|
Material&Surface treatment |
10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts |
|
Color |
silver, black or customer requirement |
|
Module orientation |
Landscape and portrait |
|
Wind load |
Max 60m/s |
|
Snow load |
Max 1.5kn/m2 |
|
Standards |
Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS |
|
Warranty |
20 years |
 |
 |
 |
| AS-TR85-03 |
AS-TR-D32 |
AS-WHC-03 |
 |
 |
 |
|
AS-AS-3 / AS-AL-B |
AS-AS3 |
AS-AS-5 |
 |
 |
 |
|
AS-AL-BS-T |
AS-AL-BS-100-T |
AS-SAB-8-50-T |
 |
 |
 |
|
AS-KC-02 |
AS-TMC |
AS-TEC |
 |
 |
|
|
AS-W02-VS |
AS-W02-WS |
|
 |
 |
 |
|
Step 1

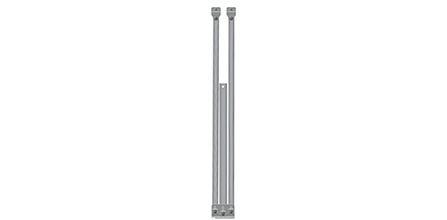

Prepare the pre-assembled triangle kit |
|
Step 2
Open the pre-assembled triangle kit |
|
|
|
 |
 |
 |
 |
|
Step 4

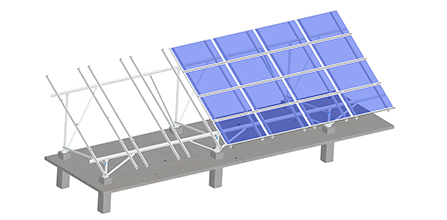

Install solar panels |
|
Step 3

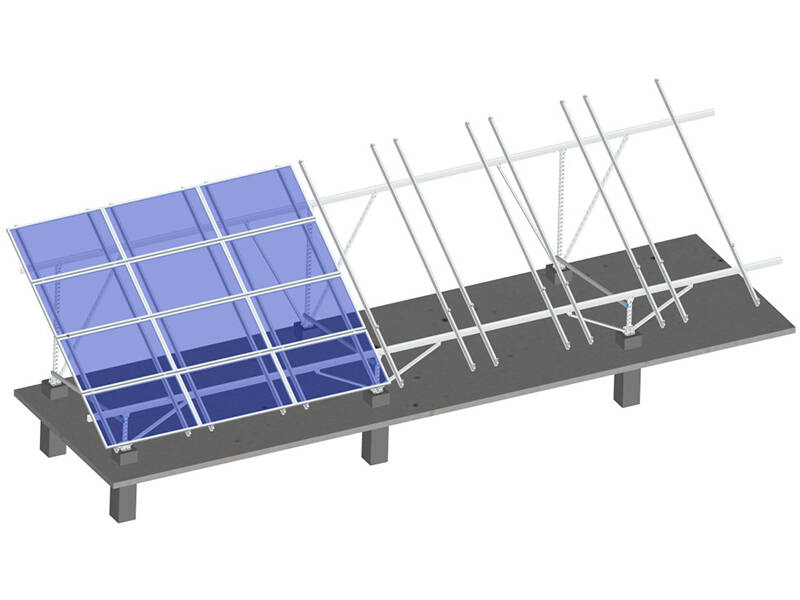

Fix the pre-assembled triangle kit |
