Factory price aluminum roof hooks tile roof solar mounting hooks

Factory price aluminum roof hooks tile roof solar mounting hooks

23B# tile roof aluminum roof hooks can be adjustable and it is lighter than SUS 304 roof hooks, it can adjust rail orientation.

Item NO.:
AS-A-RH-23-B
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

Factory price aluminum roof hooks tile roof solar mounting hooks

Design Features

— Different aluminum rail types can be choose for installation.
— Adjustable, quicker and easier installation.

Mode Number	AS-A-RH-23-B	Brand Name	ART SIGN
Specs	Adjustable range: Top part: 51~77mm Bottom part: 45~61mm	Material	Aluminum 6005-T5
Application	solar panel roof mounting system	Packing	wooden case
Keyword	factory price solar panel mounting roof hook	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

solar tile roof hook

Anodized aluminum hook

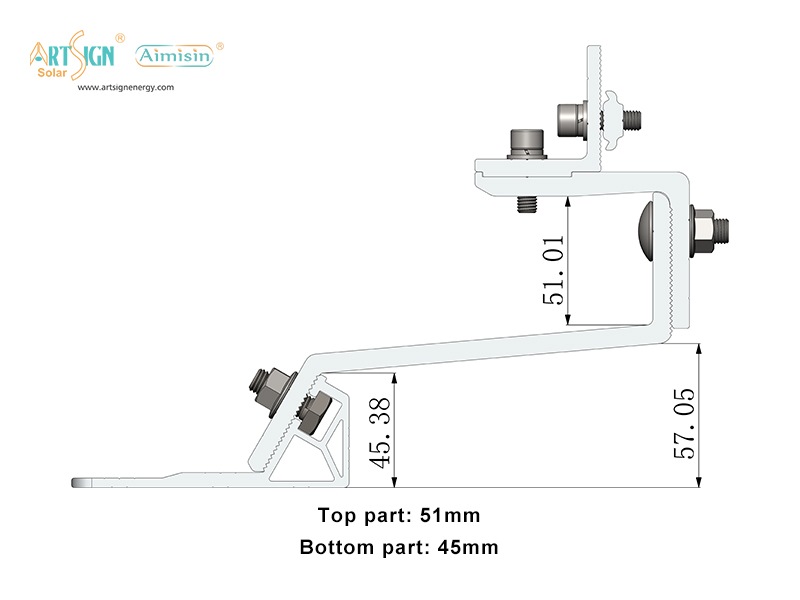

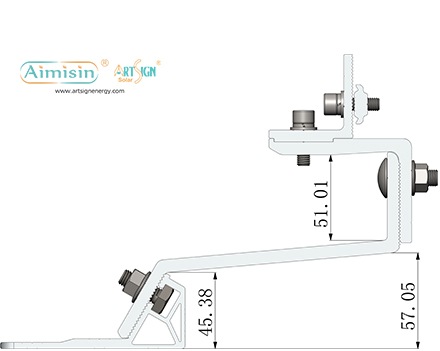

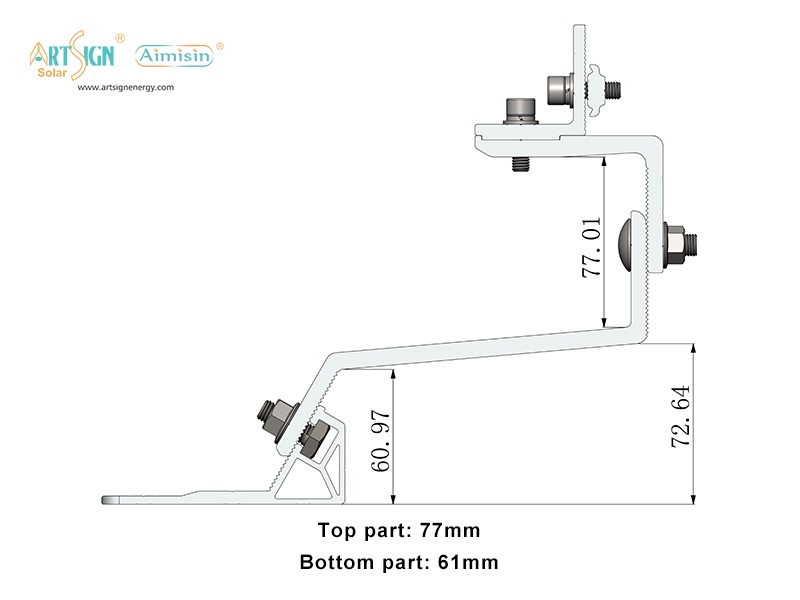

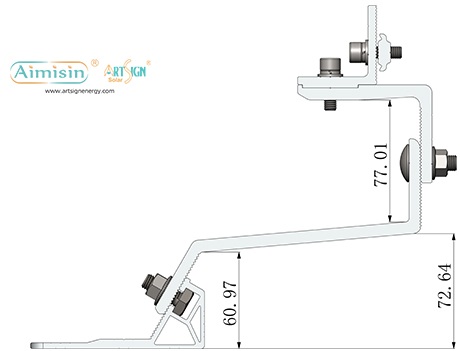

23# hook type B adjustable range:


Minimum height	Maximum height

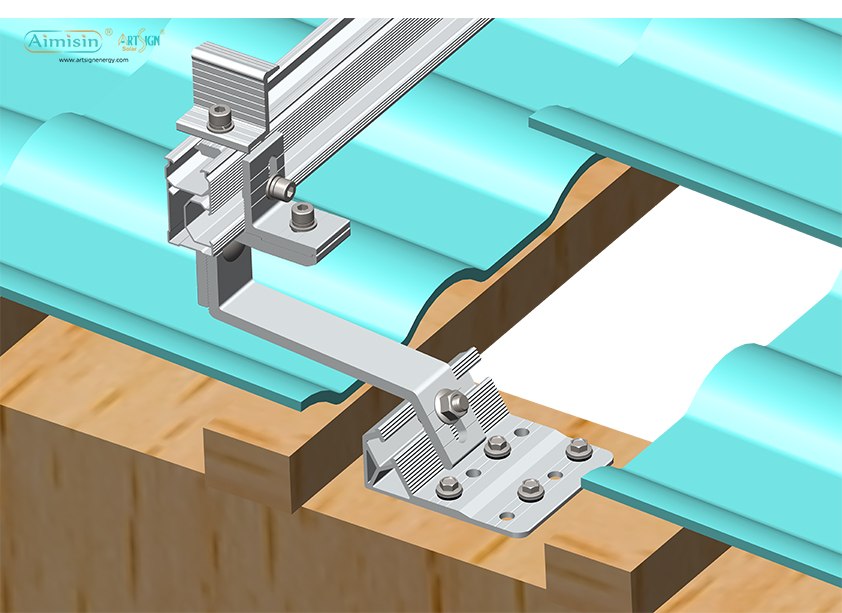

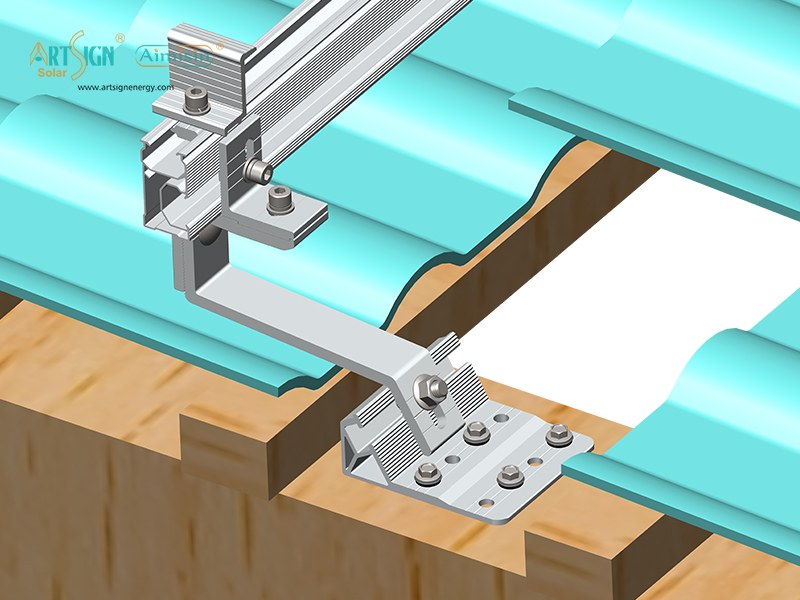

23# hook Type B installation diagram

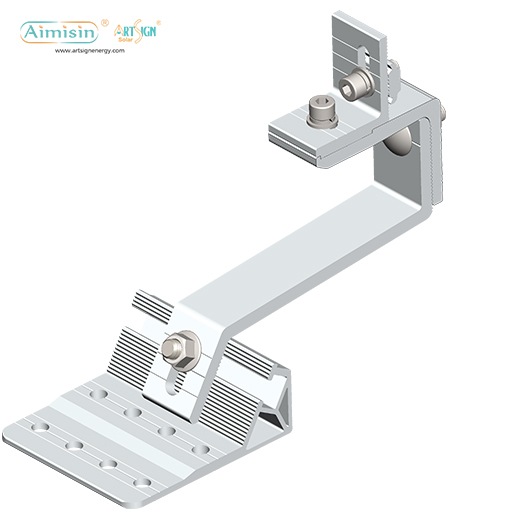

solar tile roof hook

Can be matched with many kinds of scews.

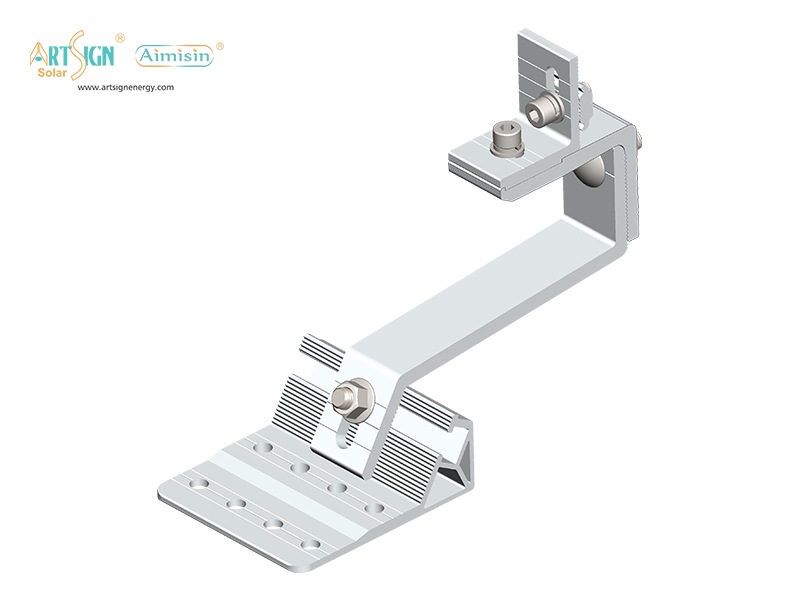

solar tile roof hook

ART SIGN solar mounting related accessories

Click to see more Aluminum roof bracket.


AS-RH-20	AS-RH-21	AS-A-RH-23-A	AS-A-RH-23-B
