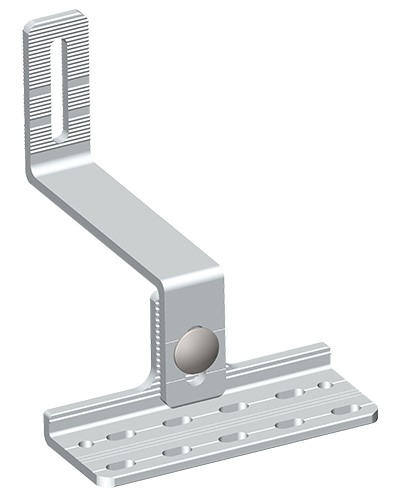

Solar mounting bracket roof hook 20#

Aluminum solar panel mounting hook 20# is suited for tile roof.
  • Item NO.:

    AS-RH-20
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

ART SIGN solar panel aluminium roof mounting brackets tile hook 20#


Design Features

— Lightweight aluminium solar panel mounting roof hook is easy to install and handle.
— OEM solar roof mount panel brackets is suitable for tile roof.

Mode Number

  AS-RH-20

Brand Name

  ART SIGN
Specs

  Adjustable range:
  Top part: 152.5~176.5mm
  Bottom part: 69~93mm

Material

  Aluminum 6005-T5

Application
  solar panel roof mounting system Packing
  Carton box / plywood pallet
Keyword
  Popular solar roof mounting aluminum tile hook Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years

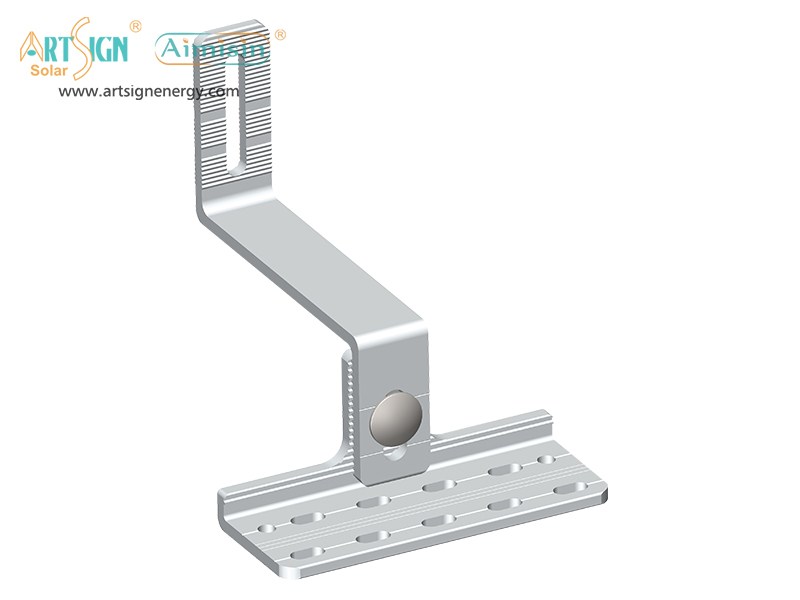

ART SIGN aluminium brackets for solar panels AS-RH-20

ART SIGN aluminium brackets for solar panels AS-RH-20
ART SIGN aluminium brackets for solar panels AS-RH-20

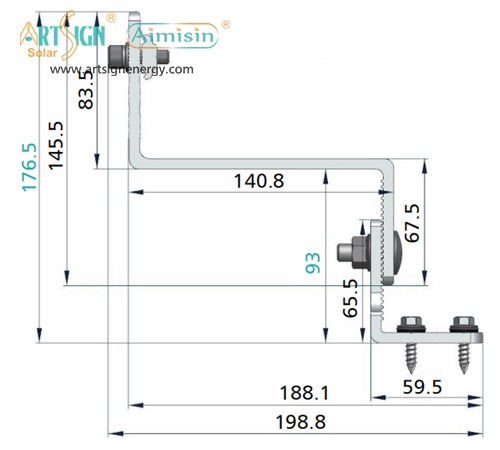

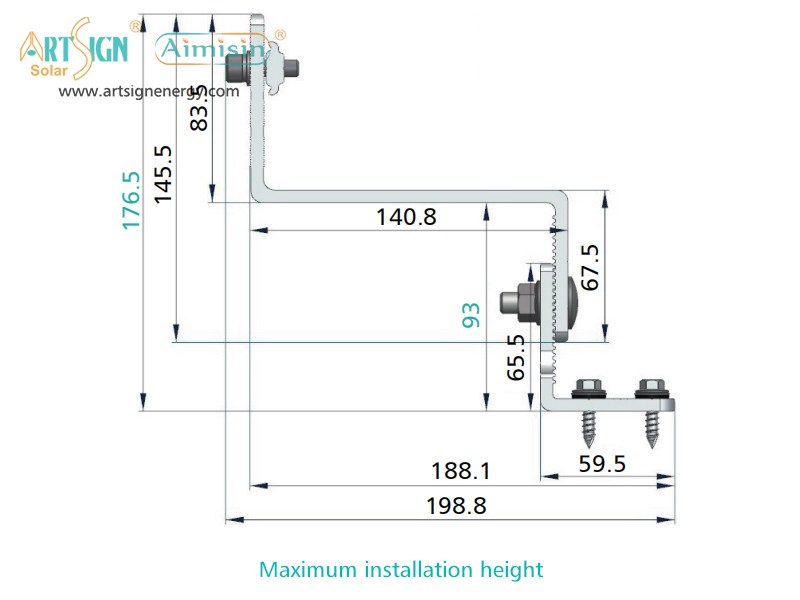

Maximum installation height

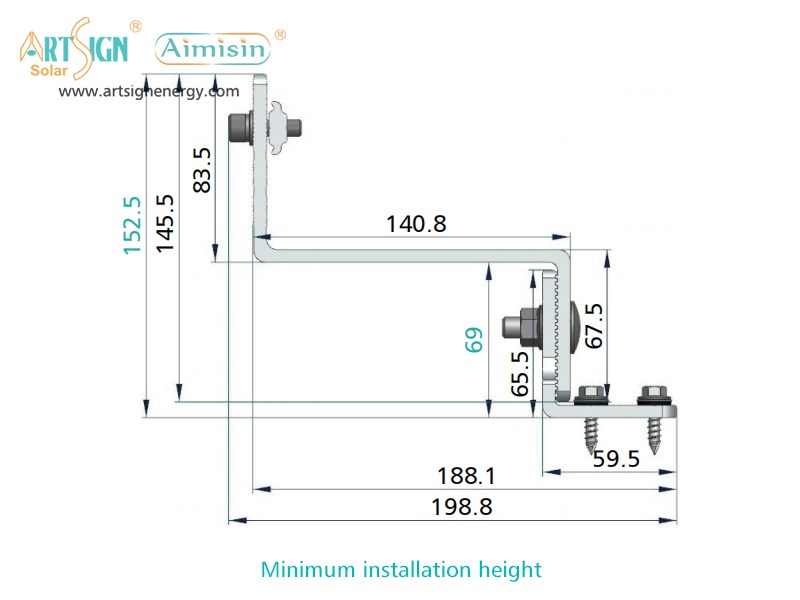

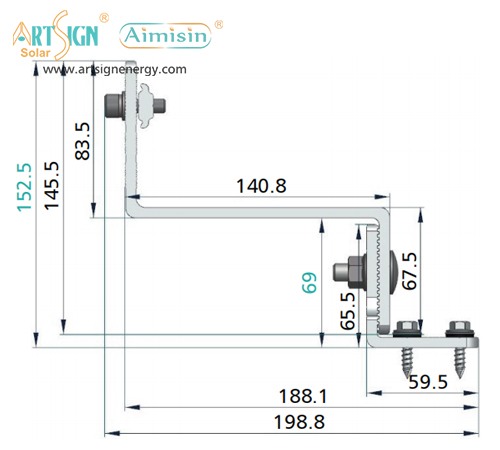

Minimum installation height

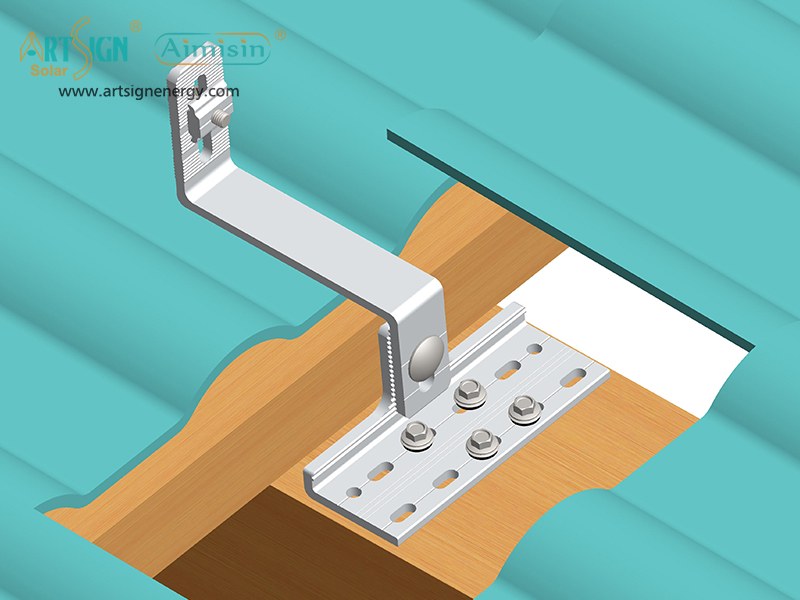

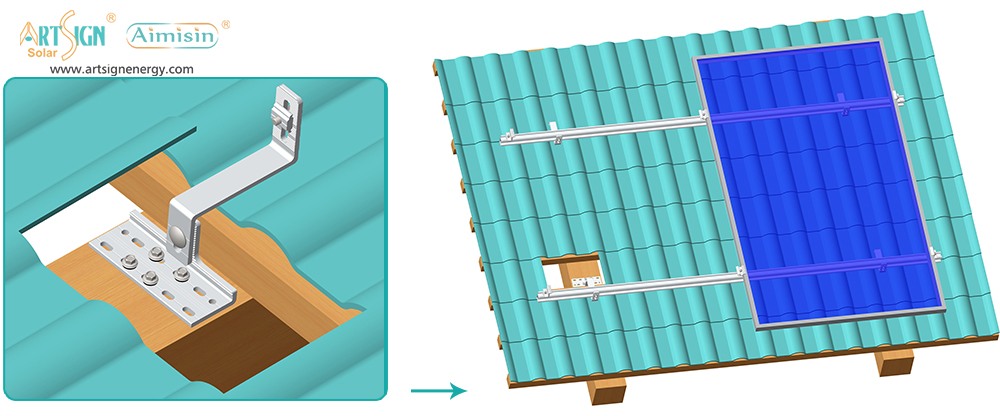

ART SIGN solar mounting details20# hook installation diagram

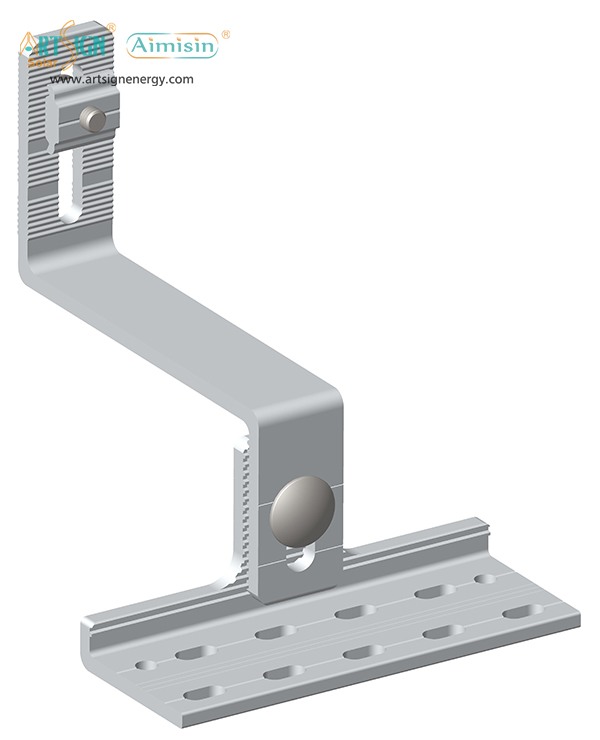

ART SIGN aluminium brackets for solar panels AS-RH-20

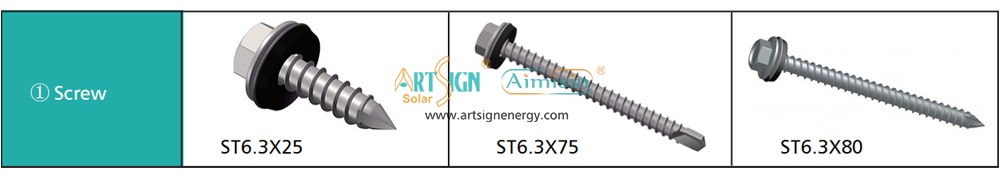

ART SIGN solar mounting detailsCan be matched with many kinds of screws

ART SIGN roof hooks matched with many kinds of screws

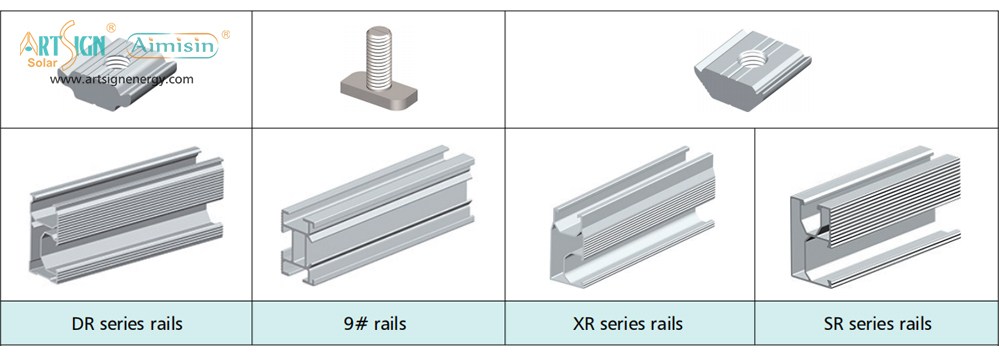

ART SIGN solar mounting detailsCompatible nut and rail for hook 20#

ART SIGN compatible nut and rail for hook 20#


   Package Type
   ● Inner packing: carton boxes
   ● Outer packing: wooden case / pallet

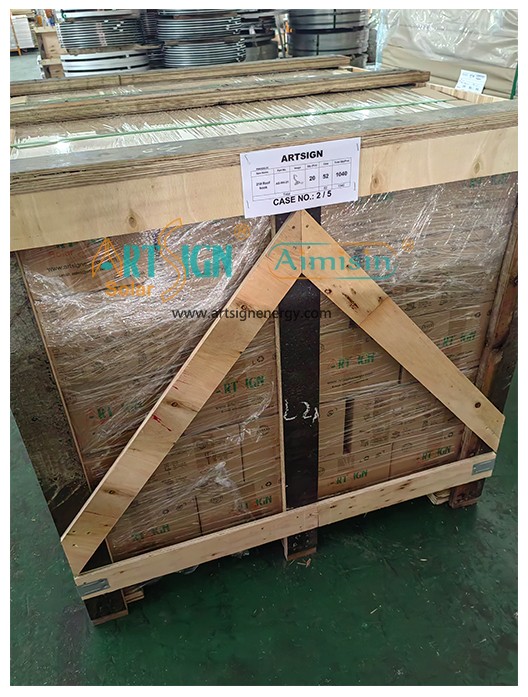

ART SIGN aluminium brackets for solar panels AS-RH-20 packages


ART SIGN quick installation solar end clamp 30-40mm related accessories

Customized cutting length to be suitable for different wind load and snow load requirements.

Category : Aluminum roof bracket

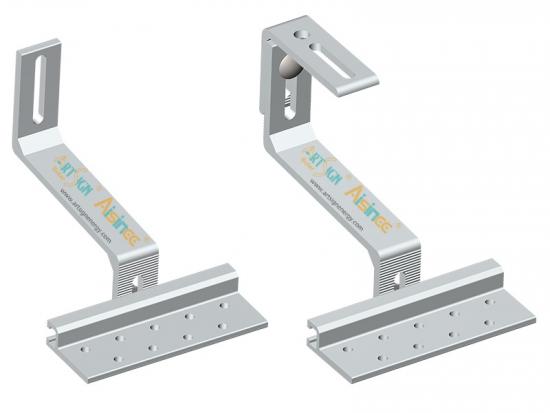

ART SIGN aluminium brackets for solar panels AS-RH-20

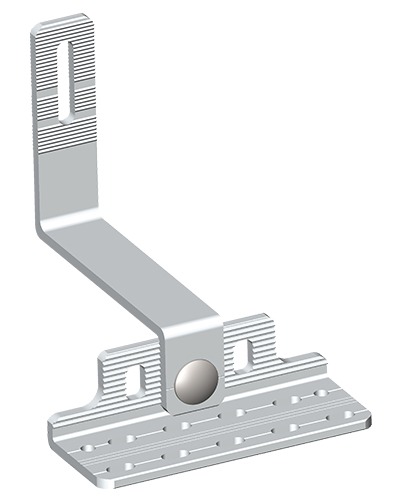

ART SIGN aluminium brackets for solar panels AS-RH-21
AS-RH-20 AS-RH-21
