Aluminum ground mount solar system - W Type

Aluminum ground mount solar system -  W Type is suitable for heavy snow region,flexible installation is most suitable for sloping mountain.
  • Item NO.:

    AS-AG-WT
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

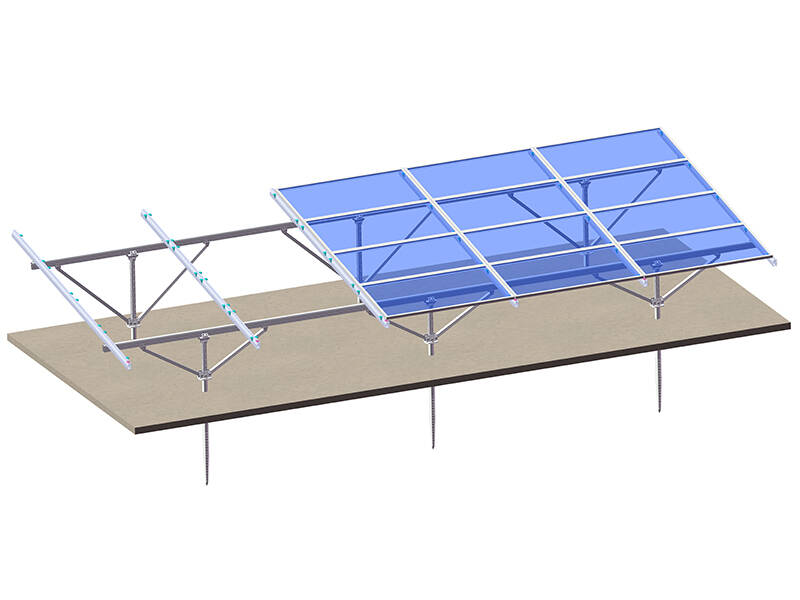

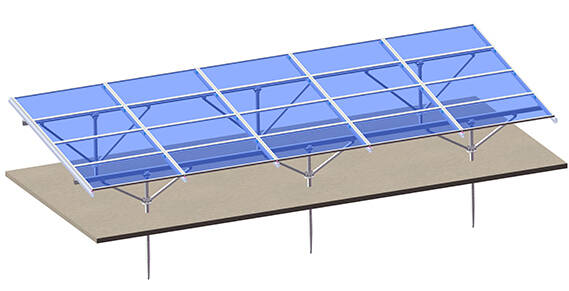

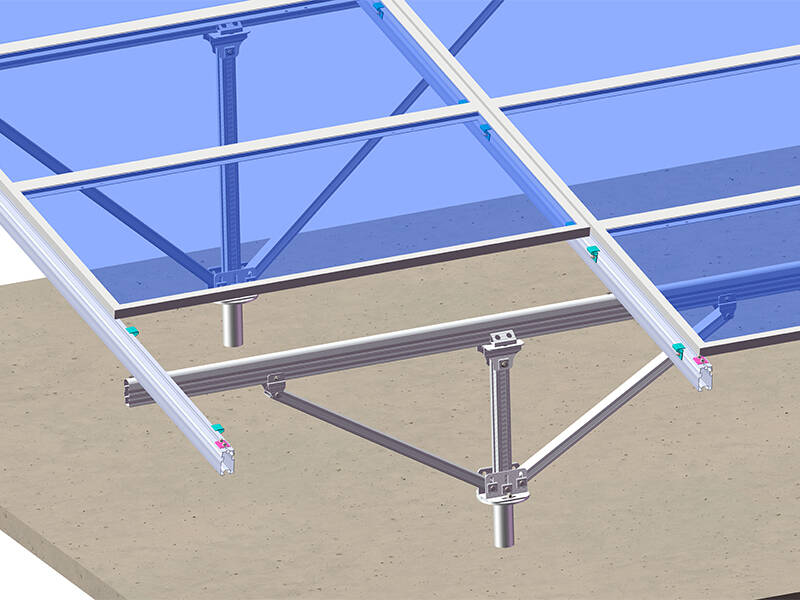

Aluminum solar ground mounting system - W type


· Design Features

  ① Suitable for heavy snow region.

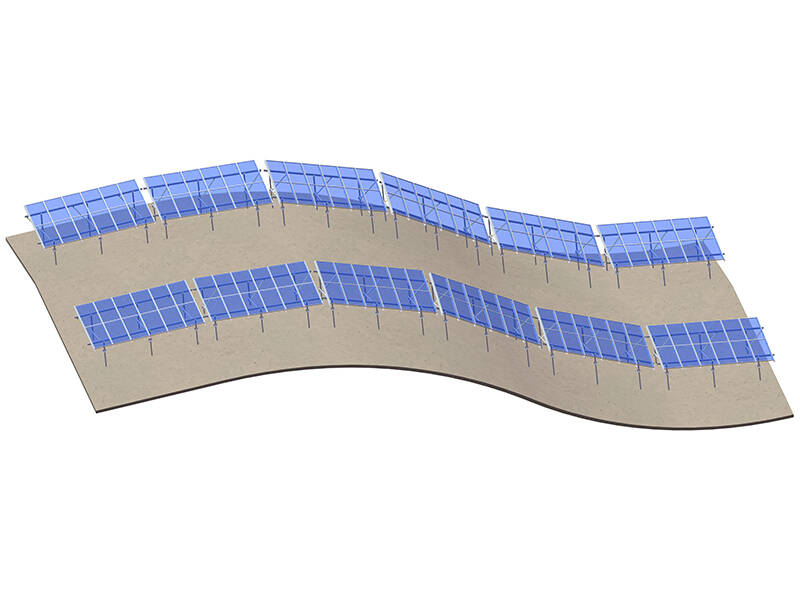

  ② Flexible installation is most suitable for slopping mountain.
  ③ Various design of profile for different strength requirement and installation method.




· Foundation type:

  Pile driven, ground screw, concrete pad.


· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  The structure designed according to the wind load or snow load request.



Suitable for
  open field ground,sloping mountain
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-R-19 AS-R-20 / AS-CB2
AS-R-20B



AS-R-21
AS-R-21B
AS-R-23



AS-W-H01
AS-W-H03
AS-W-H03-T



AS-W-H04
AS-WHC-01
AS-WHC-03



AS-AS-2
AS-AS3
AS-W-AS3



AS-AS-5
AS-AS-8
AS-WHC-04



AS-W-BC-01
AS-AL03-BJ-2
AS-AL-BS-2



AS-AL-AC
AS-AL-SC
AS-ST-3



AS-OB-2




Category : Aluminum Ground Mount



Step 1

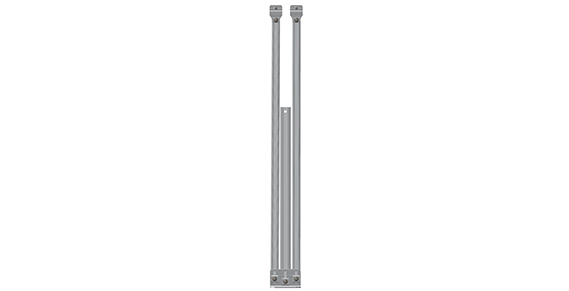

Prepare the pre-assembled triangle kit


Step 2

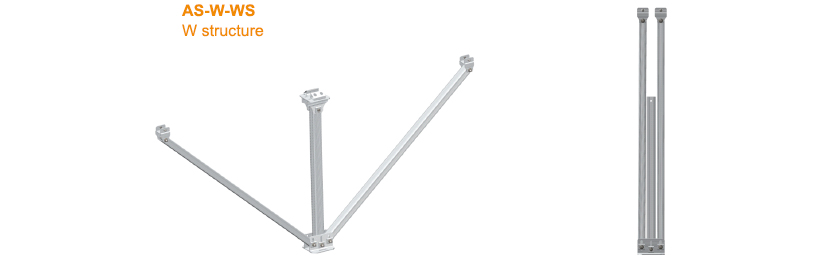

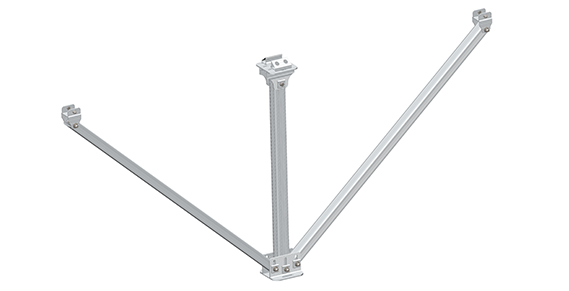

Open the pre-assembled triangle kit


Step 3

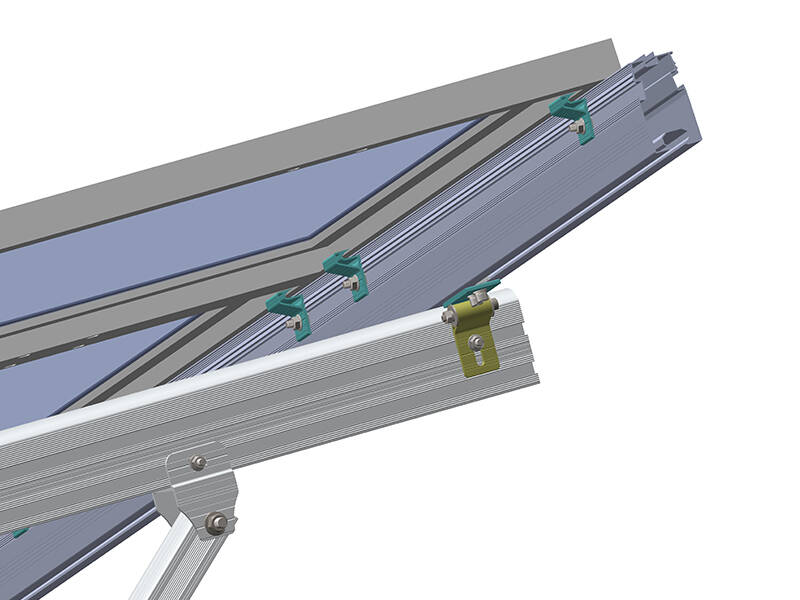

Fix the pre-assembled triangle kit ,and install solar panels

Aluminum solar ground mounting system - W type
