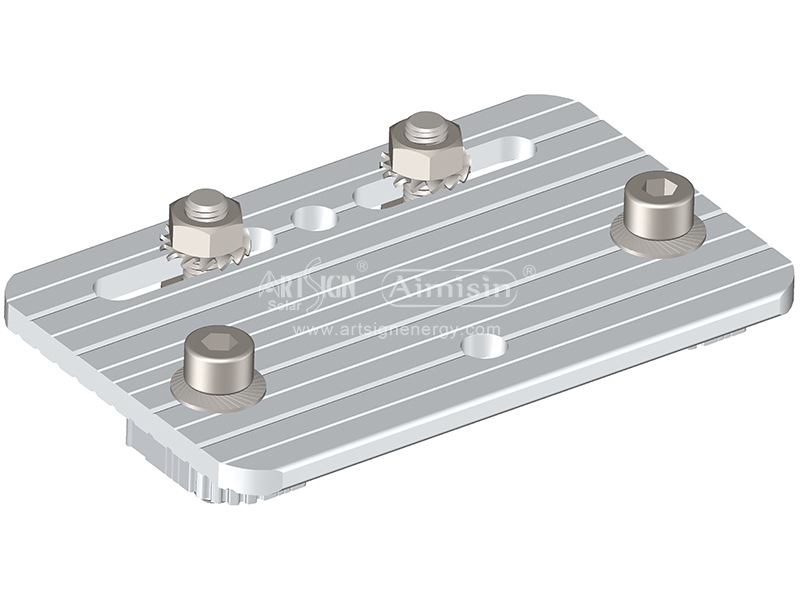

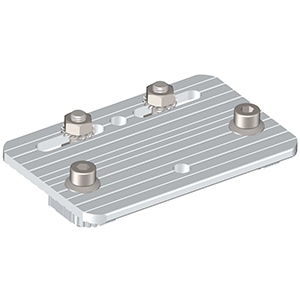

Anodized aluminum factory price solar PV module clamp mount fixing bracket AS-AL-PF-1

Anodized aluminum factory price solar PV module clamp mount fixing bracket AS-AL-PF-1 is mainly used for solar ground mounting systems. It's designed to fix solar modules, the bolts are fastened to the solar panel frames and solar PV rail profiles. Compare with solar mid-clamp and solar end clamp, this solar PV clamp fixing bracket can hold the solar PV panels tighter, especially when the structure is high (say more than 2meters), people don't need to worry that the solar PV modules will fall down and hurt passengers.

Item NO.:
AS-AL-PF-1
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
silver

Inquiry now

Product Detail

Anodized aluminum factory price PV module solar mounting clamp AS-AL-PF-1

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN
Mode Number	AS-AL-PF-1	Specs	L130*W84mm
Material	Aluminum 6005-T5	Application	framed panel
Surface treament	Anodized above 10um	Packing	cartons, plywood pallets / cases
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	solar PV module clamp mount fixing bracket	Service life:	25 years
Quality Warranty	20 years

Selling Units

per meter/ per pcs

Package Type

cartons, plywood pallets / cases

Lead Time：

Quantity(Sets)	1 - 5000	5001 - 10000	10001 - 100000	>100000
Est. Time (work days)	1 - 3	3 - 7	7 - 15	To be negotiated

Anodized aluminum factory price PV module solar mounting clamp AS-AL-PF-1

Customized cutting length to be suitable for different wind load and snow load requirements.

Click to see more solar panel fixing clamps.

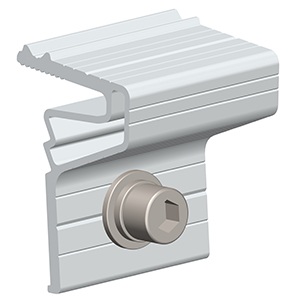

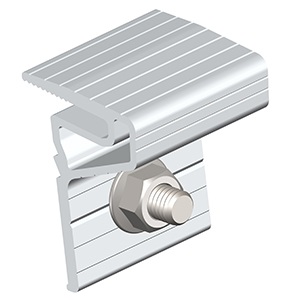

AS-AL-PF-1	AS-W-BC-01	AS-W-BC-02
