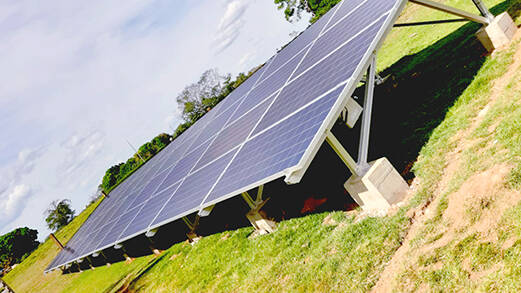

Aluminum solar panel ground mount system- railless

Aluminum solar panel ground mount system- railless is easy for installation and most suitable for desert site
  • Item NO.:

    AS-AG-RS
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

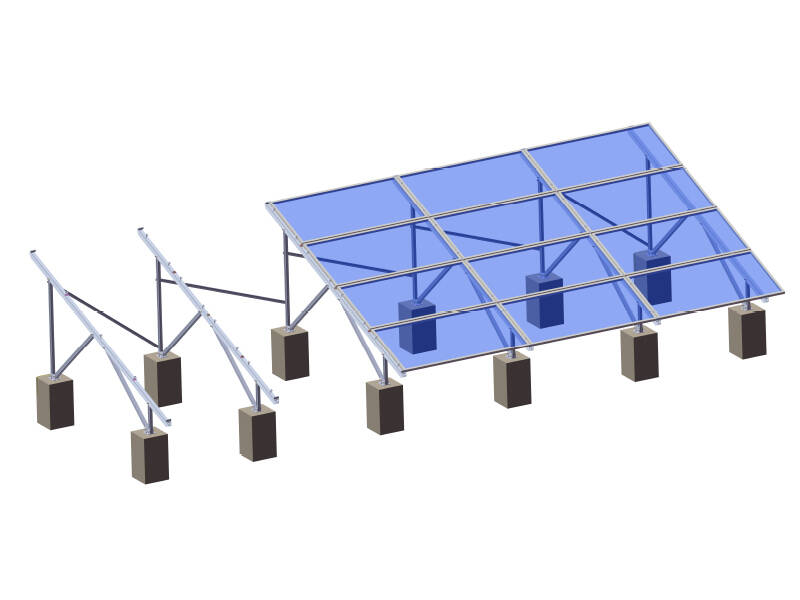

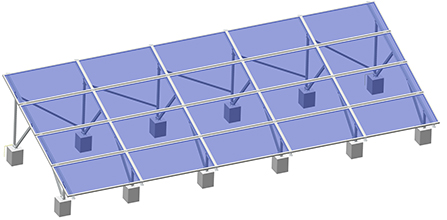

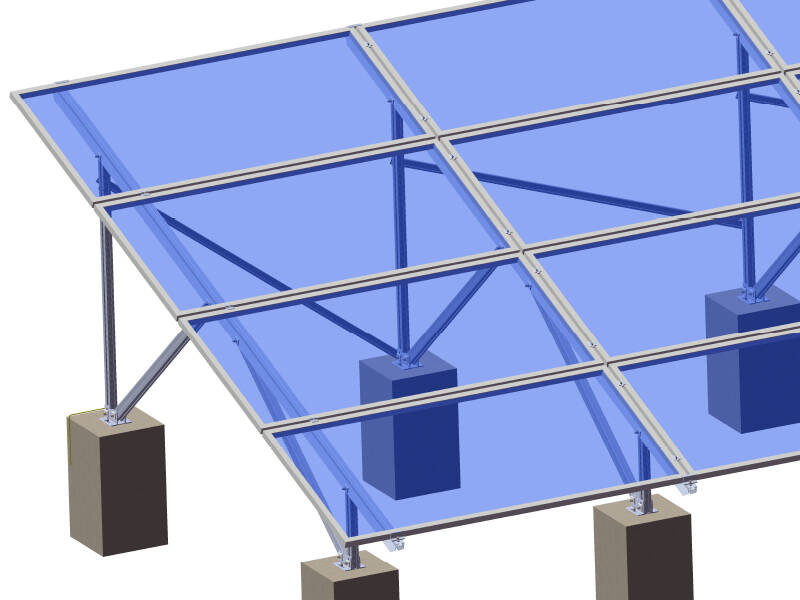

Aluminum solar panel ground mount system - railless


· Design Features

  ① Adaptable for various panel dimensions and terrains.
  ② Module arrangement can be freely changed based on different fields.
  ③ Preassembly strucutre saves installation time and labour costs.
  ④ Flexible installation for different wind loads.


· Foundation type:

  Pile driven, ground screw, concrete pad.


· Design Strength:
  The structure is designed according to the wind load or snow load request.


· Certification:
  Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.



Suitable for
  open field ground
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-DEC-L80 AS-DMC-L80
AS-LPS



AS-SB-6.3-2.5
AS-AS-4
AS-TEP-3



AS-AUB-4D
AS-AUB-4T
AS-KS3



AS-OB3
AS-OB3-2



Category : Aluminum Ground Mount





Step 1

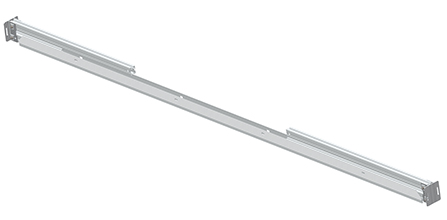

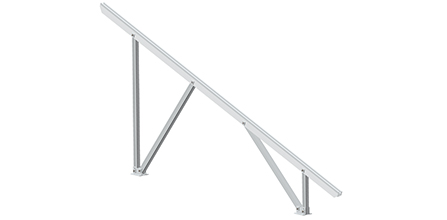

prepare the pre-assembled triangle kit

Step 2
Open the pre-assembled triangle kit






Step 4

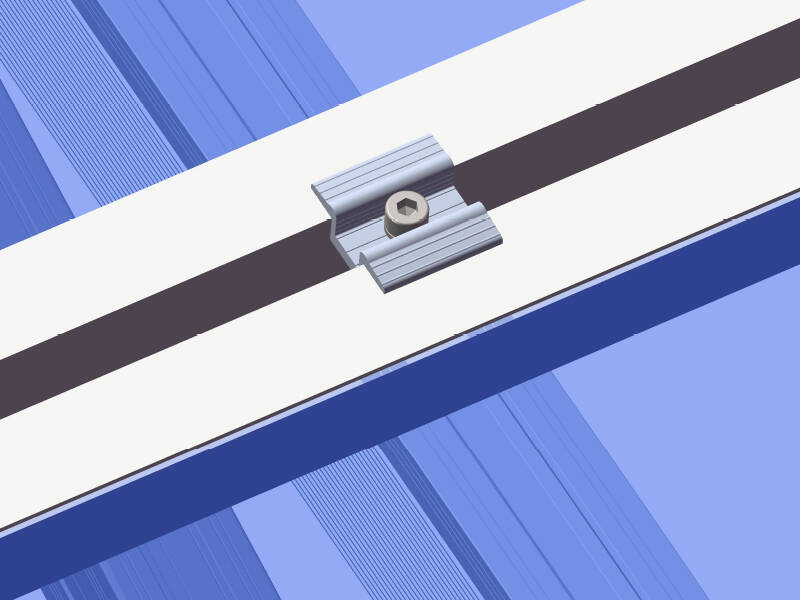

install solar panel

Step 3

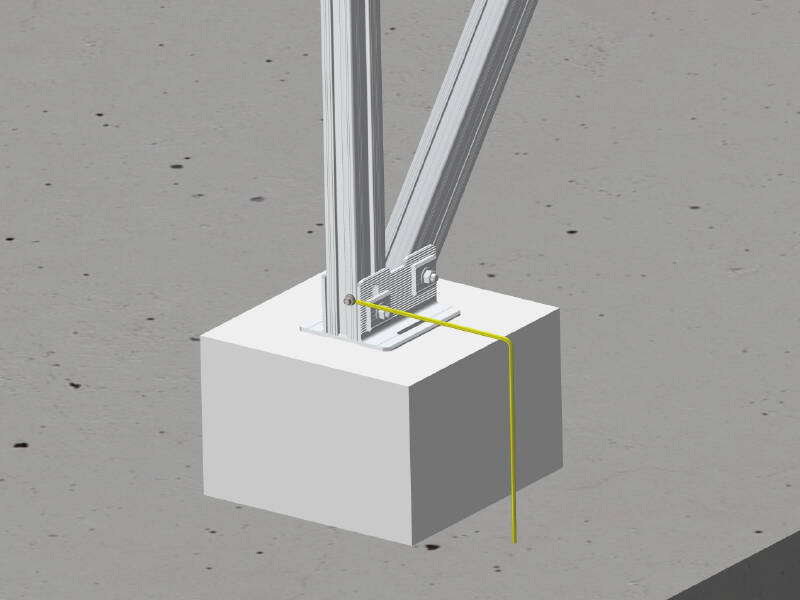

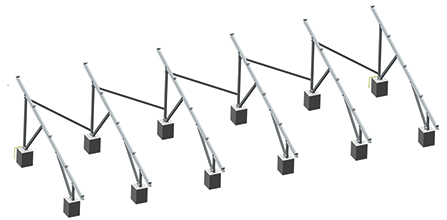

fix the pre-assembled triangle kit


Aluminum ground mounting system -  railless
