ART SIGN Rooftop solar rack pv mounting adjust rapid end clamp

ART SIGN Rooftop solar rack pv mounting adjust rapid end clamp

ART SIGN factory supplies mid clamps and end clamps to realize 30-50mm framed solar mount racking structure, which are made of extruded anodized aluminium.

Item NO.:
AS-AEC-01B
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union
Surface Treatment:
natural or black

Inquiry now

Product Detail

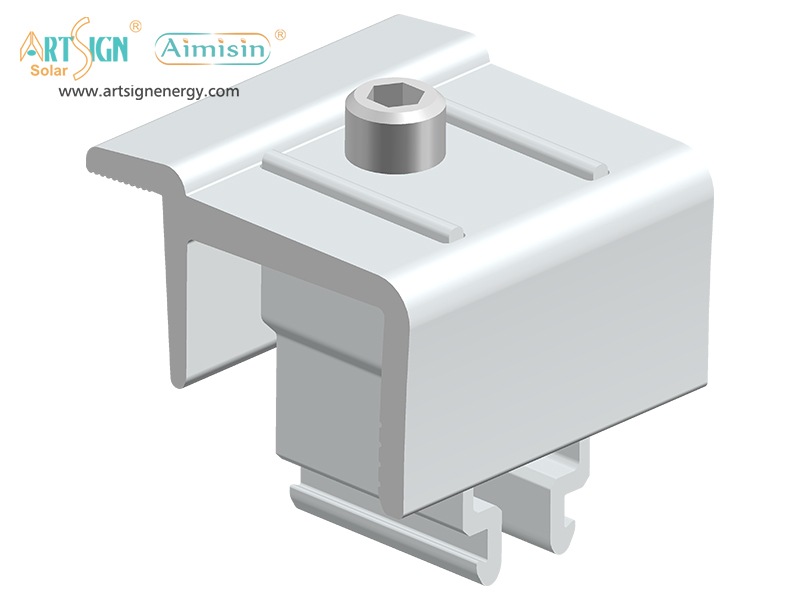

ART SIGN Rooftop solar rack pv mounting adjust rapid end clamp

Design Features

— Faster installation which saves your labor cost.
— Adjustable, quicker and easier installation for solar clamps.
— Designed as a universal mounting system.

Mode Number	AS-AEC-01B	Brand Name	ART SIGN
Specs	50mm width	Material	Aluminum 6005-T5
Application	30mm~50mm thickness solar panels	Packing	Carton, plywood pallet / case
Keyword	Customized end clamps solar panels factory	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

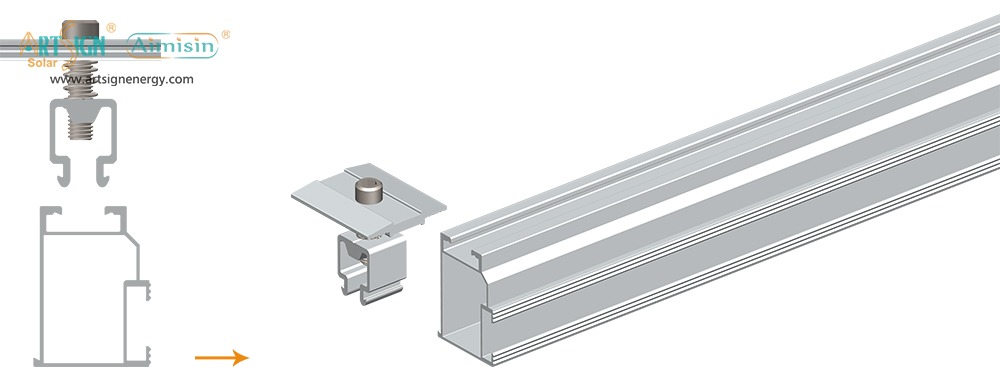

Creative clamp mount by push into rails directly.

ART SIGN end clamps solar panels AS-AEC-01B

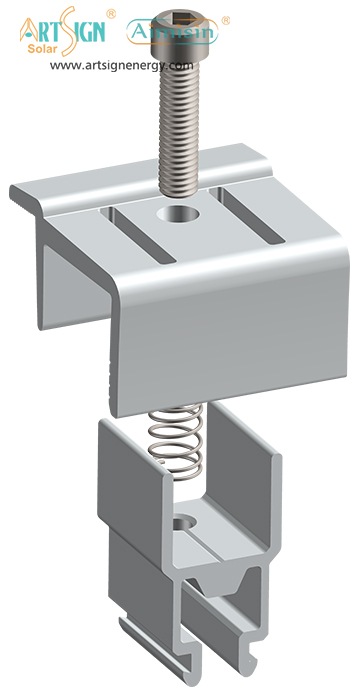

Special clamp clip could offer adjustable height.

ART SIGN end clamps solar panels AS-AEC-01B

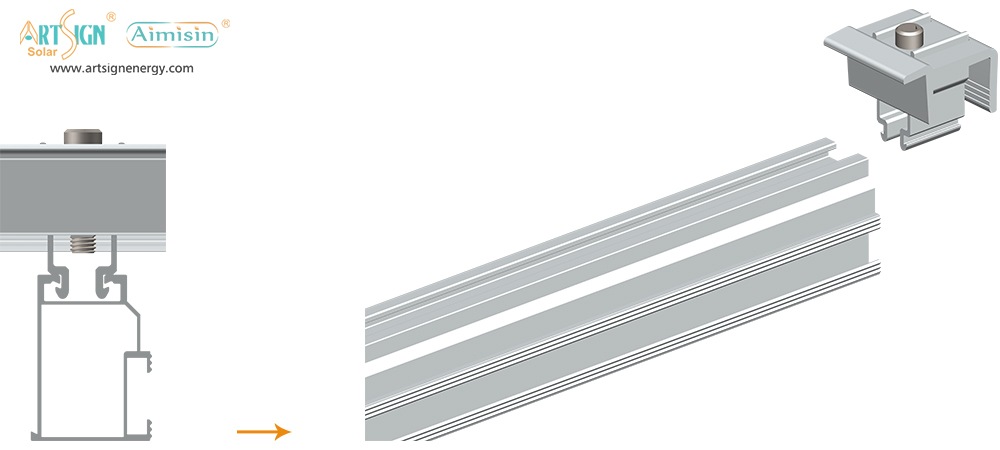

Mid clamp fix to the CR clamp

ART SIGN end clamps solar panels AS-AEC-01B

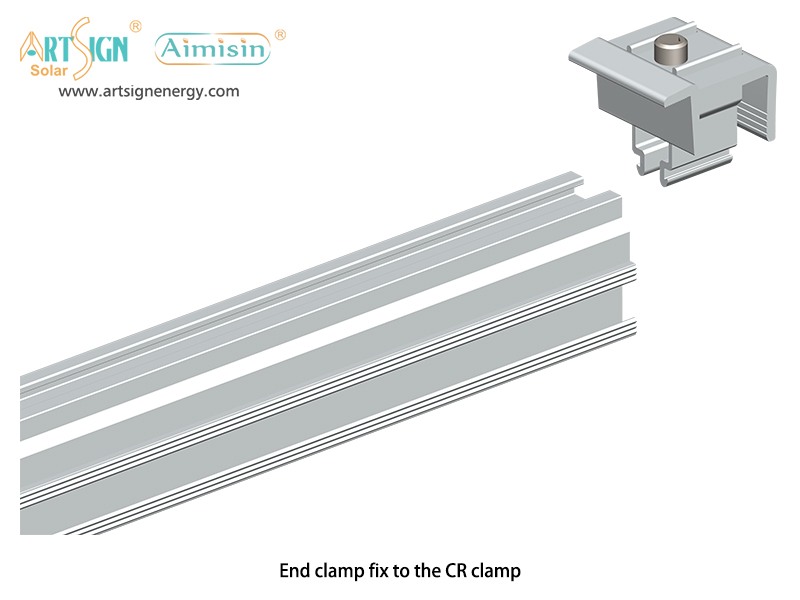

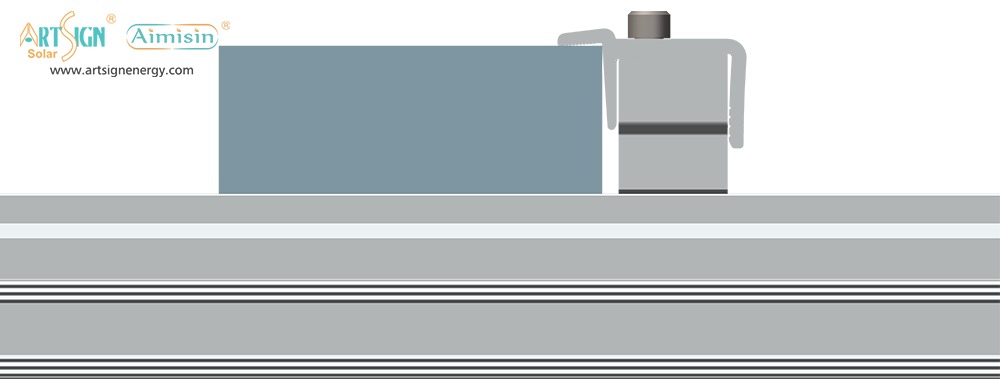

End clamp fix to the CR clamp

ART SIGN solar panel clamps

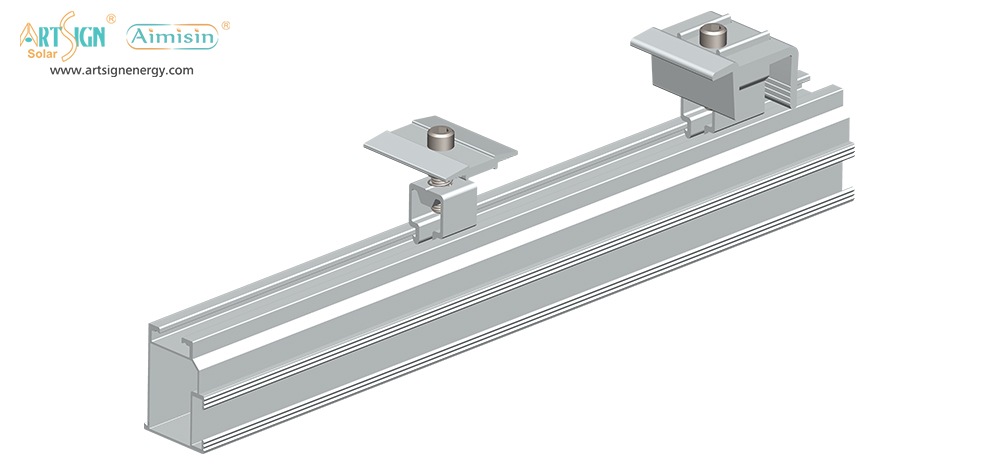

CR rails with mid and end clamp

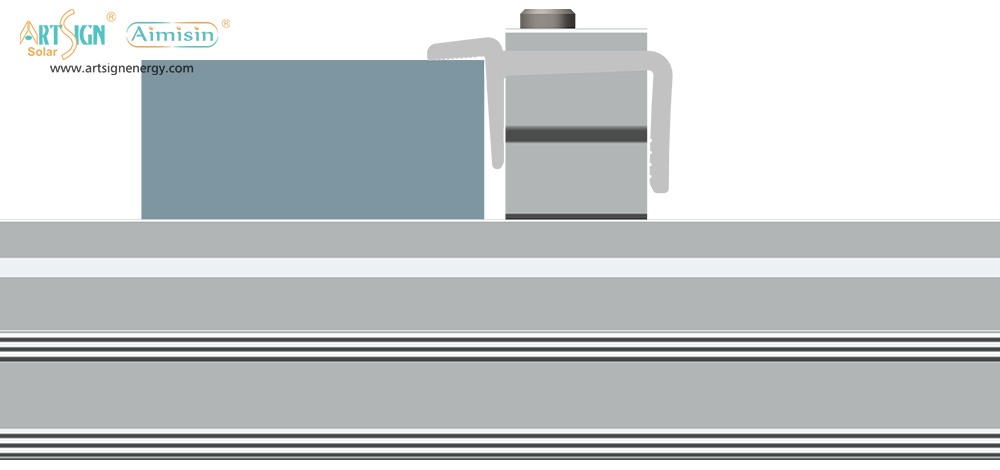

Fast and simple installation, precise adjust height for roofs.

ART SIGN end clamps solar panels AS-AEC-01B

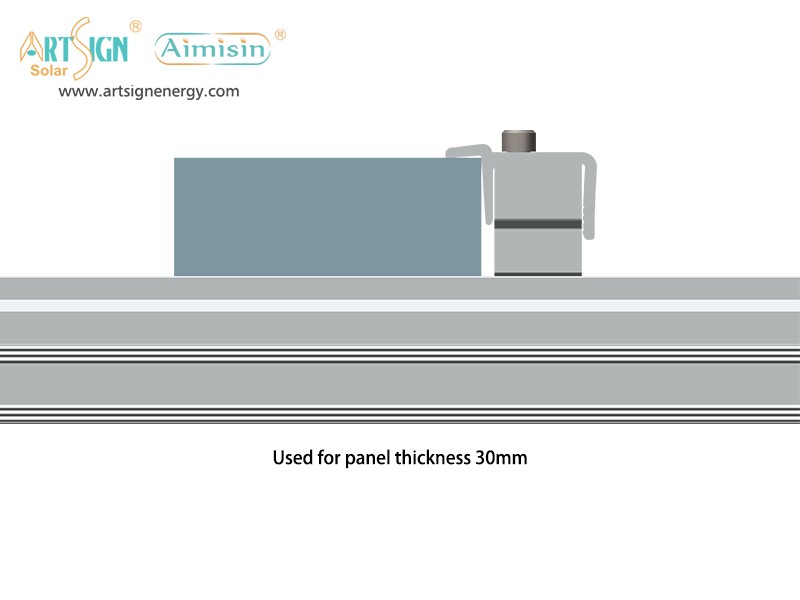

Used for panel thickness 30mm

ART SIGN end clamps solar panels AS-AEC-01B

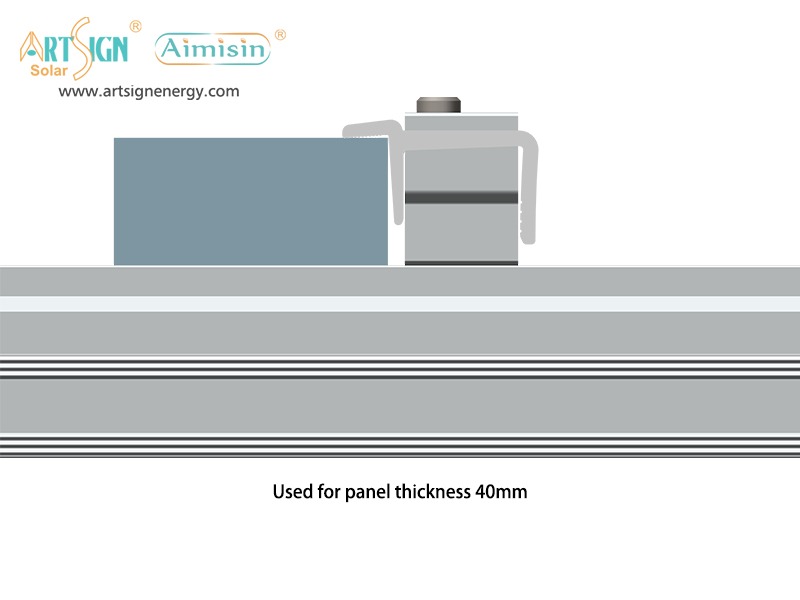

Used for panel thickness 40mm

Selling Units

per set

Package Type

cartons, plywood pallets / cases

Lead Time：

Quantity(Sets)	1 - 5000	5001 - 10000	10001 - 100000	>100000
Est. Time (work days)	1 - 3	3 - 7	7 - 15	To be negotiated

ART SIGN solar mounting related accessories

Click to see more Module clamp.


AS-AMC	AS-AEC	AS-AMC-01B	AS-AEC-01B
