New design easy installation solar aluminum mini rail AU-R01

New design easy installation solar aluminum mini rail AU-R01

Customized solar aluminum mini rail for various size solar panel,light weight and good quality with cost effective cost.

Item NO.:
AS-AU-R01
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

New design easy installation solar aluminum mini rail AU-R01

Design Features

— Compatible with most types of solar panels.
— Scalable design that allows you to add more solar panels as needed.
— High strength, Anti-UV, high frequency insulation.
— Length can be customized.

Mode Number	AS-AU-R01	Brand Name	ART SIGN

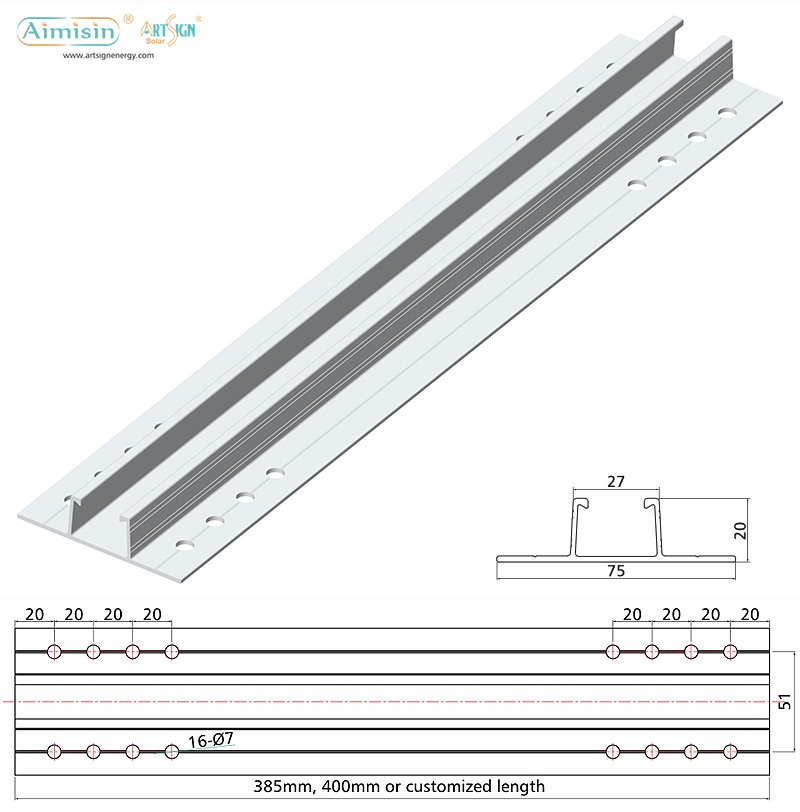

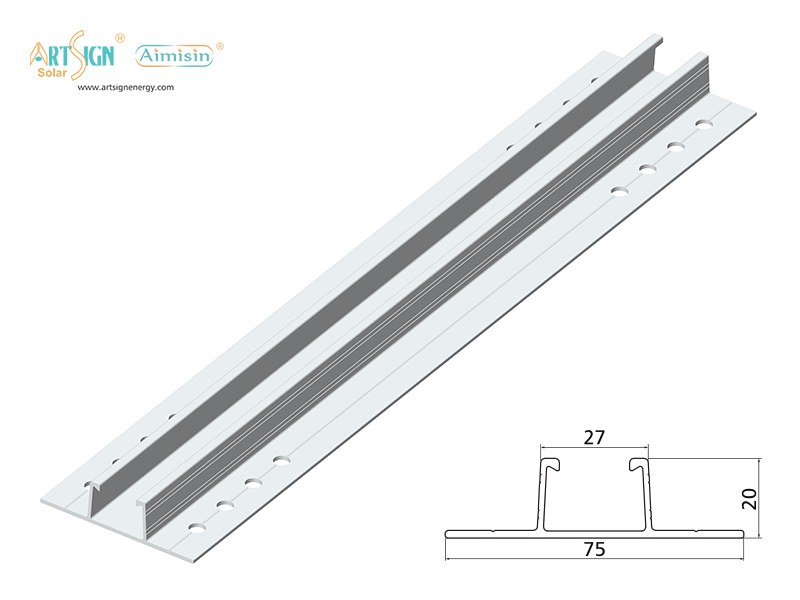

Specs	W75*H20, customized length	Material	Aluminum 6005-T5
Application	solar panel metal tin roof mount system	Packing	wooden case
Keyword	customized aluminum solar short rail	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

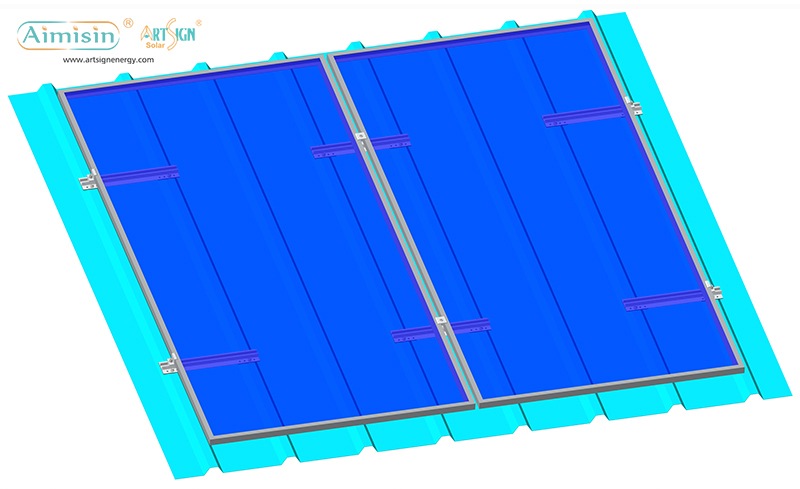

Rail-less Mount Is designed for any type of trapezoid and corrugated metal sheet roof.

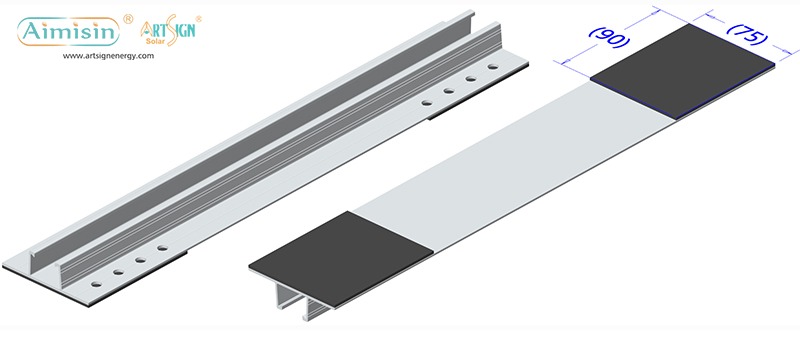

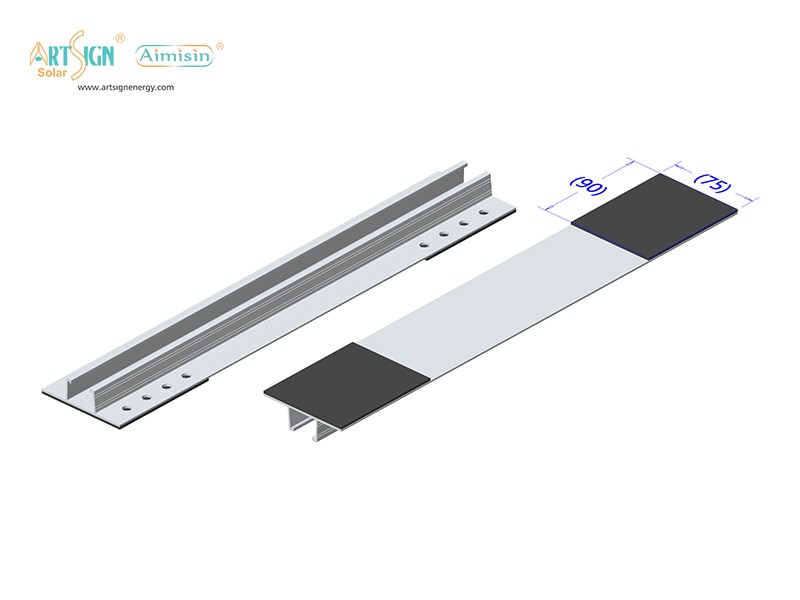

Glued with EPDM 90×75mm

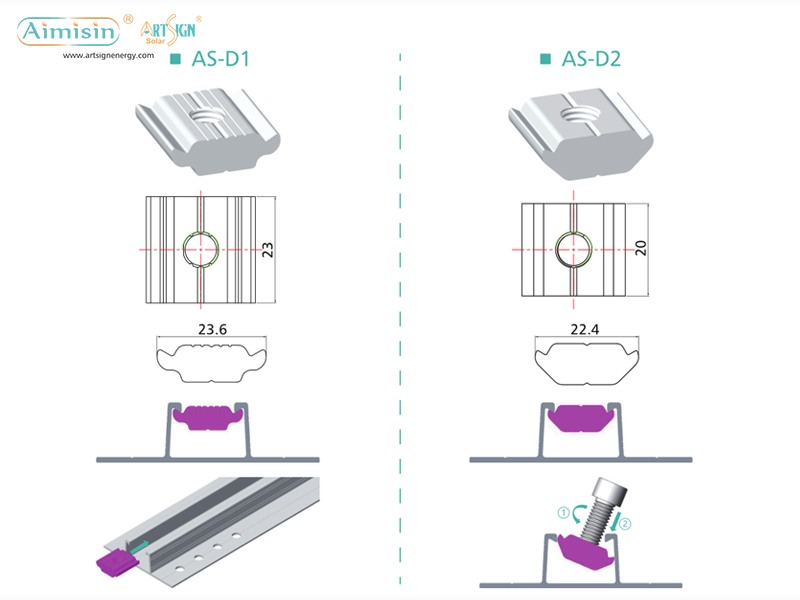

Two kinds of nuts for option, D1 can be only slid in from the sides, can’t be inserted into any position of the mini rail.

Rail-less Mount Is designed for any type of trapezoid and corrugated metal sheet roof.

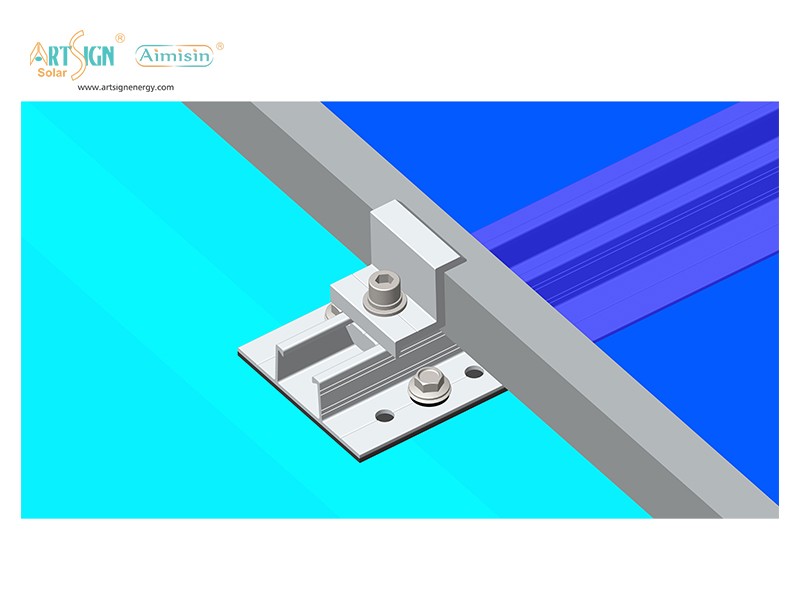

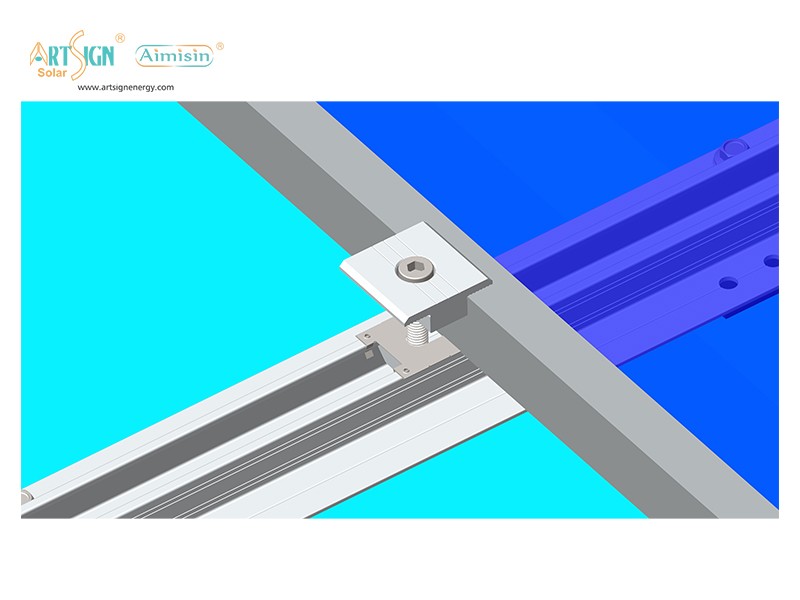

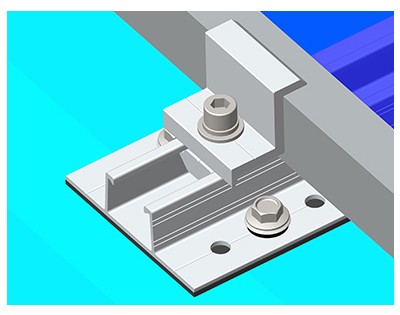

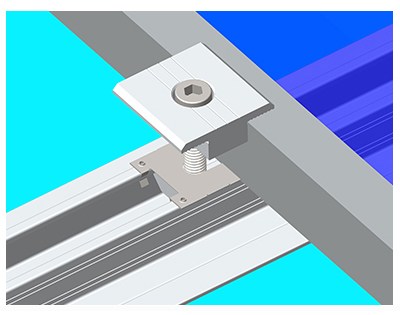

Mid Clamp	End Clamp

ART SIGN solar mounting related accessories

Click to see more Solar mini rail.


AS-R-15	AS-R-15C	AS-DR-07	AS-DR-07B

AS-DR-07C	AS-DR-07E	AS-DR-08	AS-A-DR12

AS-A-R25	AS-A-R26	AS-AU-R01

Leave Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Subject : New design easy installation solar aluminum mini rail AU-R01

Tags :

Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

Contact

best sellers

Related products

Mini rail for solar panel AS-R-15#

Mini Rail for solar panel AS-R-15 is for solar metal roof mounting made of anodized aluminum, simple and cost effective solution

Mini rail for solar roof mounting DR-07#

Mini Rail for solar metal roof mounting made of anodized aluminum, simple and cost effective solution

Aluminum railess solar roof mounting system

Solar mini rail is railess solar mounting solution. Design Feature: --Easier and quicker installation. --Adjustable solar module clamps which suied for solar panel thickness 30-50mm. --More economical price.

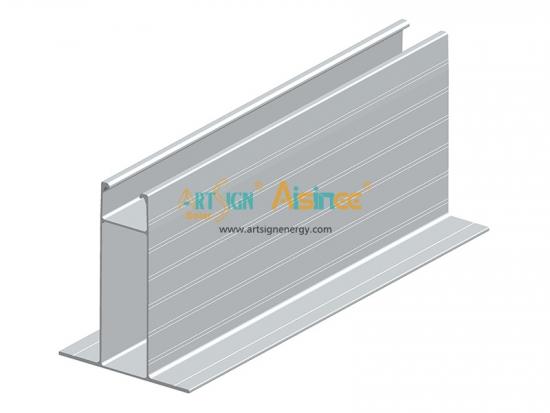

Railless Roof System Solar Mounting DR 07B#
