Art Sign Solar Structure Mini Rail High Profile XR07

Solar mini rail high profile the XR Rail 07# is ideal for solar panel roof mounts. This rail comes in various heights to accommodate different strength requirements.
  • Item NO.:

    AS-XR-07
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western union,
  • Surface Treatment:

    Anodized

  • Product Detail

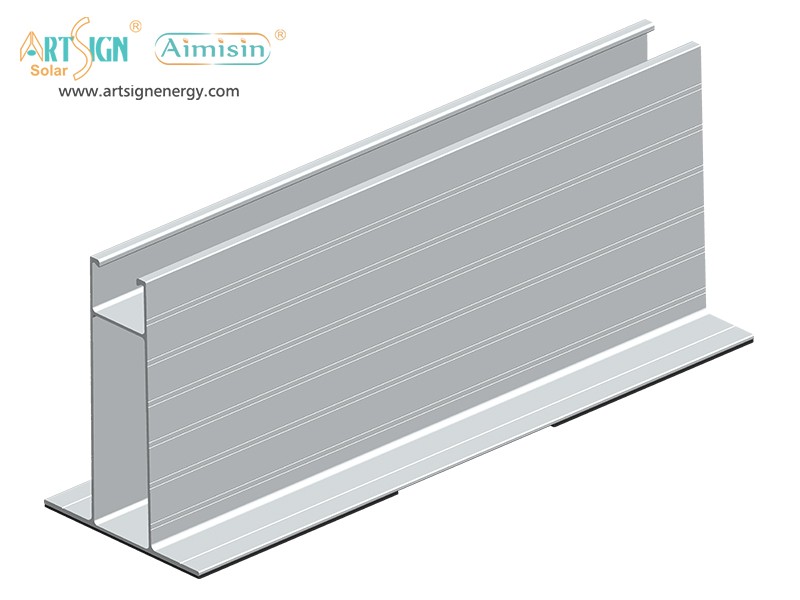

Art Sign Solar Structure Mini Rail High Profile XR07


Design Features

— Aluminum profiles are ideal for both mini rail installations and long railing systems.
— Neat design for easier and quiker roof racking installation.

Mode Number

  AS-XR-07

Brand Name

  ART SIGN
Specs

  W75*H85mm

Material

  Aluminum 6005-T5

Application
   solar roof mounting system Packing
  wooden pallet
Keyword
  China factory direct sale solar mini rail Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

ART SIGN solar mini rail AS-XR-07

Customized height and length of solar rail XR07 is acceptable.


Three adhesive methods


ART SIGN solar mini rail AS-XR-07
ART SIGN solar mini rail AS-XR-07

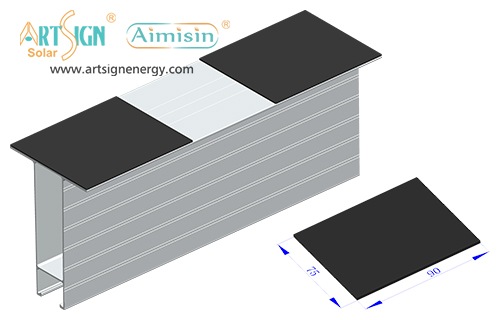

Method 1: EPDM rubber pad (75x90mm) on the bottom.

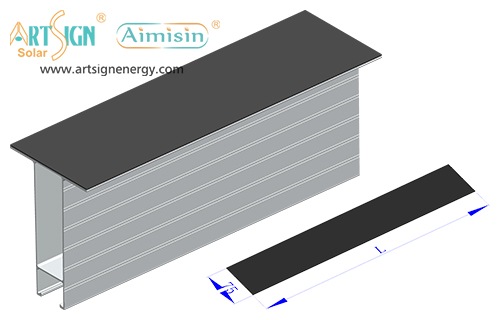

Method 2: A whole strip of EPDM rubber pad (width 76mm)
fully covered the bottom of the mini rail

ART SIGN solar mini rail AS-XR-07

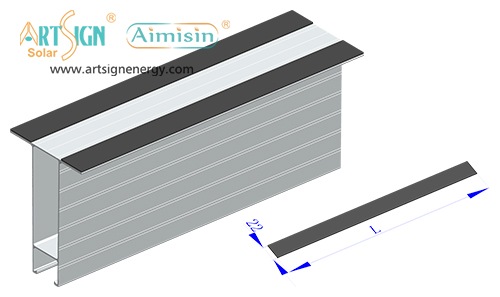

Method 3: Stick two EPDM rubber pads (width 22mm) on
the bottom of the mini rail.



Product Description

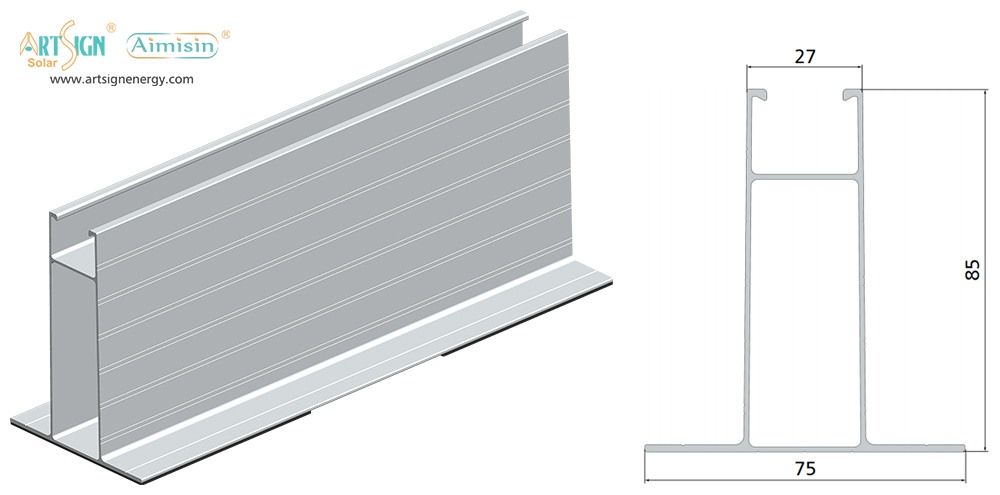

ART SIGN solar mini rail AS-XR-07 size

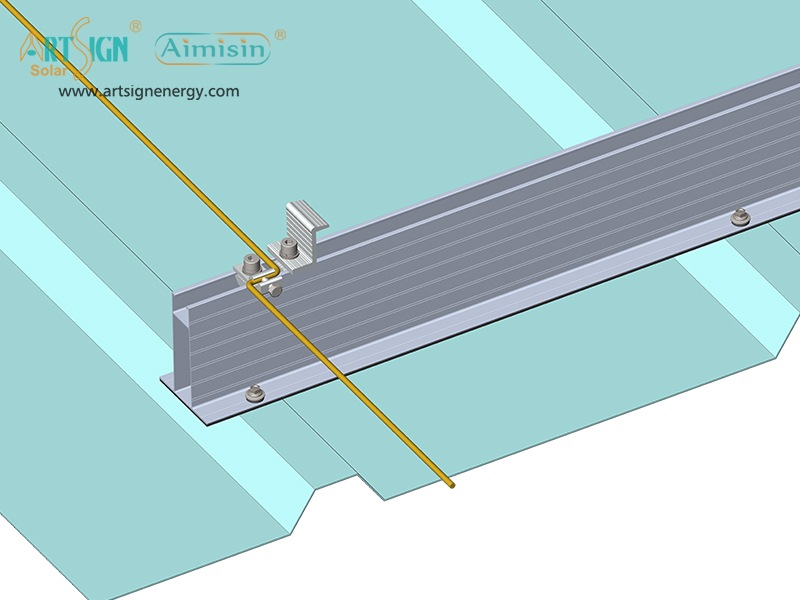

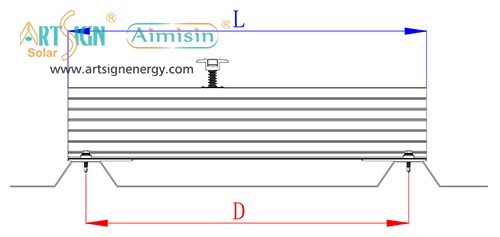

ART SIGN solar mini rail AS-XR-07 install
The length of mini rail is customized according to
the roof ribs distance.

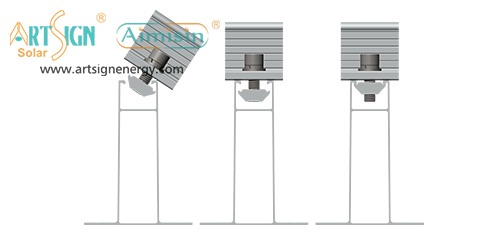

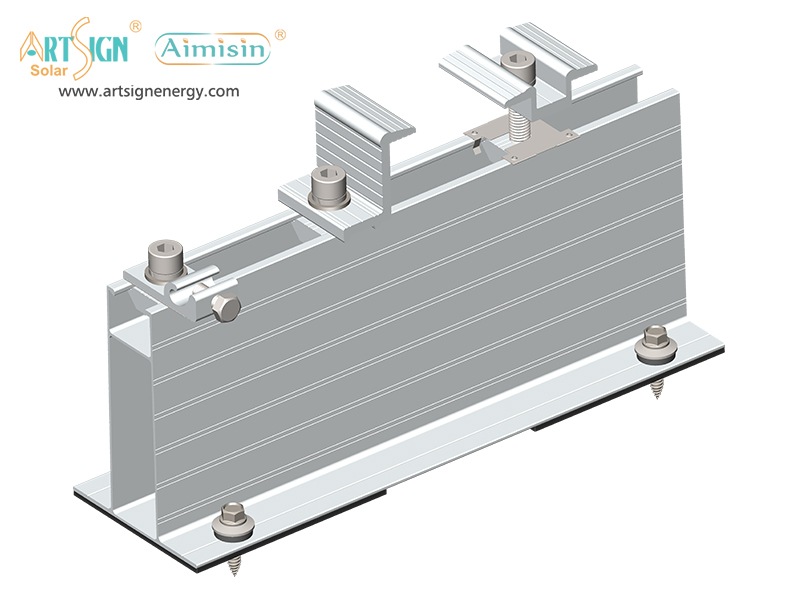

Solar mid clamp and end clamp can be
installed on the top groove.

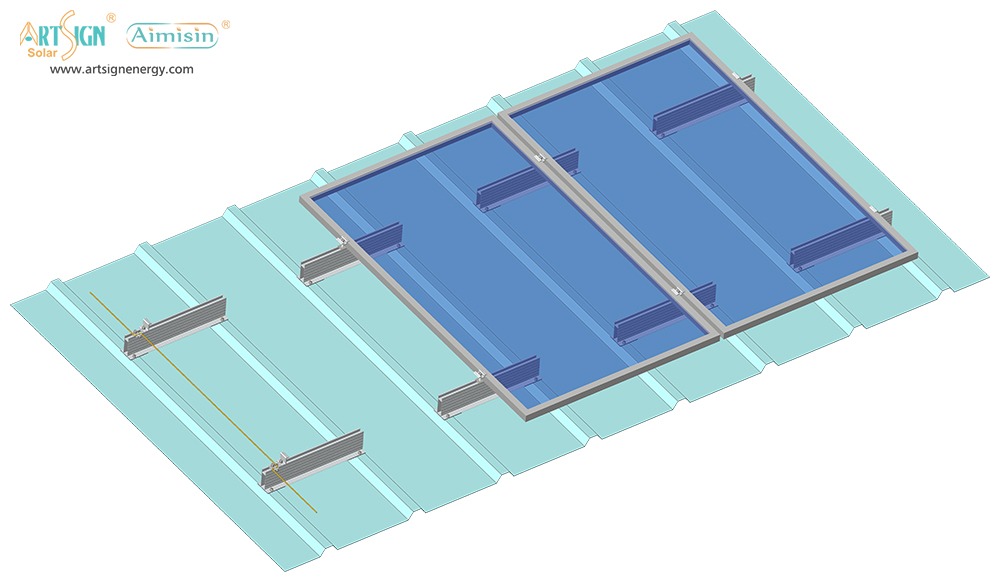

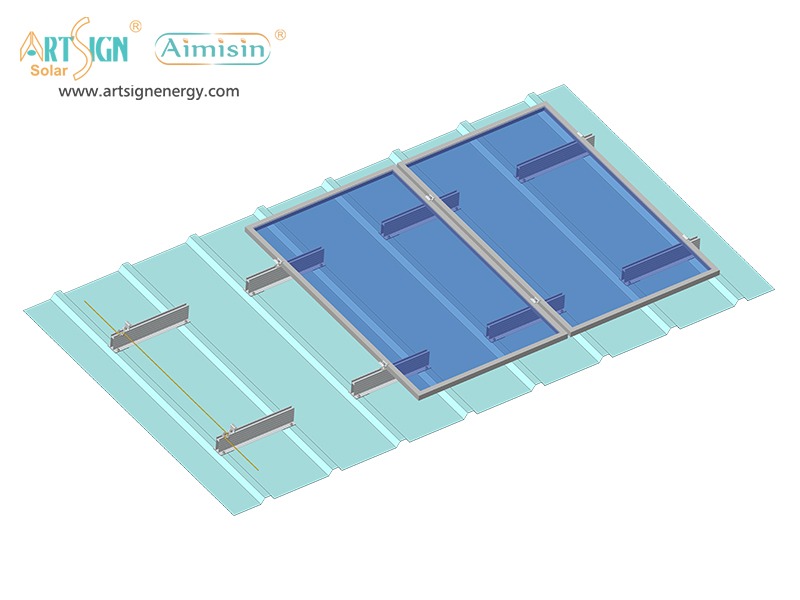

It can be used as a mini rail for solar roof mounting.

ART SIGN solar mini rail AS-XR-07

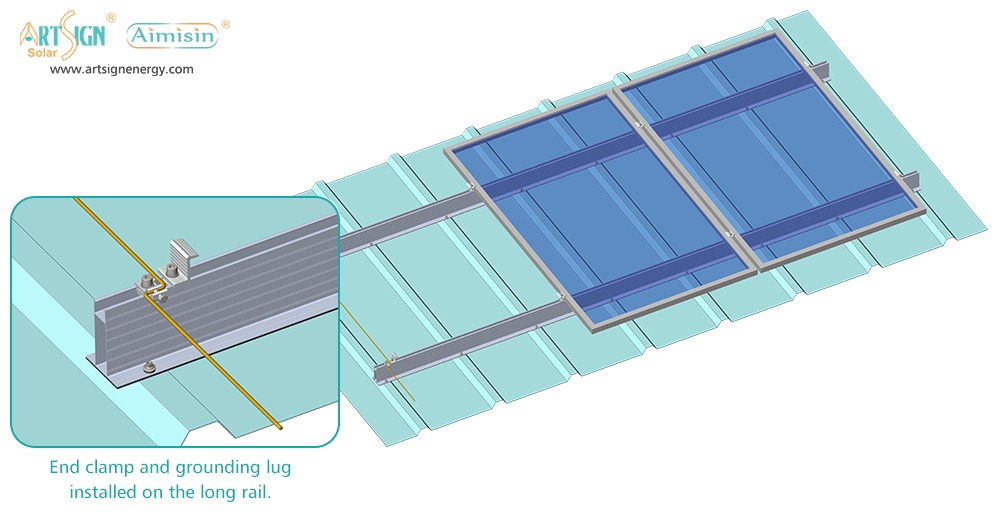

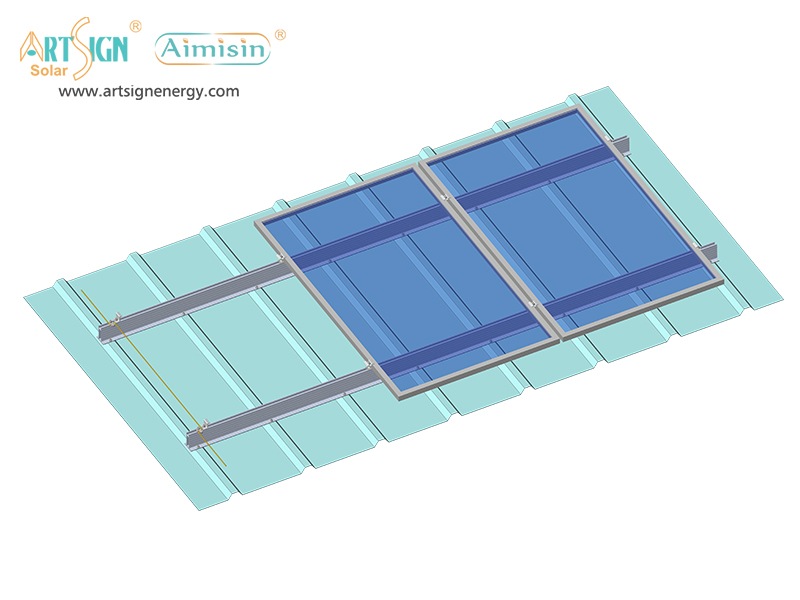

It can also be adapted for long rails on roof mounts.

ART SIGN solar mini rail AS-XR-07
