Aluminum railess solar roof mounting system

Aluminum railess solar roof mounting system

Solar mini rail is railess solar mounting solution. Design Feature: --Easier and quicker installation. --Adjustable solar module clamps which suied for solar panel thickness 30-50mm. --More economical price.

Item NO.:
AS-A-R25
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight
Surface Treatment:
natural or black

Inquiry now

Product Detail

Aluminum railess solar roof mounting system

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN

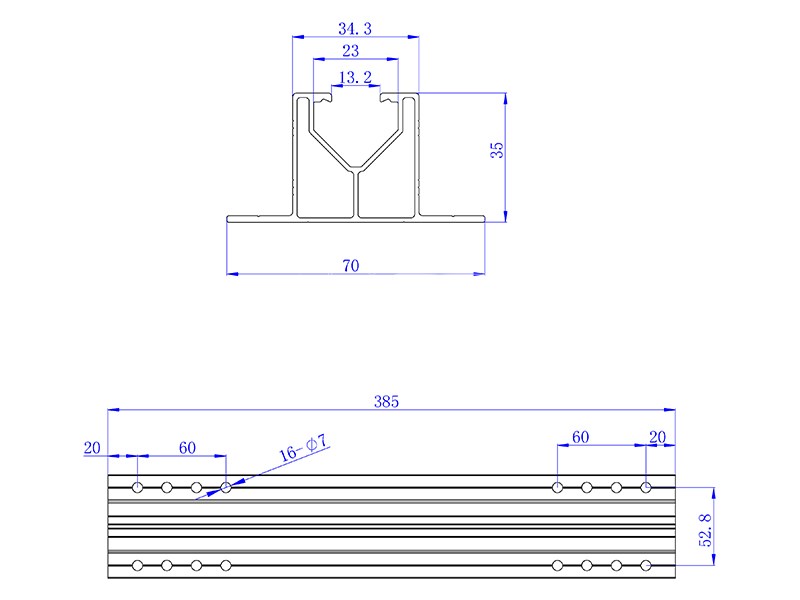

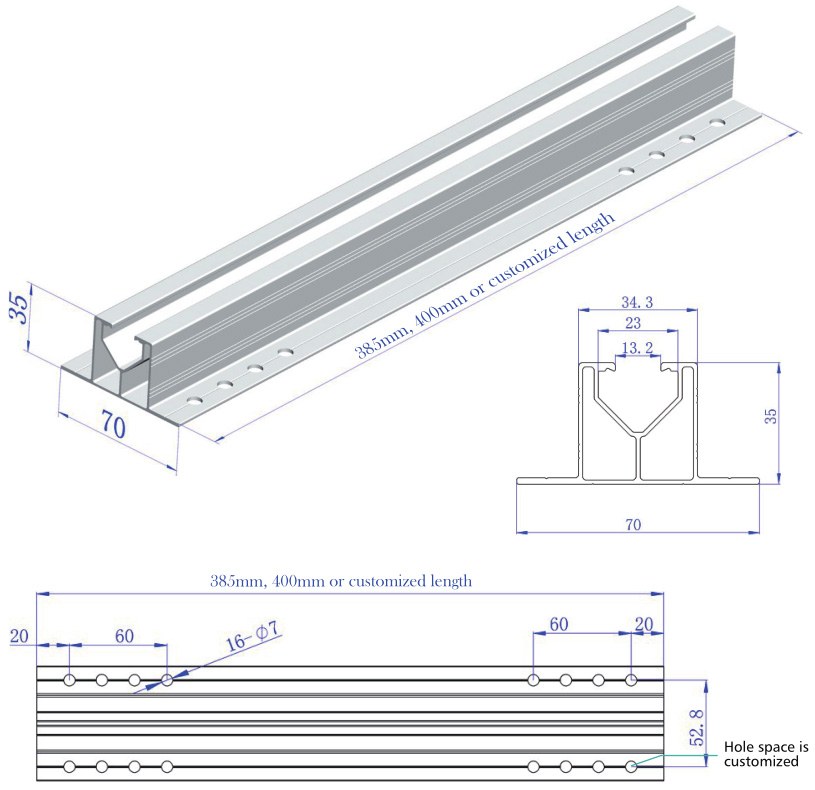

Mode Number	AS-A-R25	Specs	L385W70.00H35.00mm, customized length
Material	Aluminum 6005-T5	Application	solar panel roof mounting system
Surface treament	Anodized above 10um	Packing	Pallet or carton
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	solar short rail, solar mini rail	Service life:	25 years
Quality Warranty	20 years

Selling Units

per pcs

Package Type

Inner packing: carton ;

Outer packing: wooden case

Lead Time：

Quantity(Sets)	1 - 1000	1001 - 5000	5001 - 10000	>10000
Est. Time (working days)	1-3	3-10	10-15	To be negotiated

Aluminum railess solar roof mounting system

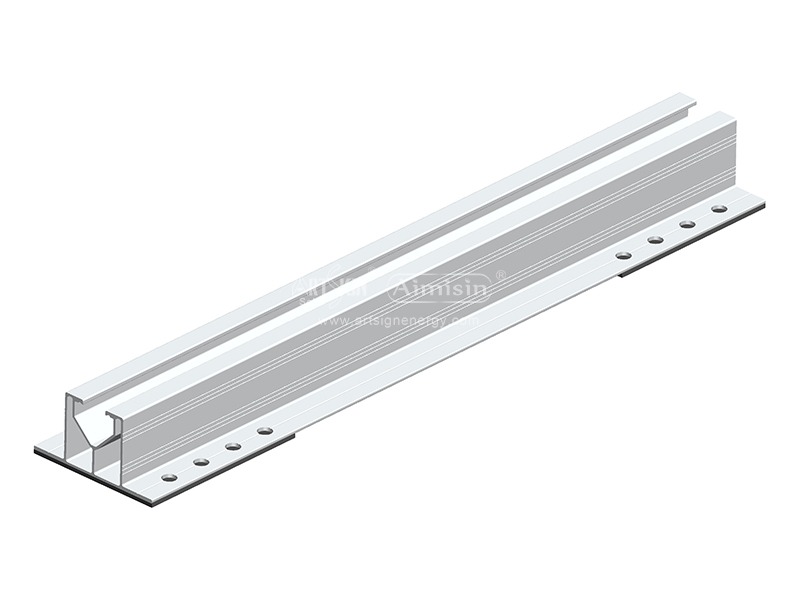

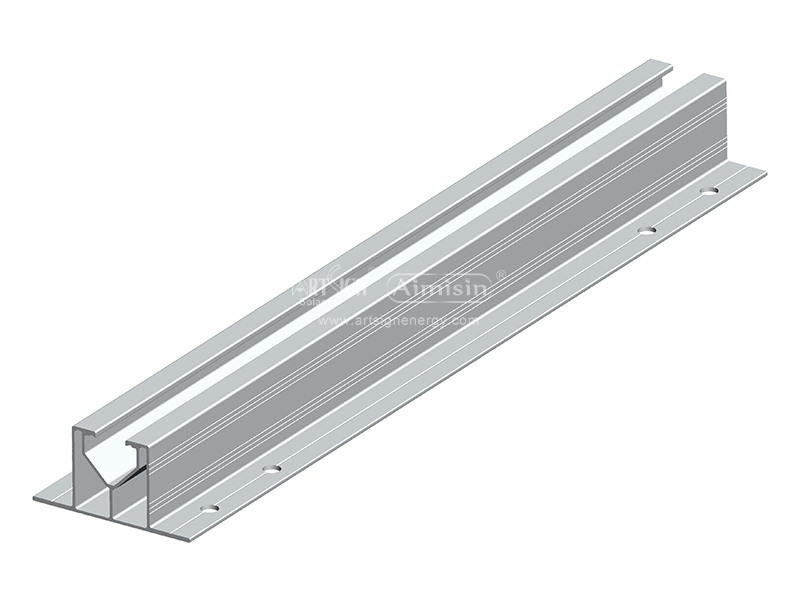

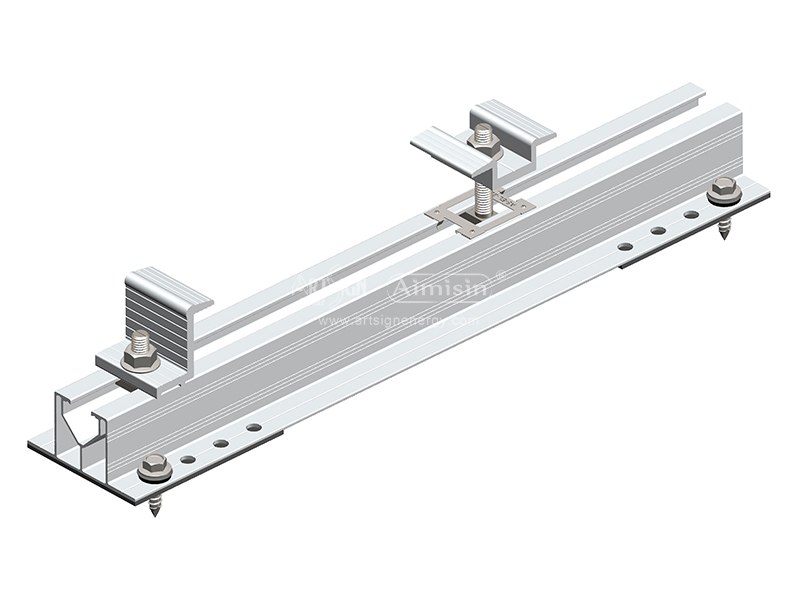

Solar mini rail is railess solar mounting solution.
Design Feature:
--Easier and quicker installation.

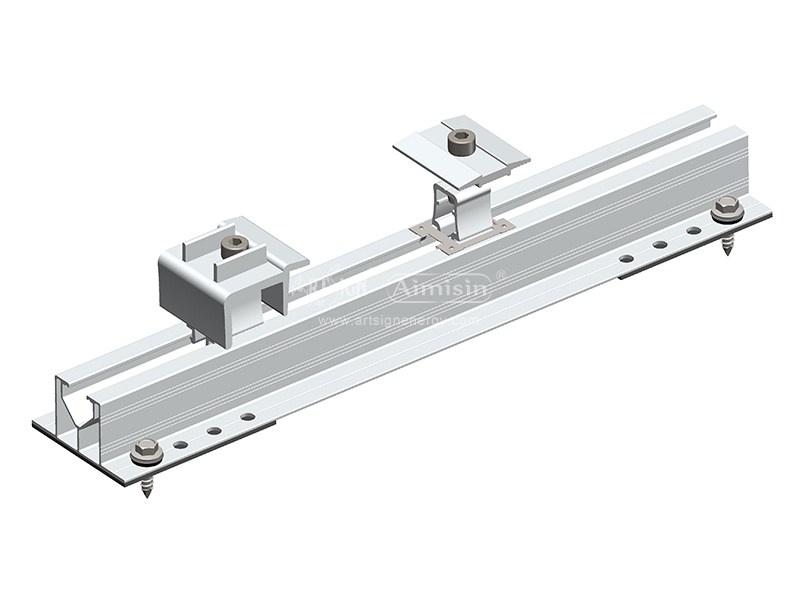

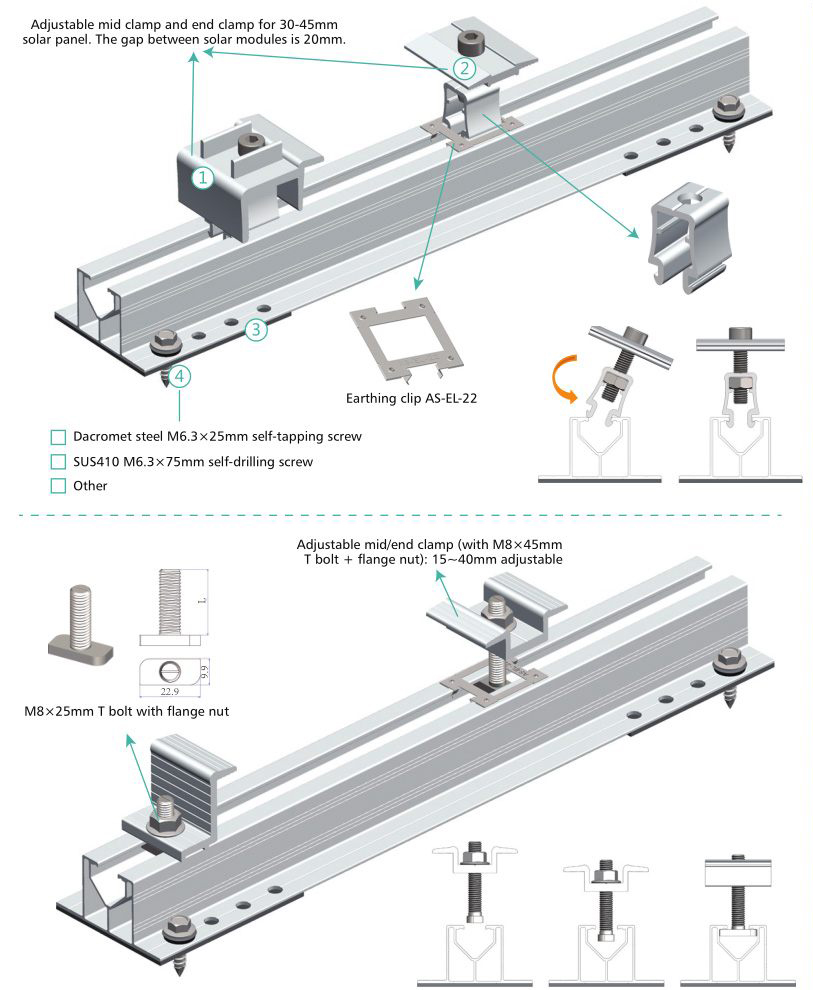

--Adjustable solar module clamps which suied for solar panel thickness 30-50mm.
--More economical price.

Category : Aluminum profile

Product Overview

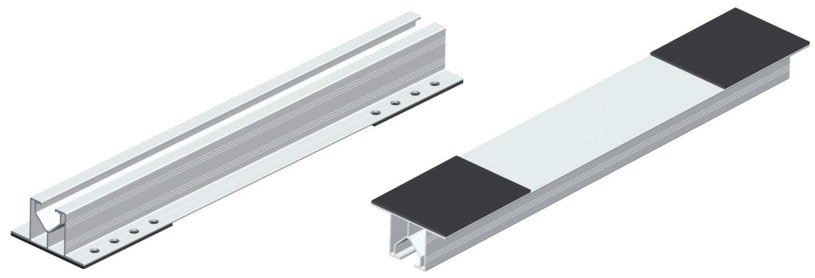

1. Glued with EPDM 90×70mm

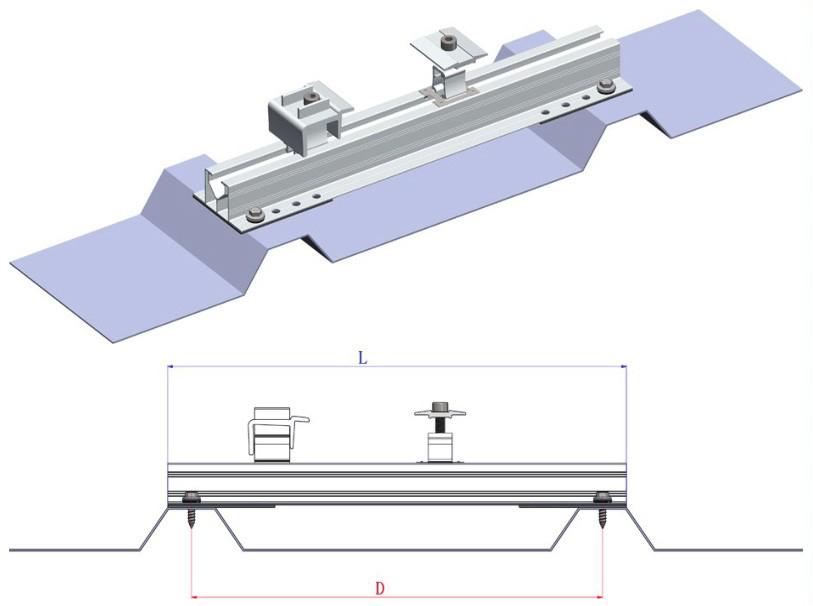

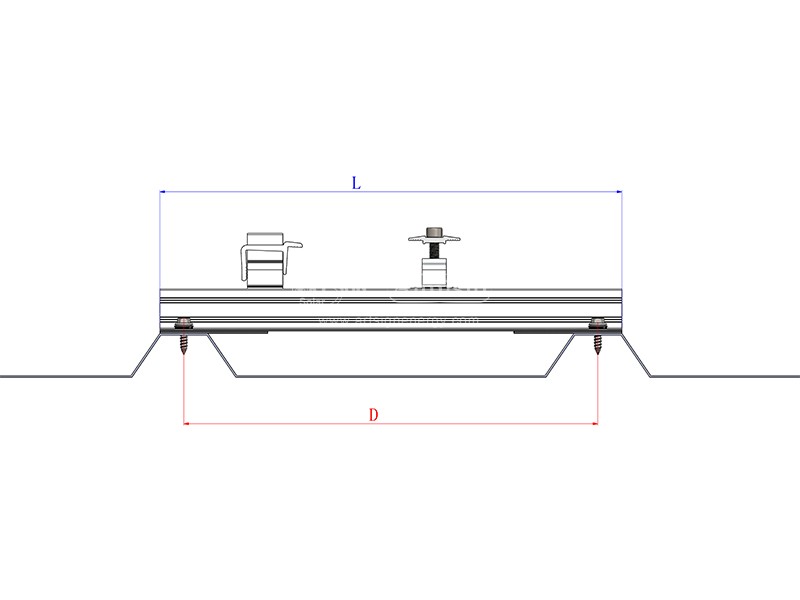

2. The mini rail length L can be customized according to the trapezoidal roof rib spacing D

Product Description
