China PV rack system concrete ground mount solar panel mounting structures

Anodized aluminum base kit for solar rack mount concrete solution.

Item NO.:
AS-OB9
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

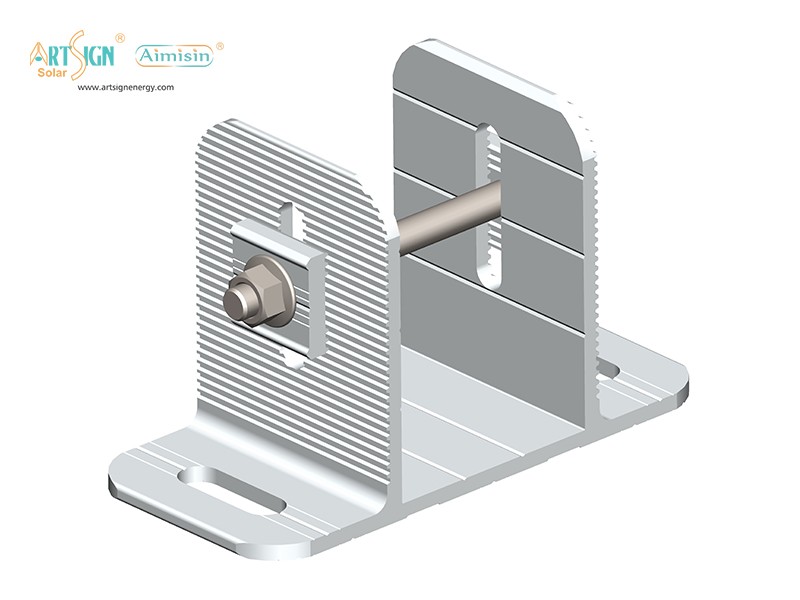

China PV rack system concrete ground mount solar panel mounting structures

Design Features
— Can be pre-assembled with the basis structure as the front leg base kit.
— Adjustable height with the oval hole.

Mode Number	AS-OB9	Brand Name	ART SIGN
Specs	L80W172.4H105mm	Material	Aluminum 6005-T5
Application	Solar ground mounts on concrete base	Packing	carton
Keyword	OEM top solar mounting manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

ART SIGN aluminum solar PV mount

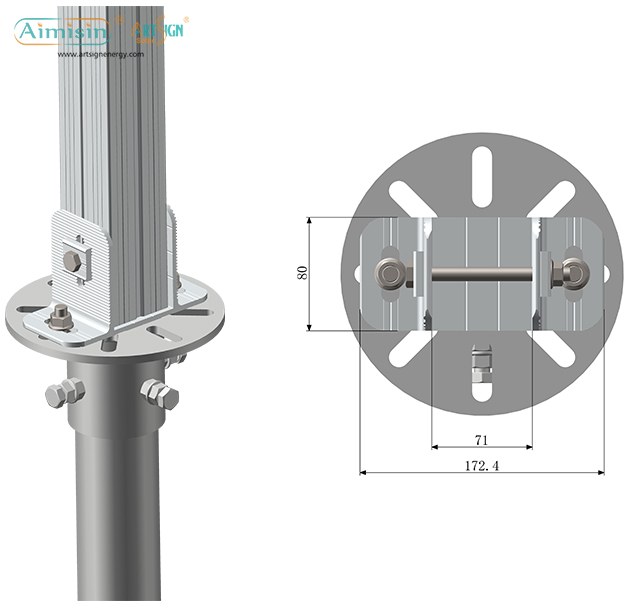

Using as open base of front leg, is pre-assembled to the basis structure.

Application on concrete floor / block, ground screw flange.

ART SIGN aluminum solar PV mount

ART SIGN solar mounting related accessories

Click to see more PV aluminum components.


AS-OB	AS-OB-2	AS-OB3	AS-OB3-2

AS-OB9	AS-OB9-2
