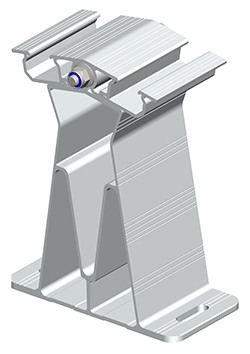

A231# front foot flat roof solar mounting system alumimum structure

A231# front foot is used on 4# flat roof structure with tilt 10°.
  • Item NO.:

    AS-A-A231
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western union,
  • Surface Treatment:

    Anodized

  • Product Detail

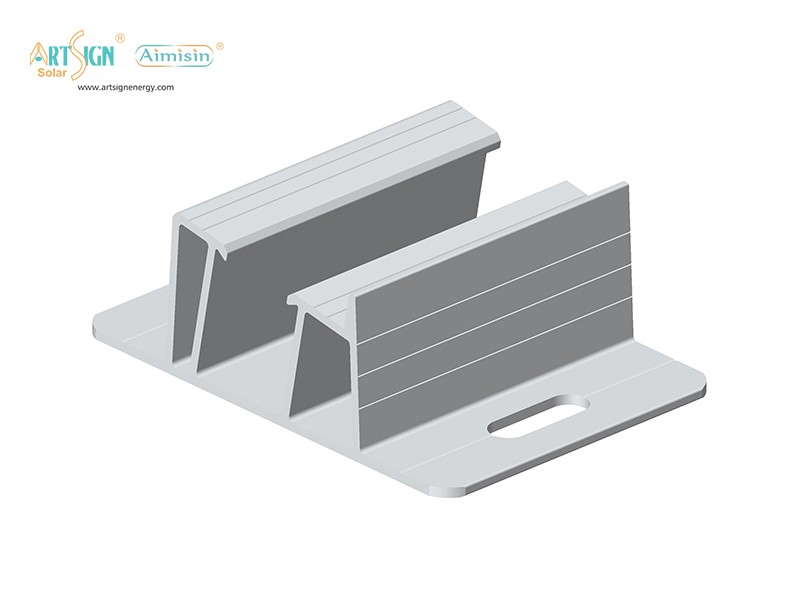

A231# front foot flat roof solar mounting system alumimum structure


Design Features
— Fixed Tilt 10°.
— Stoper part of front foot is easier for your installation.
— Lighter and more economical.

Mode Number

  AS-A-A231

Brand Name

  ART SIGN
Specs
  L=75mm
Material

  Aluminum 6005-T5

Application
   flat roof, tin roof Packing
  carton
Keyword
 China manufacturer of solar flat roof mount Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years

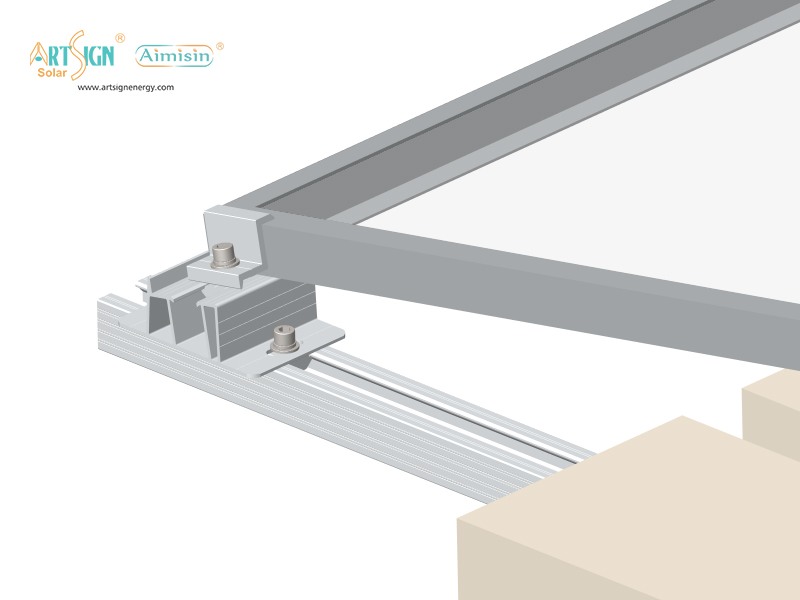

ART SIGN solar mounting details

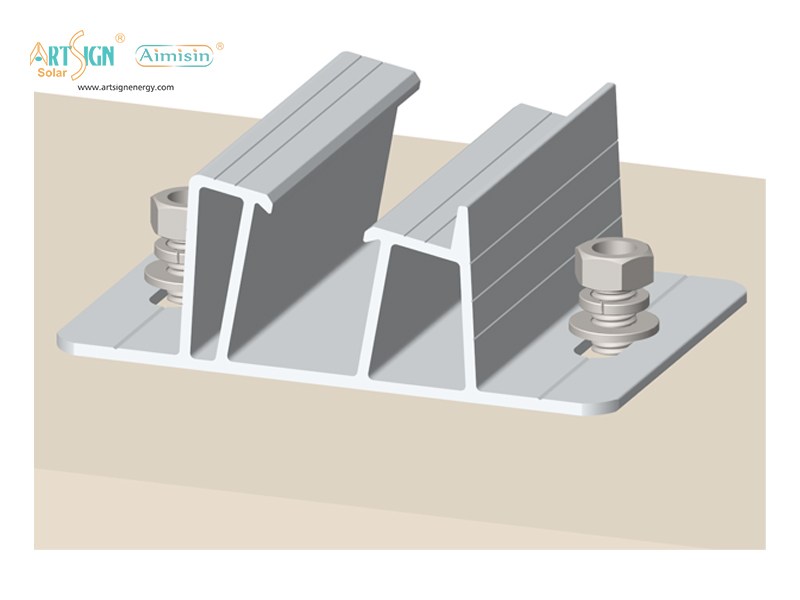

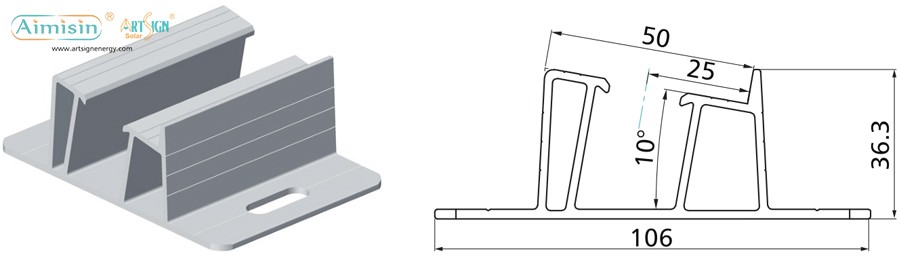

4# Front foot size


flat roof solar mounting system

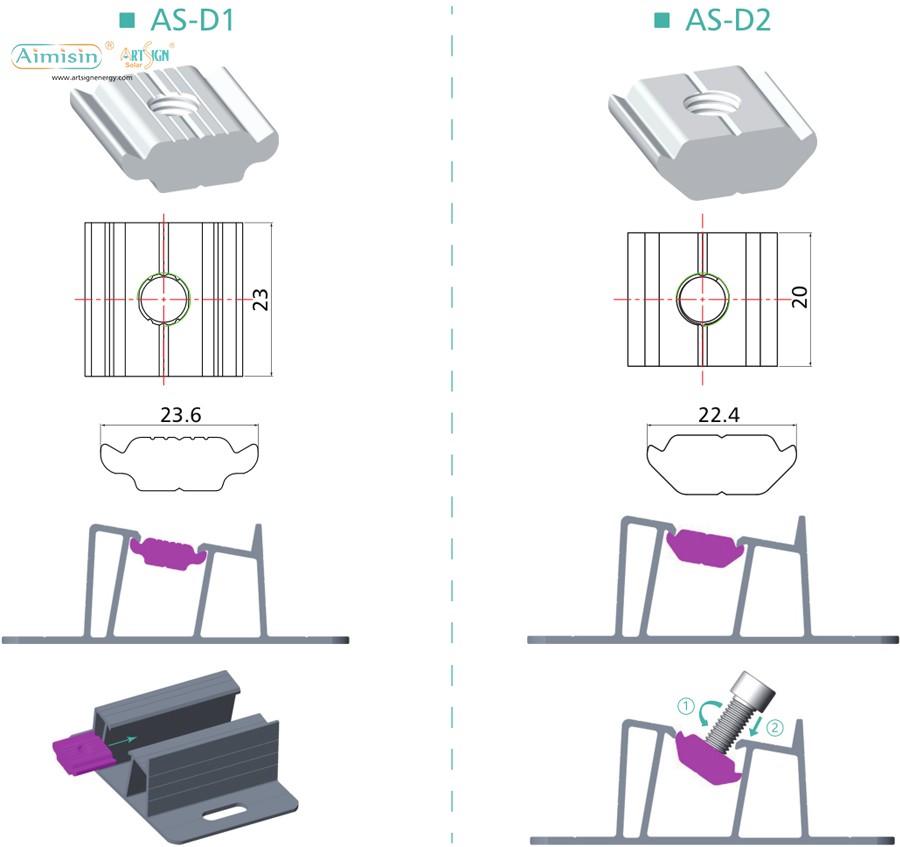

2 typs of D nuts for option, D1 is wider and need to slide from the side of footing into slot while installation; D2 is smaller which can be installed via sliding side or insert in any position of slot.

flat roof solar mounting system
