Art Sign solar PV panel mounting aluminum mini rail SR12#
Design Features
— Solar panels are fixed directly on mini rails or fixed directly by aluminum roof bracket without any long rail.
— Rails are pre-cut in customized length, clamps and pre-assembled.
|
Mode Number |
AS-SR-12 |
Brand Name |
ART SIGN |
|
Specs |
L385*W70*H20mm |
Material |
Aluminum 6005-T5 |
|
Application |
Solar rooftop mounting |
Packing |
Wooden pallet |
|
Keyword |
Customized pv mounting structure mini rail supplier |
Certificate |
ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10 |
|
Service Life |
25 years |
Quality Warranty |
20 years |

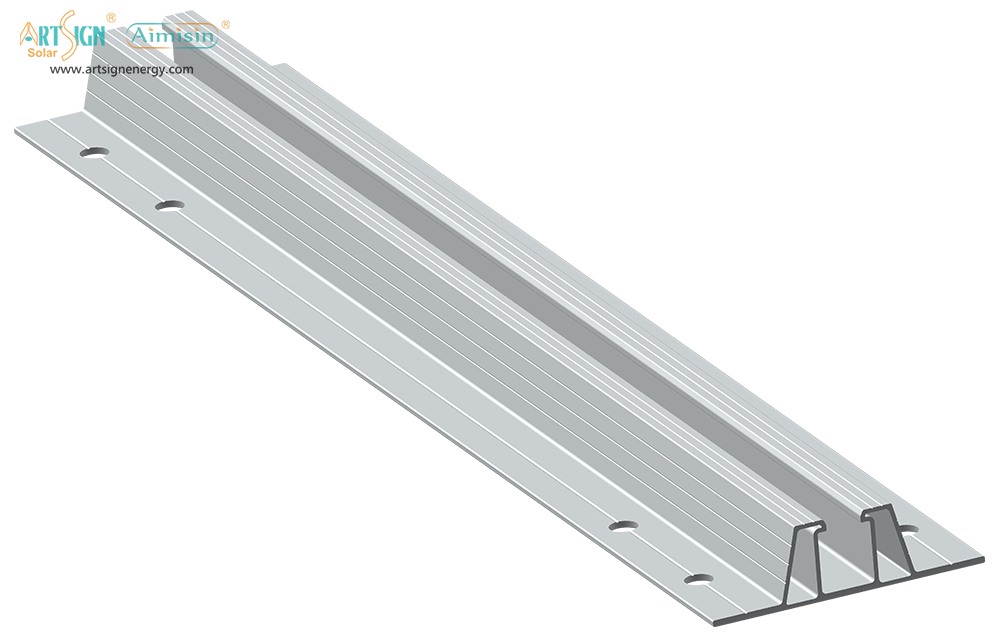

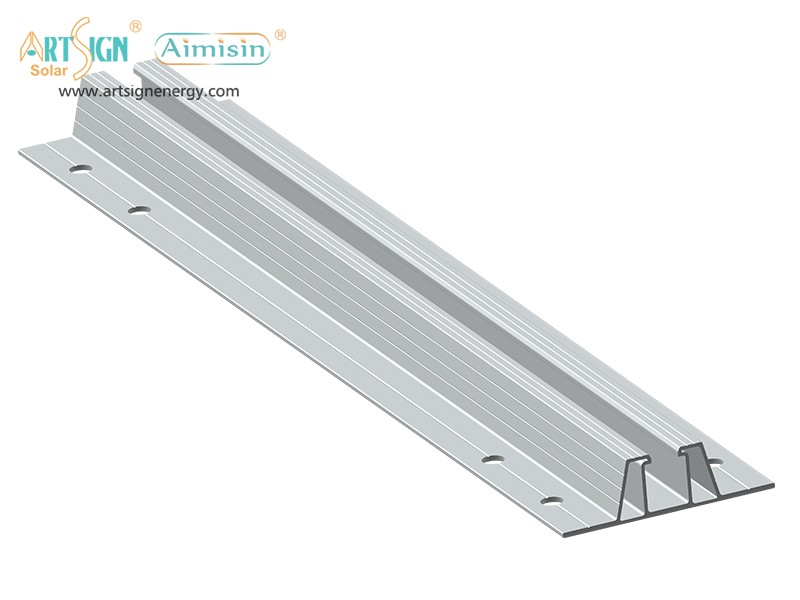

Overview of solar roof mounting profile mini rail AS-SR-12

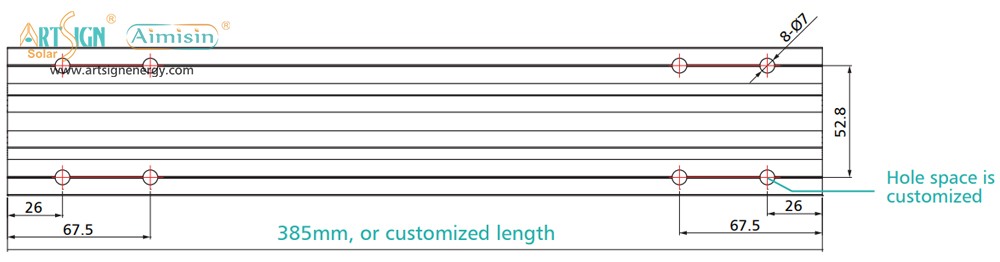

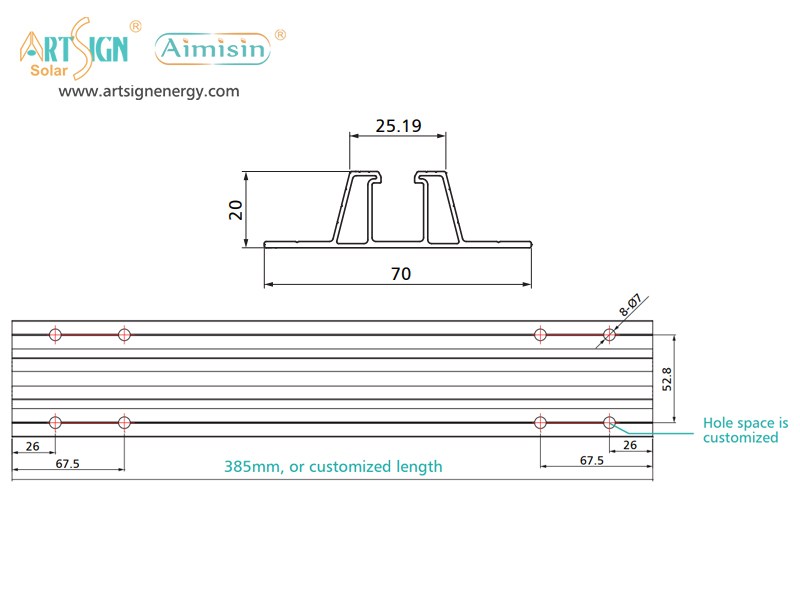

The length of solar SR rail 12# can be customized.
The holes can be made in advance.
Product Description
 |
 |
|

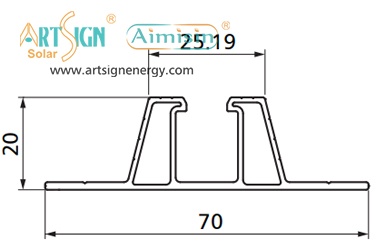

Specs: 70mm width and 20mm height |

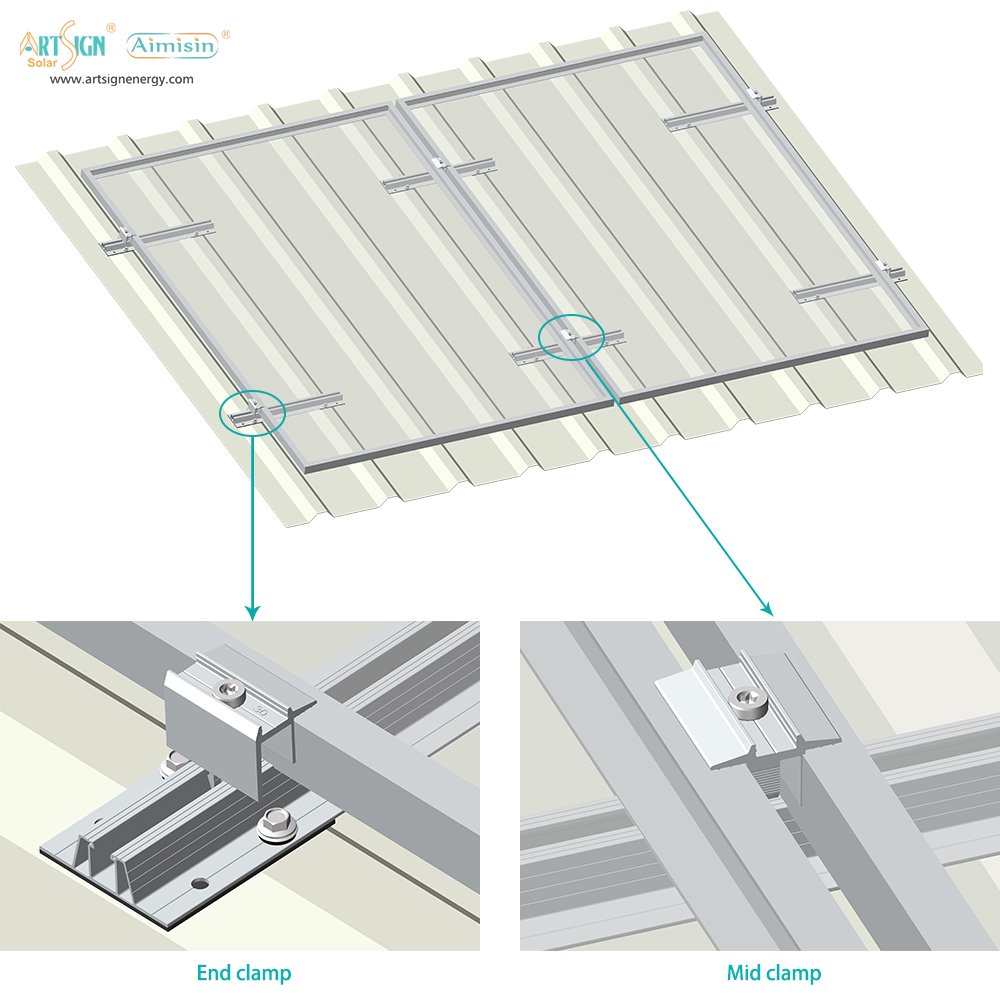

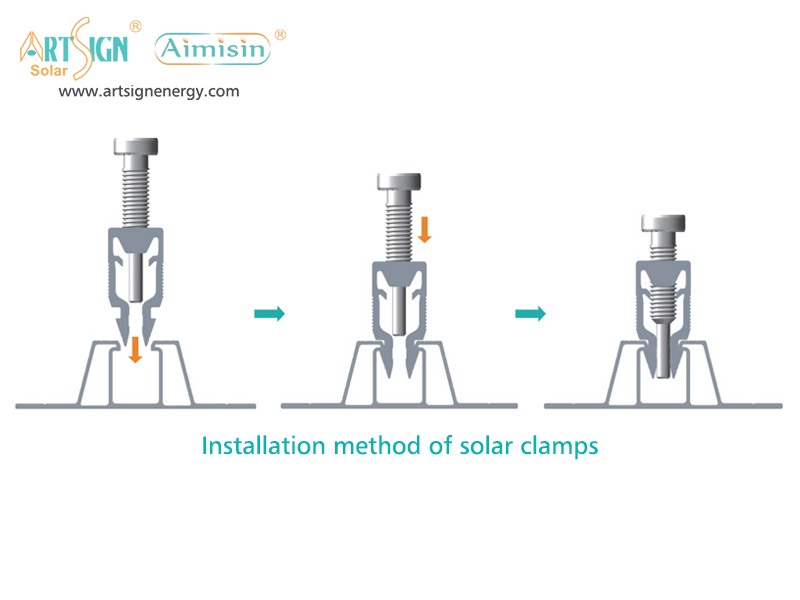

Installation method of solar clamps. |

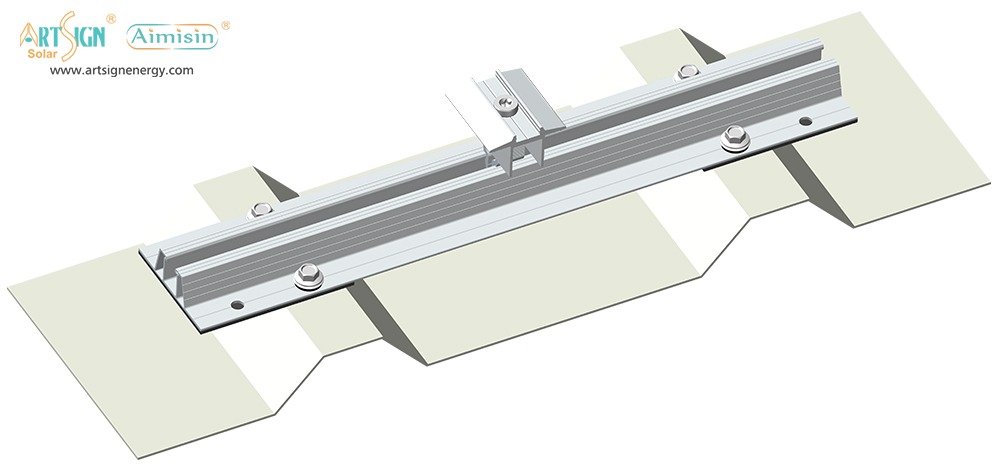

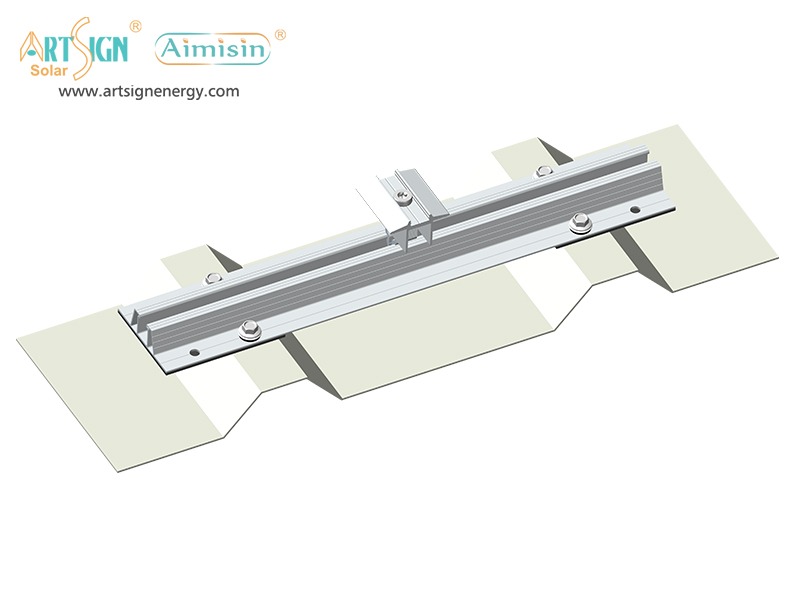

Solar SR rail 12# use as mini solar rail, which save installation time and labor cost.

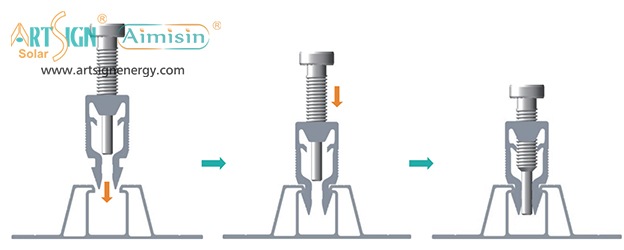

1: Bolts are anti-theft bolt M8*43mm.
2: Mid clamp is suitable for 30-40mm thickness solar panel.
3: End clamp is suitable for 30-40mm thickness solar panel.

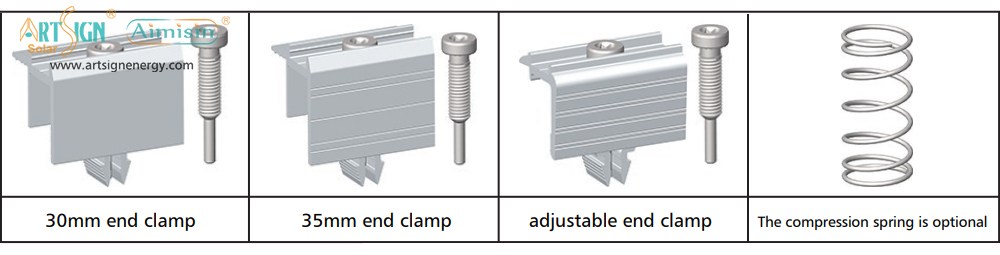

There are 3 kids of solar end clamps for your reference.

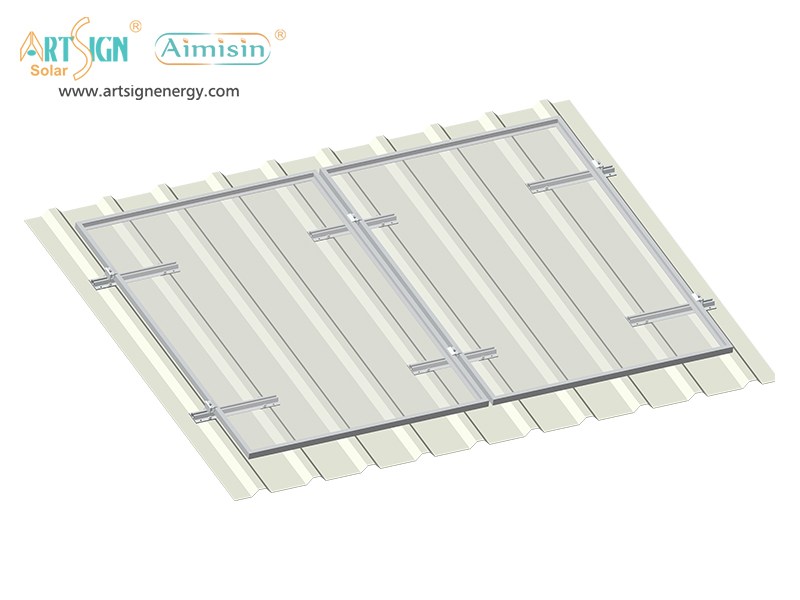

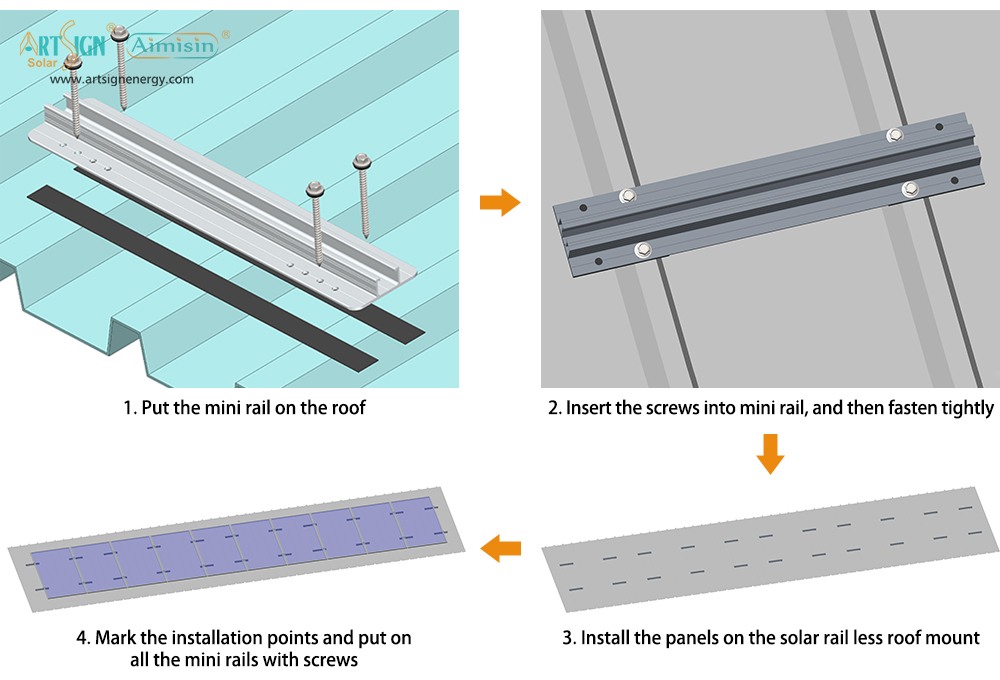

How to install the SR12 solar mini rail？
