Solar Panel Ground Mounting Structure Base Kit

Solar Panel Ground Mounting Structure Base Kit

Anodized aluminum base kit for ground mount concrete block & ground screw based solution.

Item NO.:
AS-OB9-2
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

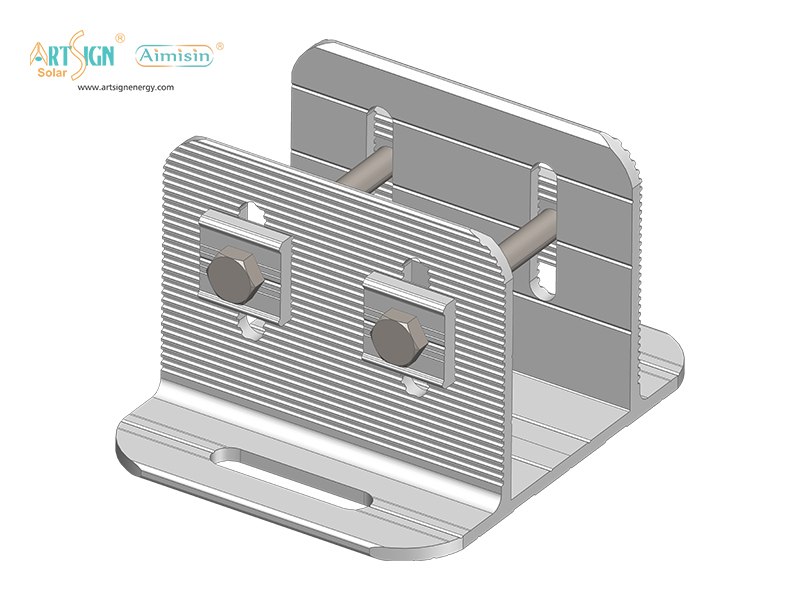

Solar Panel Ground Mounting Structure Base Kit

Design Features
— Can be pre-assembled with the post, save installation time.
— Oval hole design - adjust the height

Mode Number	AS-OB9-2	Brand Name	ART SIGN

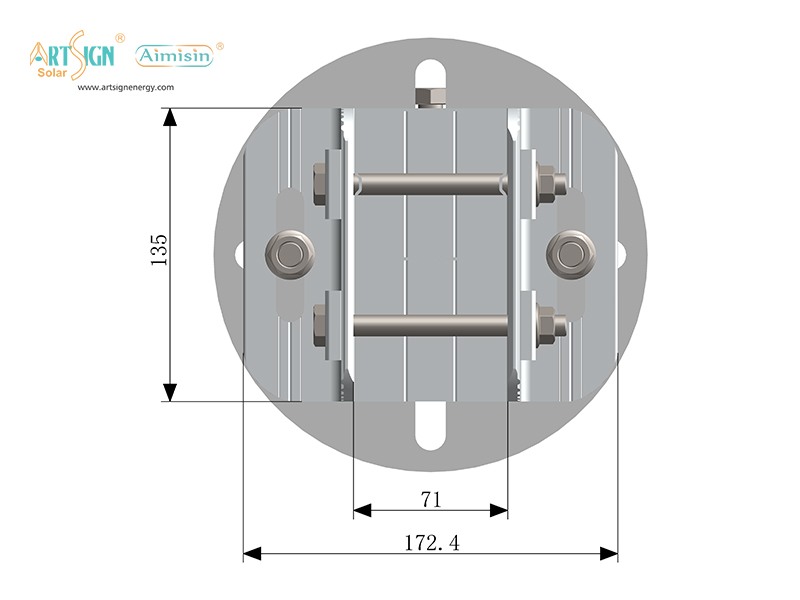

Specs	L135W172.4H105mm	Material	Aluminum 6005-T5

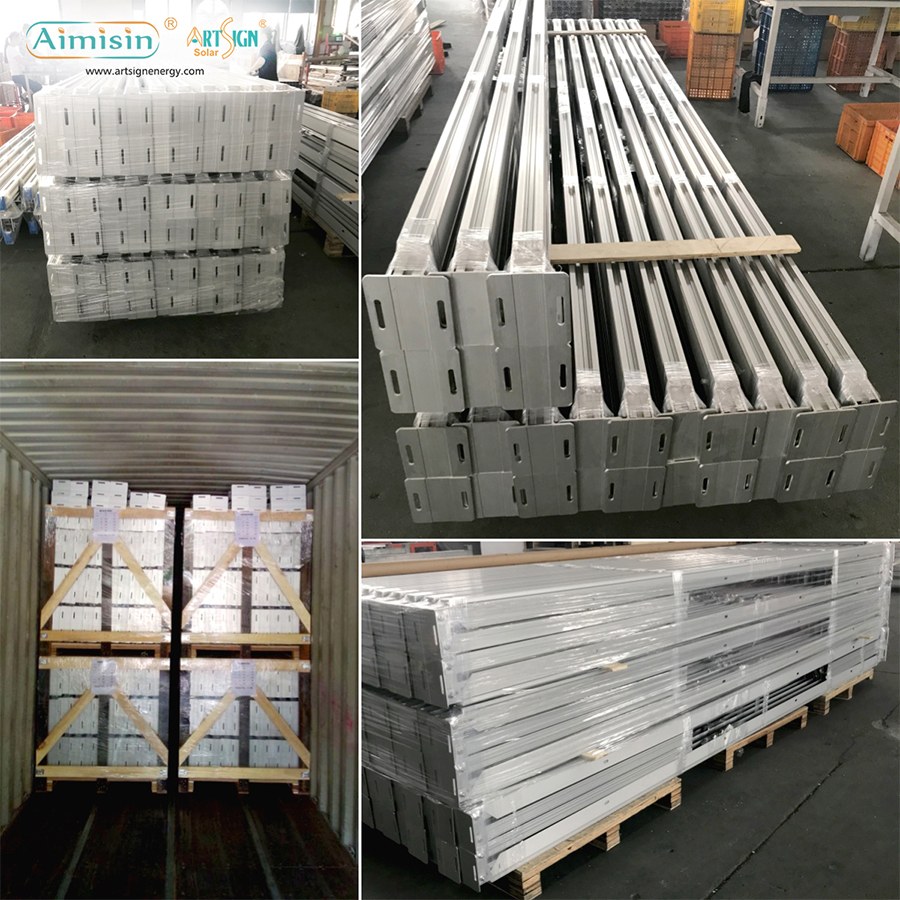

Application	Solar ground mounts on concrete base	Packing	plywood case
Keyword	Aluminum ground solar panel mounting structure	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

solar panel support systems ground concrete base

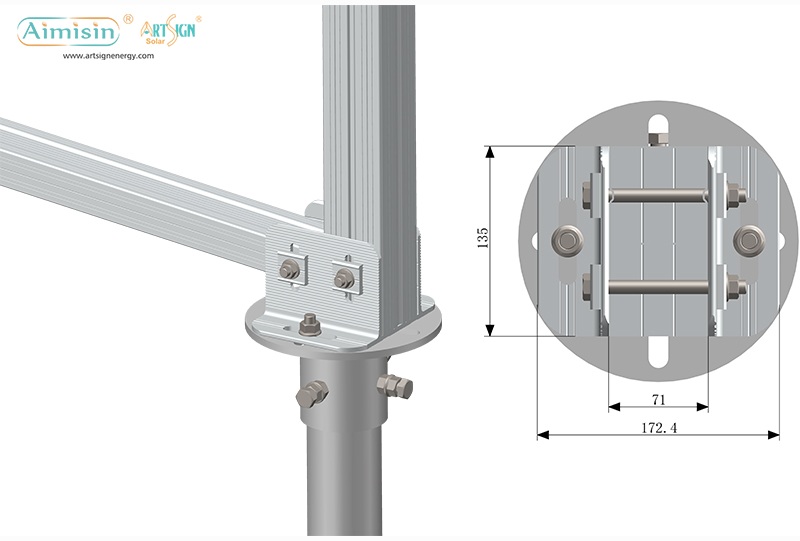

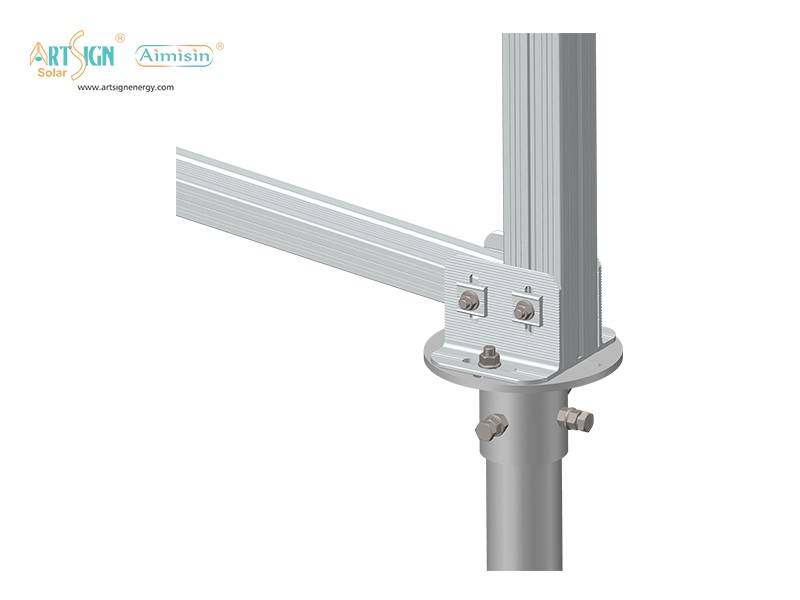

Base kit for post, application on concrete block and ground screw based solar ground mount.

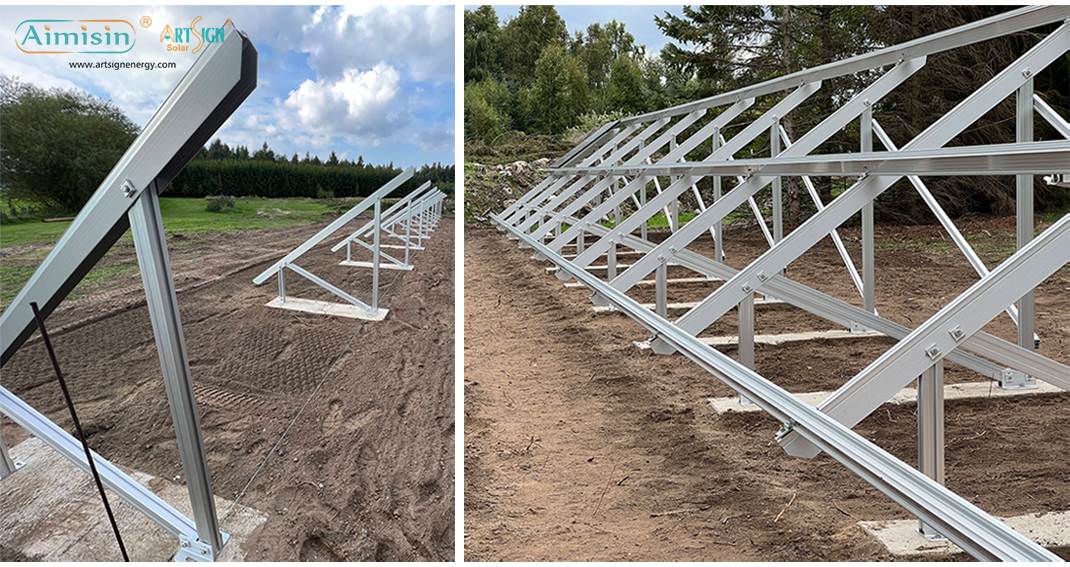

ART SIGN aluminum solar PV mount

ART SIGN solar mounting related accessories

Click to see more PV aluminum components.


AS-OB	AS-OB-2	AS-OB3	AS-OB3-2

AS-OB9	AS-OB9-2
