China manufacturer adjustable aluminum solar panel mount mid clamp

China manufacturer adjustable aluminum solar panel mount mid clamp

Solar panel mid clamp is fixed between 2 panels. It is adjustable, more easy installation.

Item NO.:
AS-AMC-01B
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union
Surface Treatment:
natural or black

Inquiry now

Product Detail

China manufacturer adjustable aluminum solar panel mount mid clamp

Design Features

— Adjustable solar clamp is used for framed solar panels
— It's applicable to 30-40mm solar panel thickness.

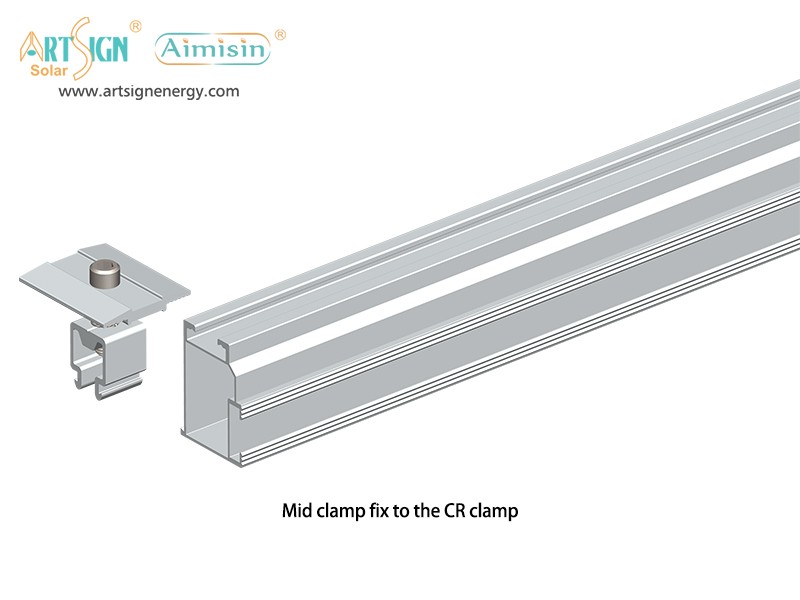

— It's suitable for our CR rail system and AS-R-15mini rail, clamps are pre-assembled.

Mode Number	AS-AMC-01B	Brand Name	ART SIGN
Specs	42.82020.9mm	Material	Aluminum 6005-T5

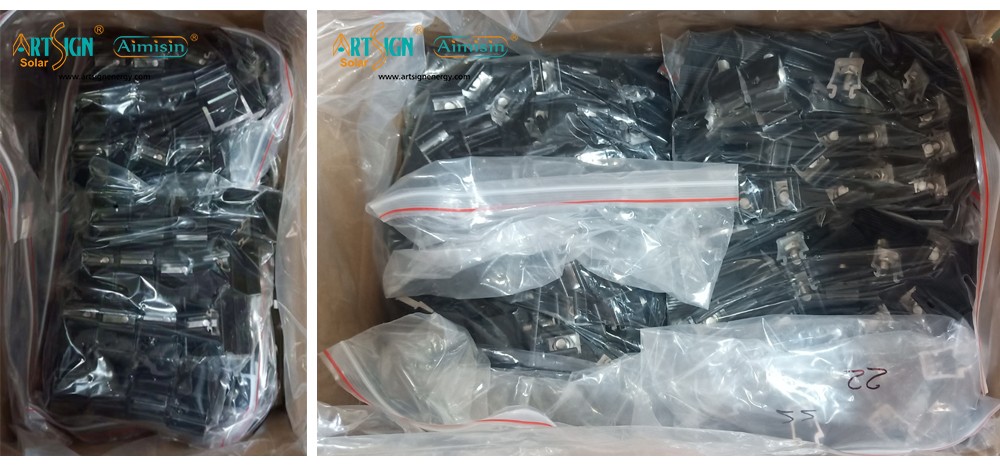

Application	Fix between 2 panels	Packing	Wooden pallet
Keyword	Manufacturer aluminum solar panel mount mid clamp	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

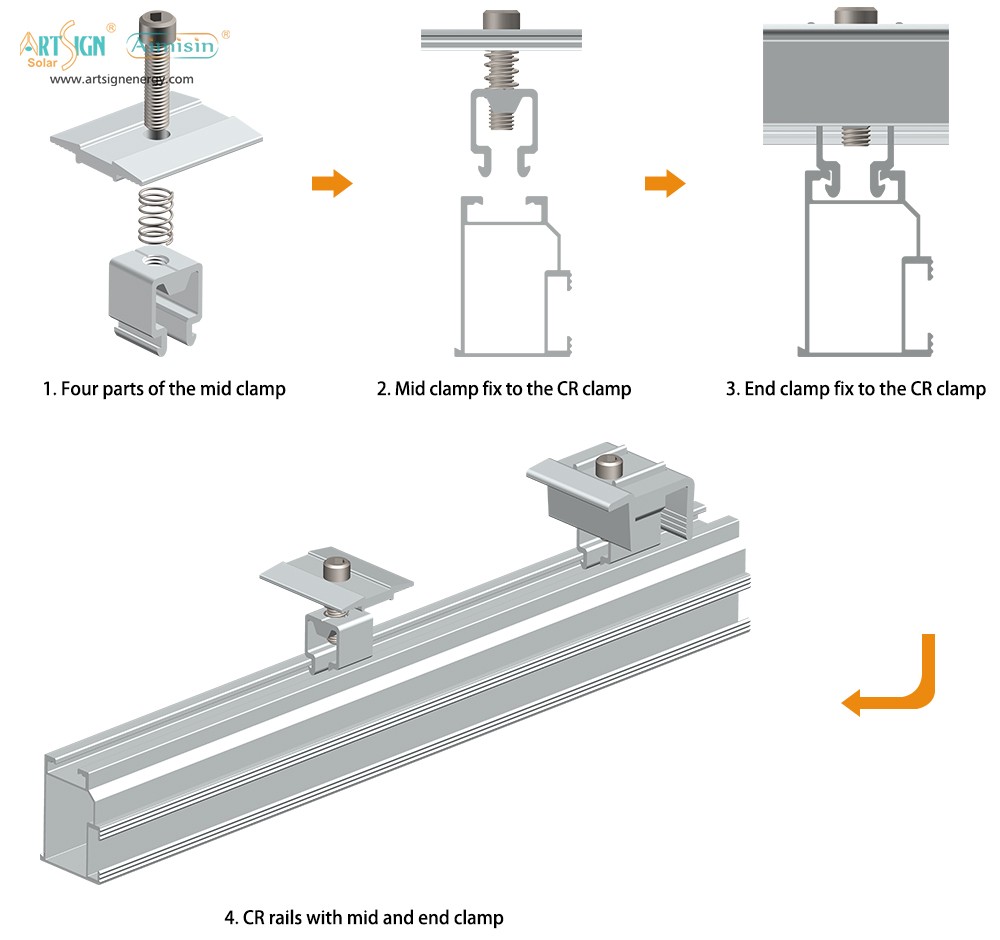

How to use the clamp?

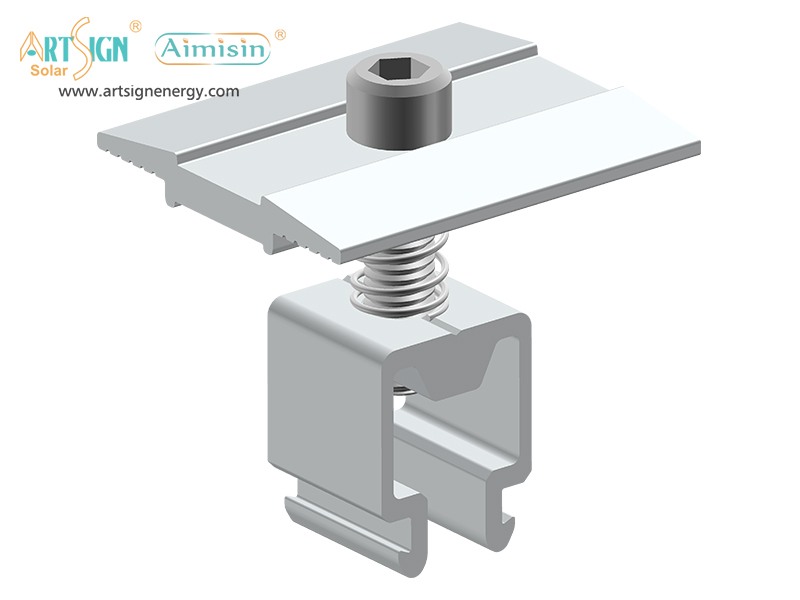

ART SIGN solar panel clamp bracket AS-AMC-01B

It can be used on panels with thickness between 30mm and 40mm.

ART SIGN solar panel clamp bracket AS-AMC-01B

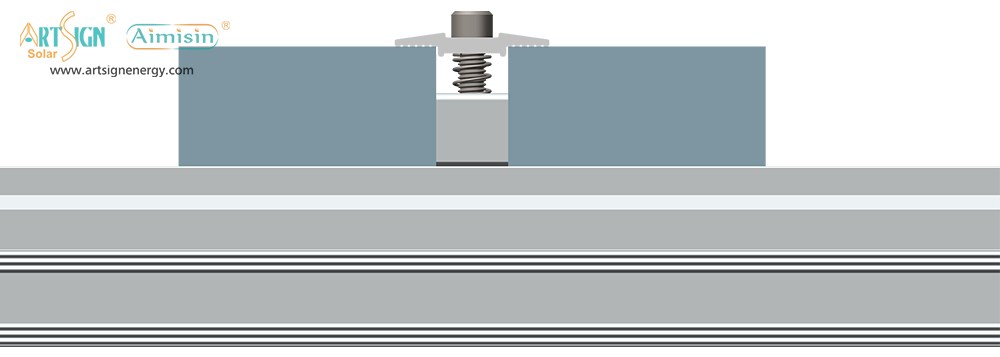

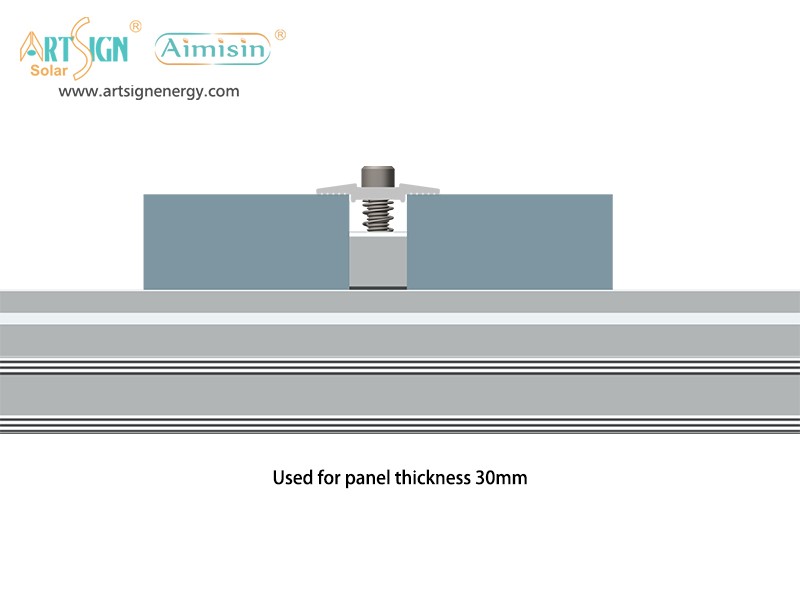

Used for panel thickness 30mm

ART SIGN solar panel clamp bracket AS-AMC-01B

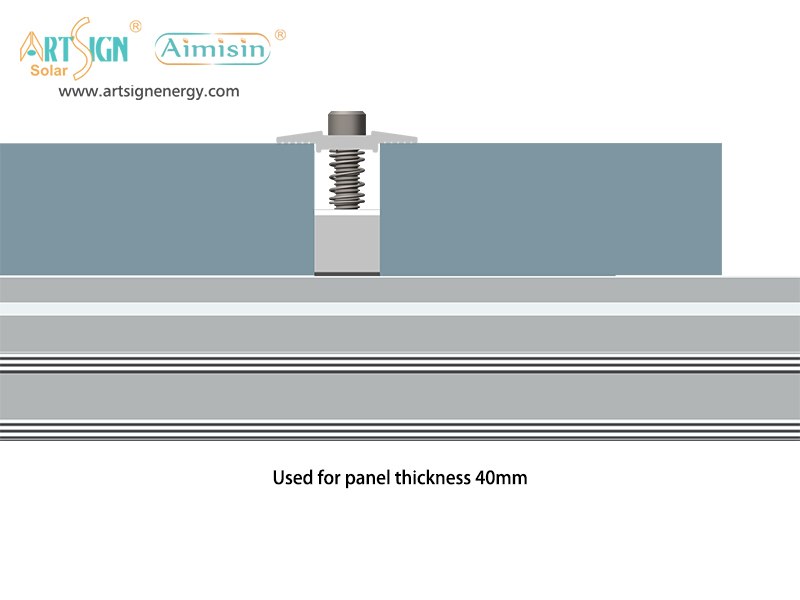

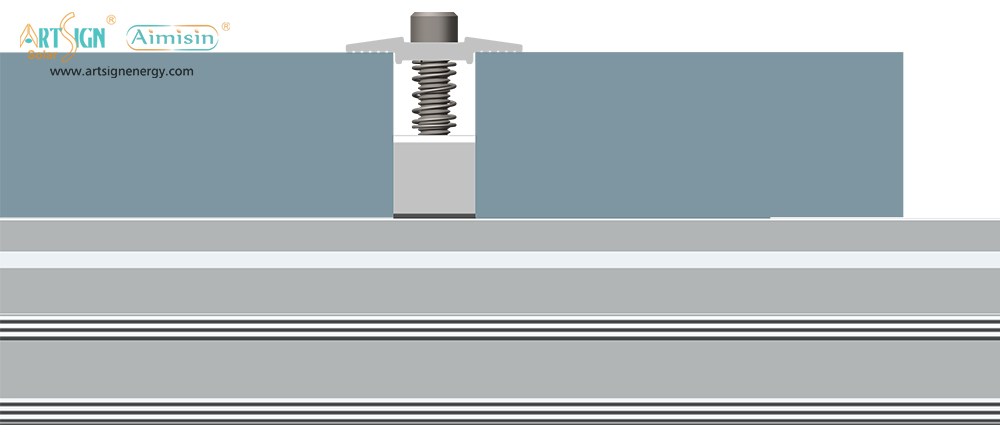

Used for panel thickness 40mm

ART SIGN solar panel clamp bracket

ART SIGN solar mounting related accessories

Click to see more Module clamp.


AS-AMC	AS-AEC	AS-AMC-01B	AS-AEC-01B
