Aluminum solar panel roof rails D rail 01A#

Solar pv module mounting rails supplier which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.
  • Item NO.:

    AS-DR-01A#
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

ART SIGN Solar PV module mounting rails suplier Solar panel fixing roof rails


Design Features

— Square profile and rectangular profile to suite your installation way.

— Adjustable, quicker and easier installation for solar clamps.

— D nut rail is stronger and more applicable for strict wind load and snow load requirements.


Mode Number

  AS-DR-01A

Brand Name

  ART SIGN
Specs

  W32.3*H59.5mm

Material

  Aluminum 6005-T5

Application
   Solar panel roof mounting system Packing
  Wooden case
Keyword
  Solar pv mounting rails supplier Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

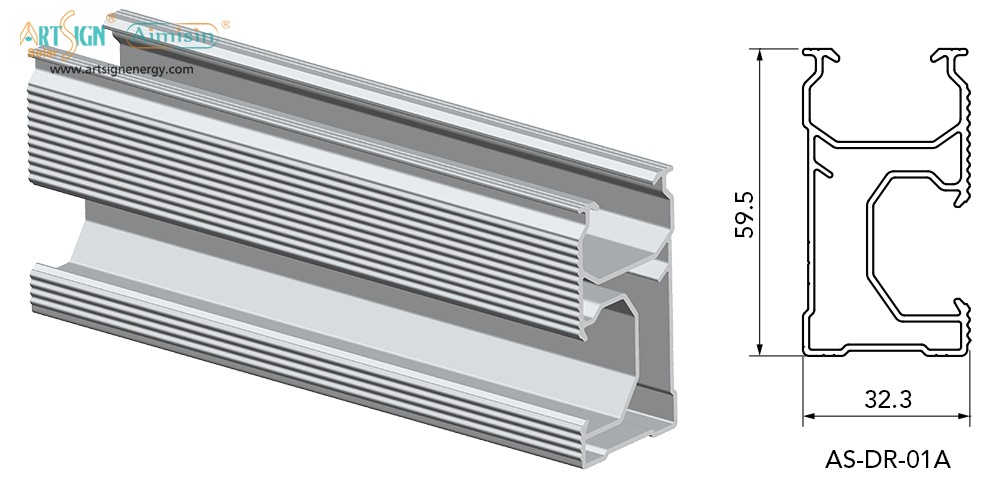

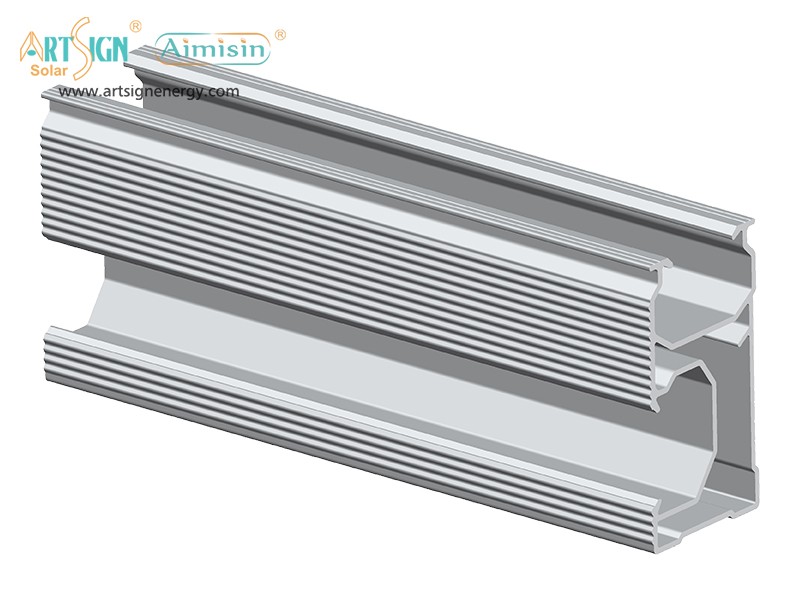

ART SIGN aluminum pv mounting rail AS-DR-01A

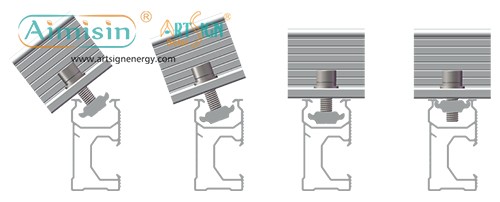

ART SIGN d nut
ART SIGN d nut installation step

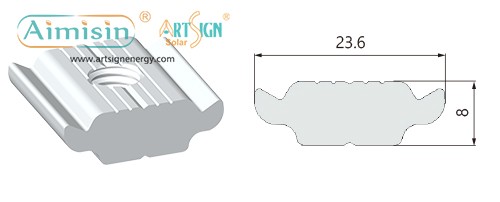

D1 nut: W23.6mm × H8mm, cutting length 23mm
Installation Method

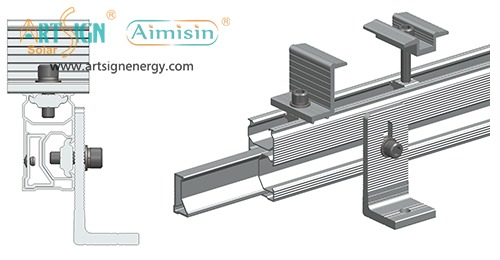

ART SIGN aluminum pv mounting rail AS-DR-01A

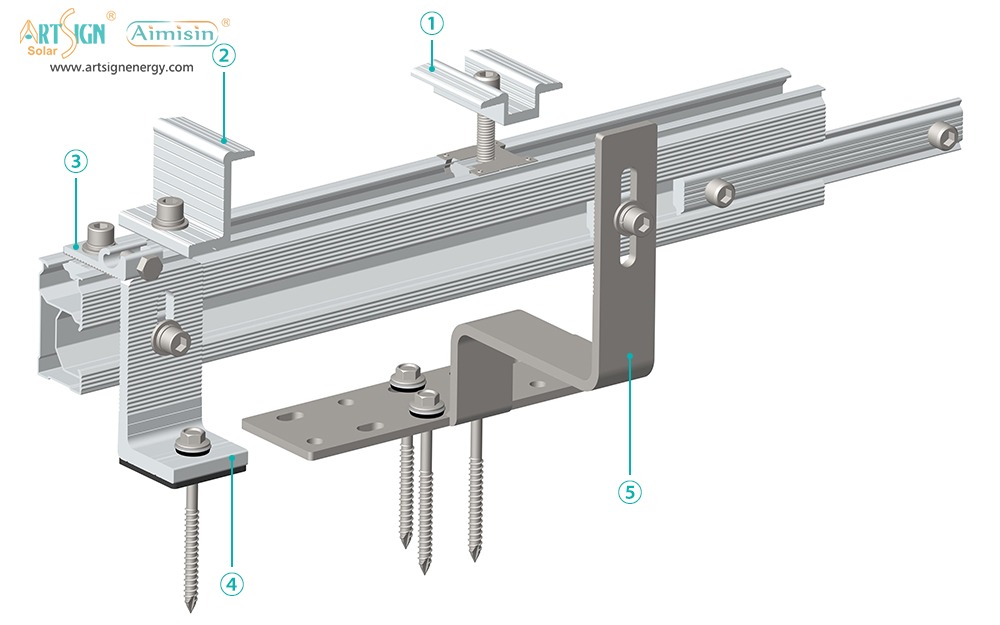

①. 1pcs anodized aluminum mid clamp + 1pcs SUS304 allen bolt M8x50mm + 1pcs SUS304 spring washer + 1pcs anodized aluminum D nut

②. There're three options for end clamp, please refer to below optional accessories for details

③. Two options for earthing kit.  (1).Cable channel inner diameter 5.8mm   (2).Cable channel inner diameter 8.0mm

④. Four different heights' L feet

⑤. Refer to the optional accessories table for more options


Two different connectors available for AS-DR-01A

ART SIGN aluminum pv mounting rail AS-DR-01A

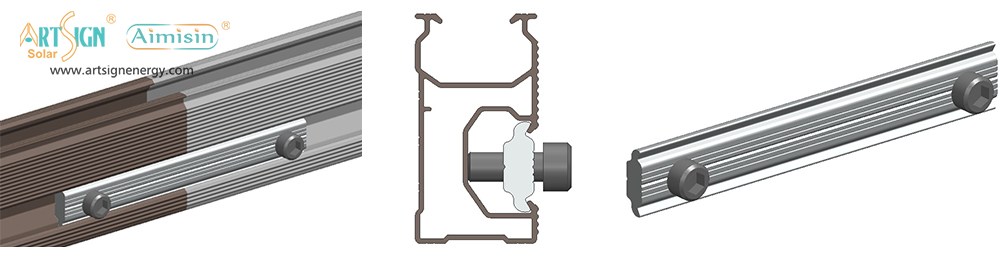

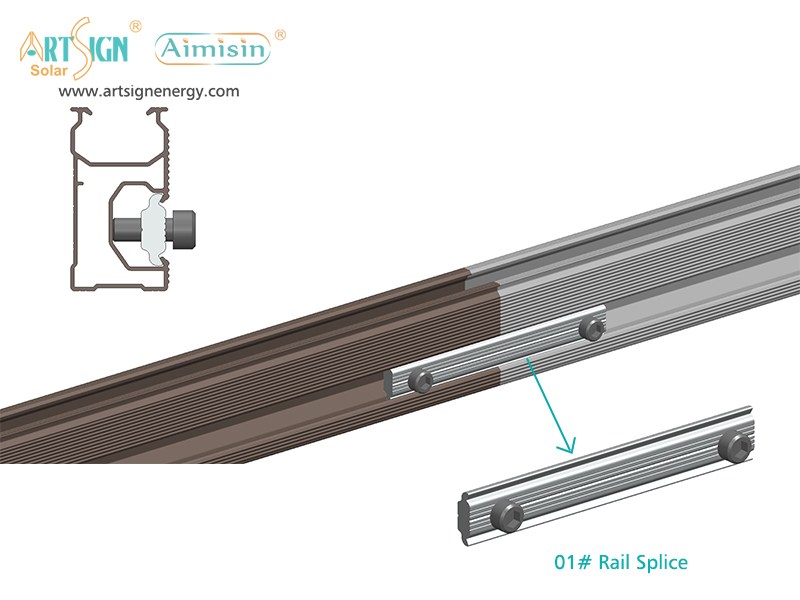

Option 1: 01# Rail Splice


ART SIGN aluminum pv mounting rail AS-DR-01A

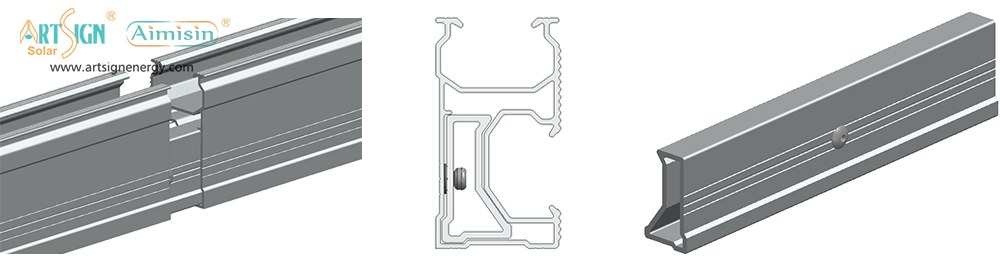

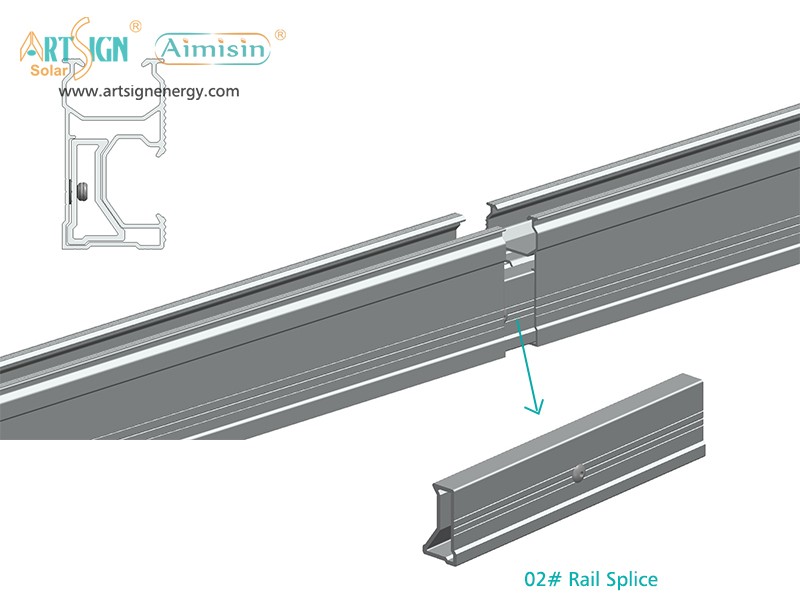

Option 2: 02# Rail Splice

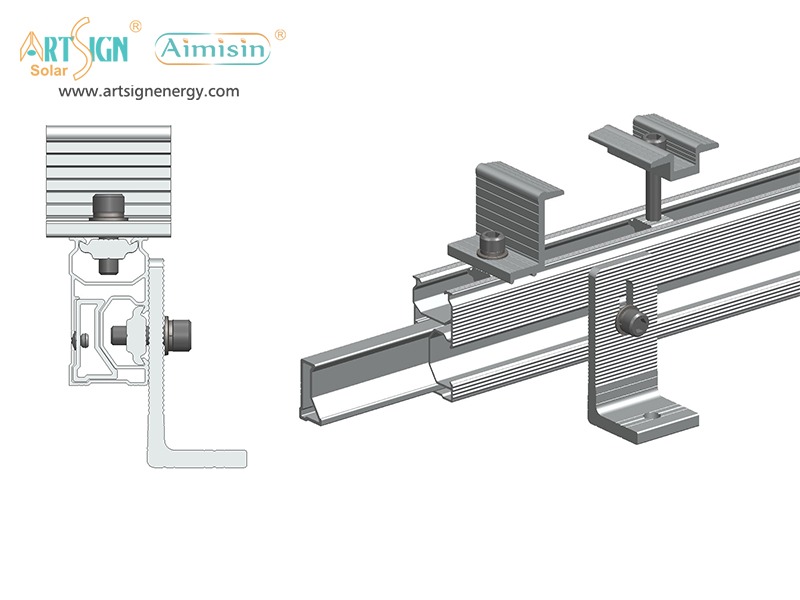

AS-DR-01A is installed with a hook or L foot


ART SIGN AS-DR-01A with L-foot installation

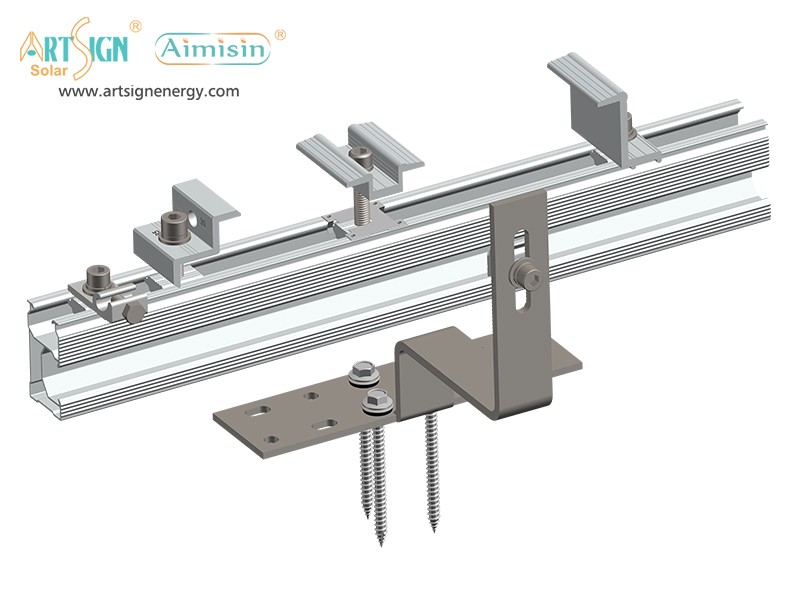

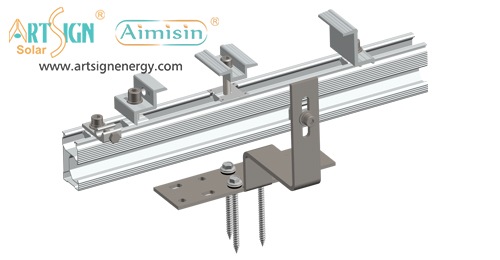

ART SIGN AS-DR-01A is installed with roof hook
AS-DR-01A with L-foot installation
AS-DR-01A is installed with roof hook

  Package Type

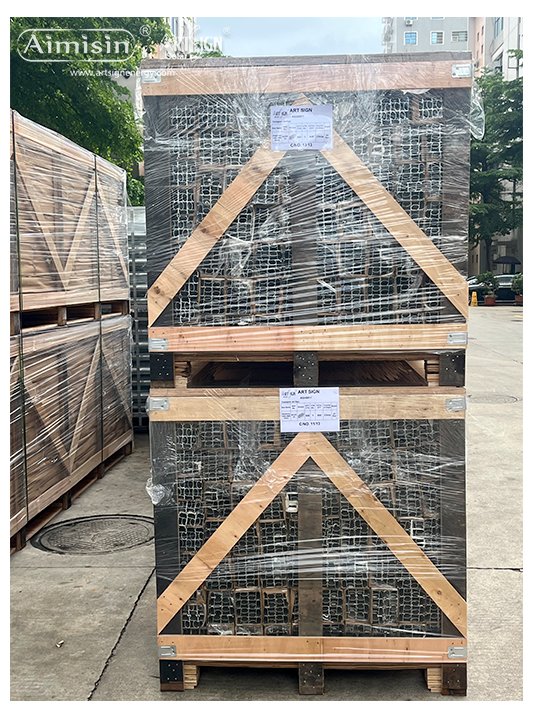

  Inner packing: Kraft paper packaging ART SIGN pv racking rail AS-DR-20 packages
  Outer packing: wooden case / pallet


ART SIGN pv racking rail AS-DR-20 case study


ART SIGN solar mounting related accessories

Aluminum profile AS-DR-01A which is most suitable for solar panel roof mount while has various size of profile for option, different size of aluminum rail is suitable for different strength request.

Click to see more nut series;

ART SIGN aluminum pv mounting rail AS-DR-01A
ART SIGN aluminum pv mounting rail AS-DR-01B
ART SIGN aluminum pv mounting rail AS-DR-03
ART SIGN aluminum pv mounting rail AS-DR-04
AS-DR-01A
AS-DR-01B
AS-DR-03
AS-DR-04
ART SIGN aluminum pv mounting rail AS-DR-08
ART SIGN aluminum pv mounting rail AS-DR-15
ART SIGN aluminum pv mounting rail AS-DR-19
ART SIGN aluminum pv mounting rail AS-DR-20
AS-DR-08
AS-DR-15 AS-DR-19 AS-DR-20

Rail splice ART SIGN aluminum pv mounting rail AS-DRS-01
ART SIGN aluminum pv mounting rail AS-DRS-02
AS-DRS-01 AS-DRS-02
