Pitched tile roof solar mounting brackets

Solar panel roof mounts for tile - quickmount stainless steel solar roof hooks to be worked with D nut rails.
  • Item NO.:

    AS-SR-TRMS
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Pitched tile roof solar mounting brackets


Design Features

— D nut design: easy & fast to install.
— Different rail size design, for different wind load and snow load requirement.

Mode Number

  AS-SR-TRMS

Brand Name

  ART SIGN
Specs

  Customized

Material

  Aluminum 6005-T5, SUS304

Application
   Pitched tile roof Packing
  Carton / wooden case
Keyword
  China solar tile mounting manufacturer Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details


ART SIGN Pitched tile roof solar mounting brackets
ART SIGN Pitched tile roof solar mounting brackets
Solar Tile Roof Mounting Structures
D nut design: easy & fast to install


Different rail size design, for different wind load and snow load requirement.

ART SIGN Pitched tile roof solar mounting brackets


2 types of rail splice for option.

ART SIGN Pitched tile roof solar mounting brackets
ART SIGN Pitched tile roof solar mounting brackets

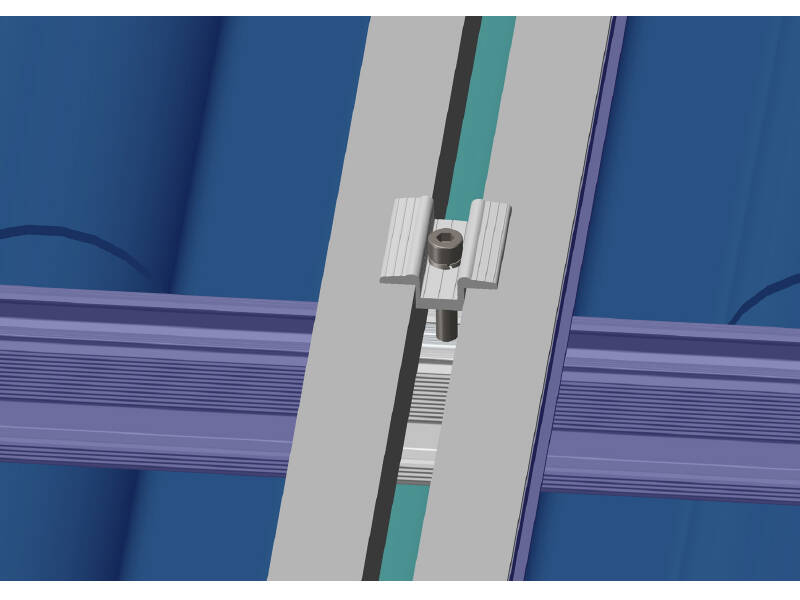

External rail splice, fasten 2 rails via allen bolt M8*20.
Internal rail splice, fix 2 rails via the rivet.


Installation step


ART SIGN Pitched tile roof solar mounting brackets installation step

ART SIGN Pitched tile roof solar mounting brackets installation step

ART SIGN Pitched tile roof solar mounting brackets installation step


ART SIGN solar mounting package

ART SIGN Pitched tile roof solar mounting brackets packages


ART SIGN Pitched tile roof solar mounting brackets case study
