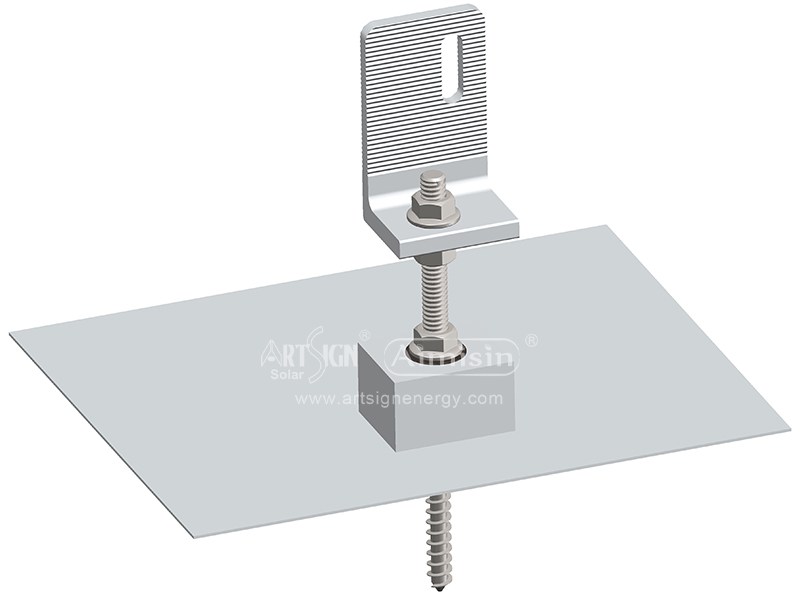

Asphalt Shingle Tile Roof Solar Mounting Bracket System L Feet 02P#

Asphalt Shingle Tile Roof Solar Mounting Bracket System L Feet 02P# is one of waterproof solar mounting bracket solutions, it's easy to be installed with different types of solar pv rails. The material that we use is aluminum 6005-T5, with anodizing treatment, the surface treatment is with thickness above 10μm. It's pre-assembly with stainless steel 304bolt and nut, not only can save labour costs but also can save installation time.  Besides, all of our products are with 20 years warranty.
  • Item NO.:

    AS-RH-02P
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight, Paypal, Western Union,
  • Surface Treatment:

    natural or black

  • Product Detail

Asphalt Shingle Tile Roof Solar Mounting Bracket System L Feet 02P#



  Place of Origin

  Xiamen China (mainland)

Brand Name

  ART SIGN
  Mode Number
  AS-RH-02P

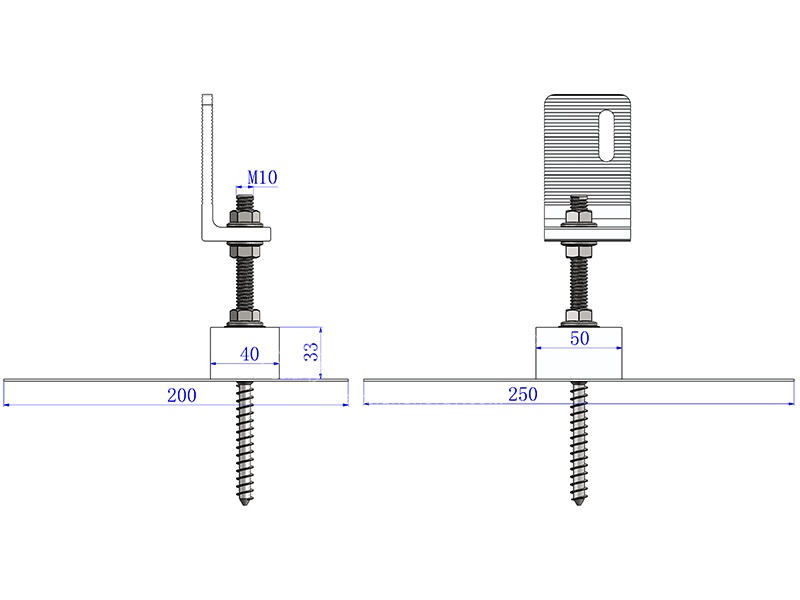

  Specs

  Width of L feet: 50mm
  Size of aluminum plate: 250*200mm
  Size of aluminum pad: 50*40*33mm
  Hanger bolt M10*200 / M10*300

  Material
  Aluminum 6005-T5
  Application
  asphalt shingle tile roof
  Surface treament
  Anodized above 10um
  Packing
  cartons, plywood pallets /  cases
  Color
  Silver
  Certificate
  ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
  Keyword
  Asphalt Tile Roof Flashing L Feet

Service life:

  25 years
  Quality Warranty
  20 years
  Name   Solar mounting bracket roof hook



  Selling Units
  per set
  Package Type
 cartons, plywood pallets /  cases
  Lead Time:
  Quantity(Sets) 1 - 1000
1001 - 5000
5001 - 10000
  >10000
  Est. Time   (work days)   1 - 3   3 - 7   7 - 15   To be negotiated



Asphalt Shingle Tile Roof Solar Mounting Bracket System L Feet 02P#


Customized cutting length to be suitable for different wind load and snow load requirements.

Category : Aluminum roof bracket




AS-RH-02P
AS-RH-02RP

Leave Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
