Solar panel flat roof mounting system - adjustable tilt kit raised clearance height

solar panel flat roof mounting system-adjustable tilt kit which can be installed on concrete flat roof and metal roof, meanwhile the degree can be fixed or adjustable from 10-15, 15-30,30-60 degree.
  • Item NO.:

    AS-FR-ATK-02
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Solar panel flat roof mounting system - adjustable tilt kit raised clearance height


· Design Features

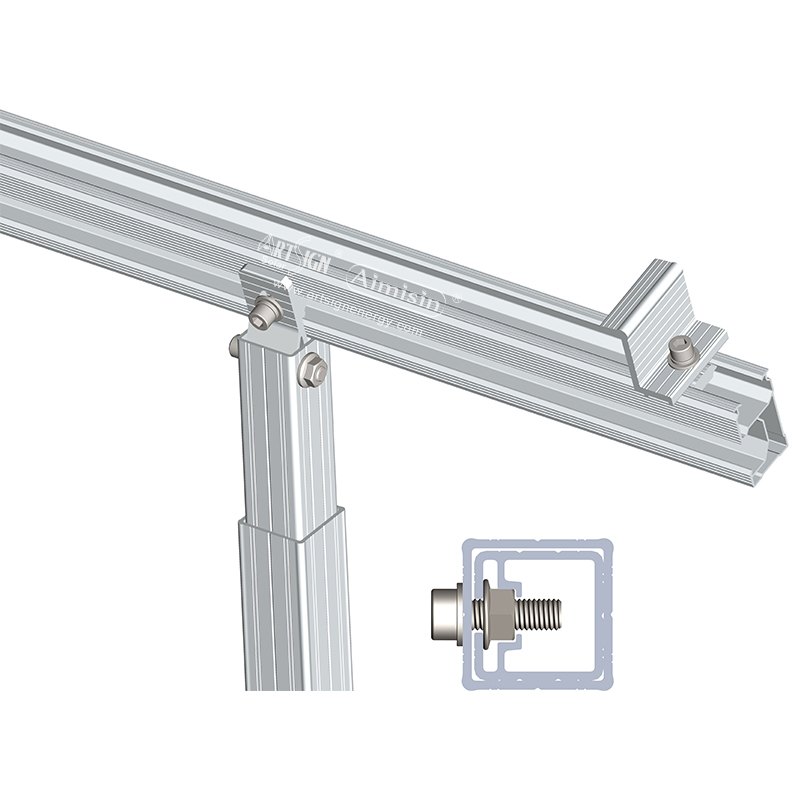

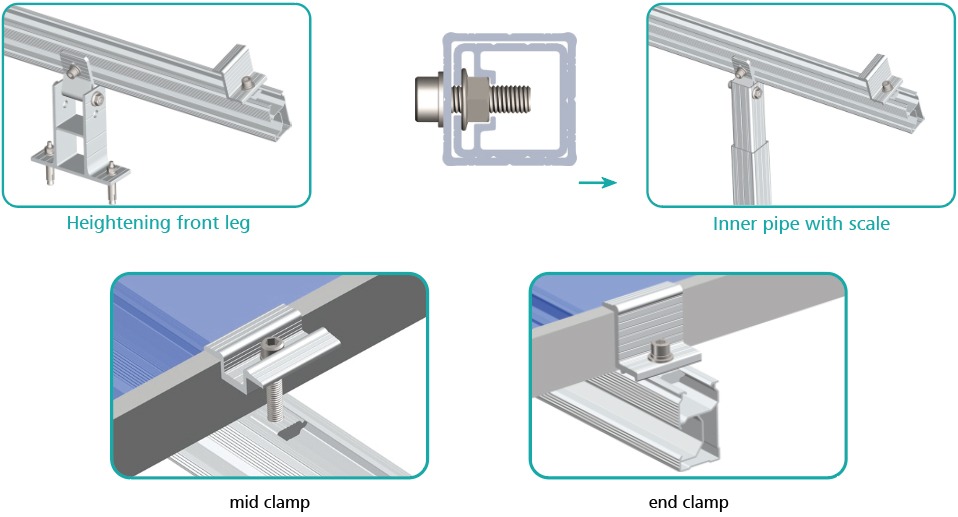

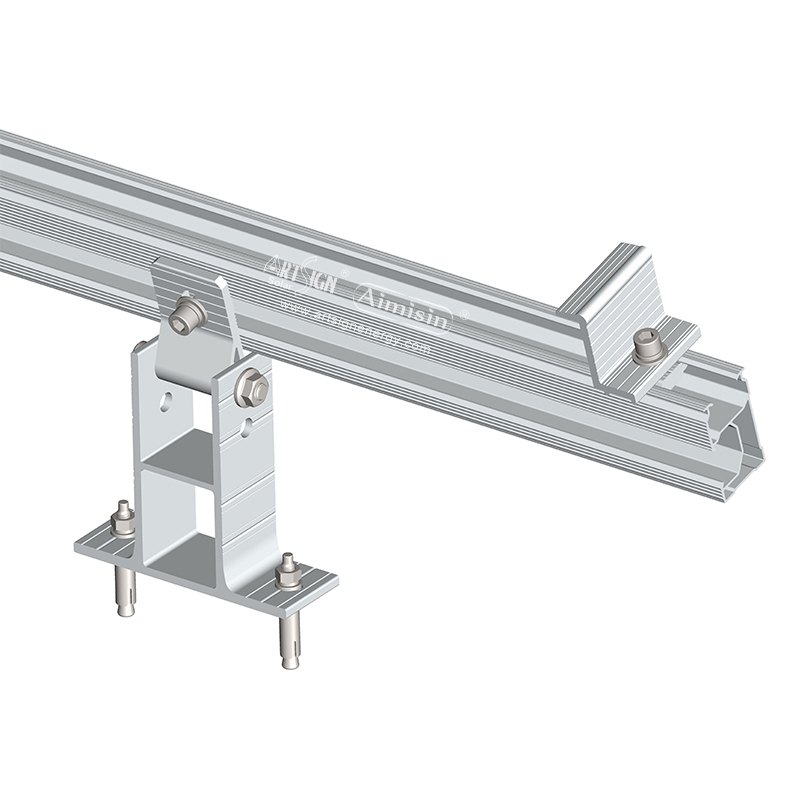

  ① Raised front footing to make the solar panel higher above the ground level.
  ② Suited for concrete flat roof and metal roof.
  ③ Adjustable type structure which has 3 angle range for options: 10-15°, 15-30°, 30-60°.

  ④ All the components will be pre-assembled.


· Surface treatment:
  10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.


· Design Strength:
  The structure can withstand customer's requirement of wind load and snow load.


· Certification:
  Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical & Physical test.



Category : Flat Roof Mount


Suitable for
  concrete flat roof and metal roof
Module
  Framed, thin film
Material&Surface treatment
  10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts
Color
  silver, black or customer requirement
Module orientation
  Landscape and portrait
Wind load
  Max 60m/s
Snow load
  Max 1.5kn/m2
Standards
  Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS
Warranty
  20 years






AS-DR-01A AS-DR-01B
AS-DR-03



AS-DR-04
AS-DRS-01
AS-DRS-02



AS-DEC
AS-DMC
AS-AFL-02-H108



AS-ABL-02

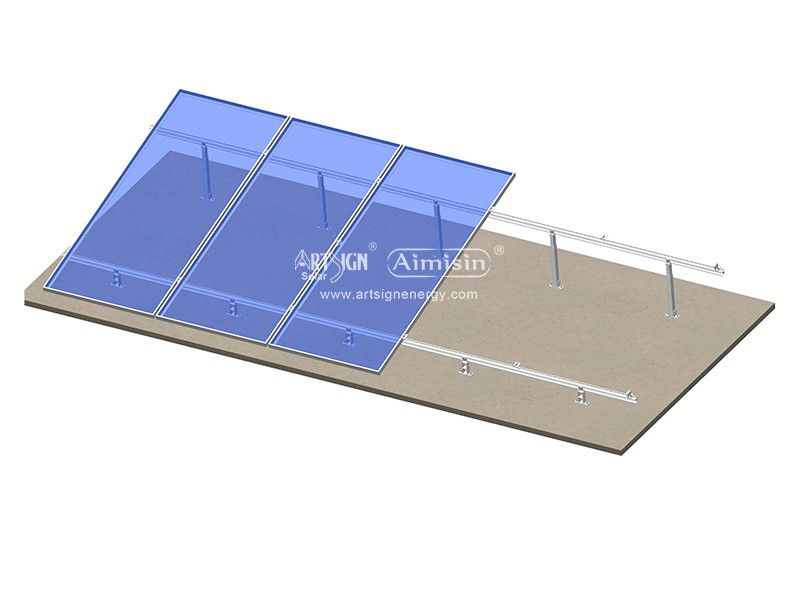

Step 1
Open the pre-assembled triangle kit ,plan the foot base and fix the legs


Step 2
fix Art Sign Rails with the legs


Step 3

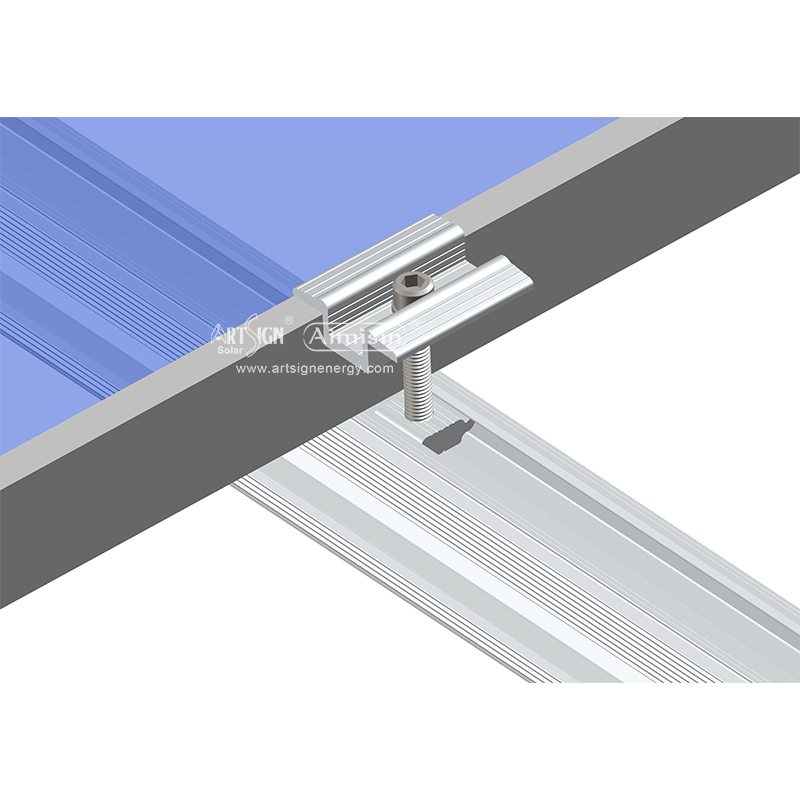

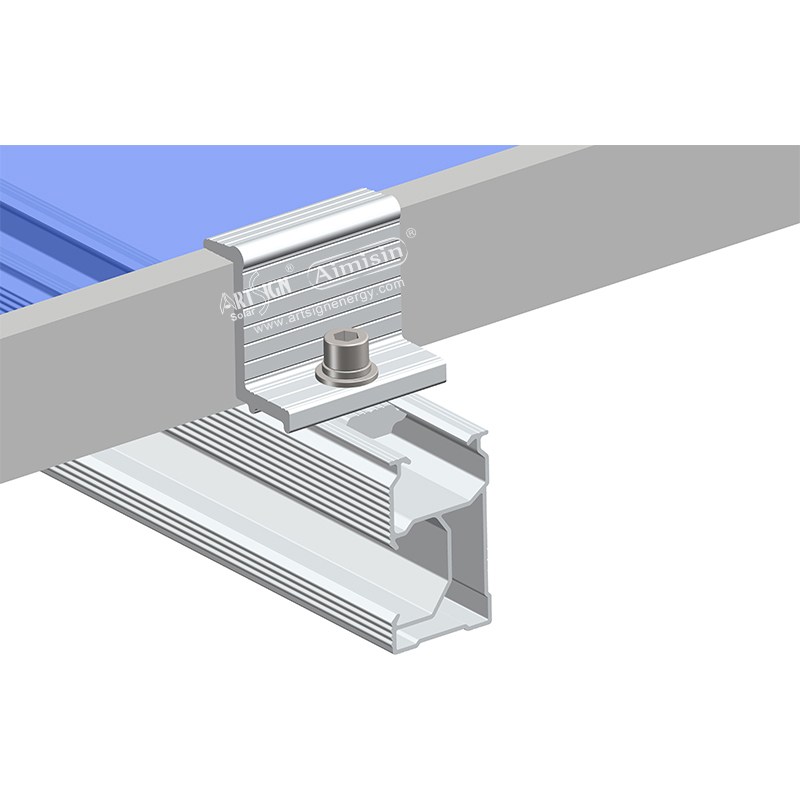

solar panel installation , fix them with mid clamp,end clamp


FLAT roof - Adjustable tilt kit raised clearance height
