Galvanized carbon steel solar pv panel ground mounting system hat section u133 pillar

Galvanized carbon steel solar pv panel ground mounting system hat section u133 pillar

C type carbon steel solar pv panel ground mounting system U133 pillar is frequently used for large scale solar power system, it is with less components, quick to install. the product also can withstand large wind load and snow load.

Item NO.:
AS-SG-U133
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western Union,
Surface Treatment:
natural or black

Inquiry now

Product Detail

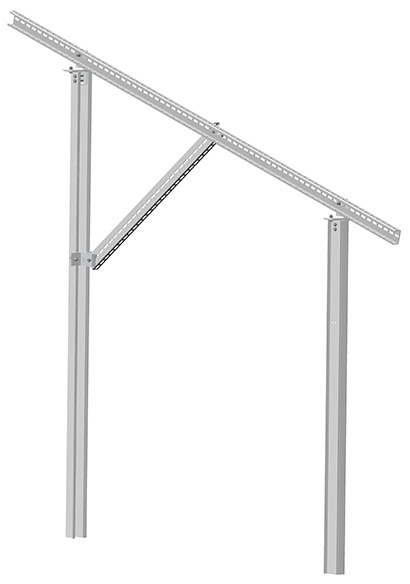

Galvanized carbon steel solar pv panel ground mounting system hat section U133 pillar

Design Features

— One leg solution with simple components to support the solar rail and solar modules.

— Solar module orientation can be both landscape and portrait installation.

Mode Number	AS-SG-U133	Brand Name	ART SIGN
Specs	133X132mm	Material	Zn-Al-Mg
Application	Ground mounted solar projects	Packing	Plywood case or steel pallets
Keyword	ground mount solar racking systems supplier	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

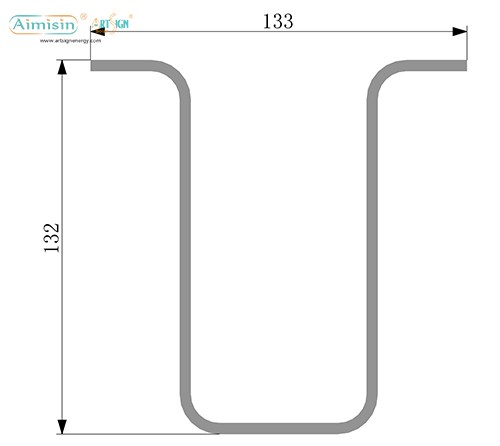

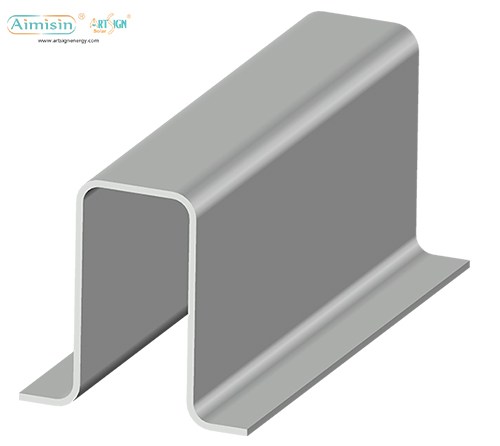

Hat section U133X132 Zinc-aluminum-magnesium coated steel	Width 133mm, height 132mm, Profile length is customized according to clients' request

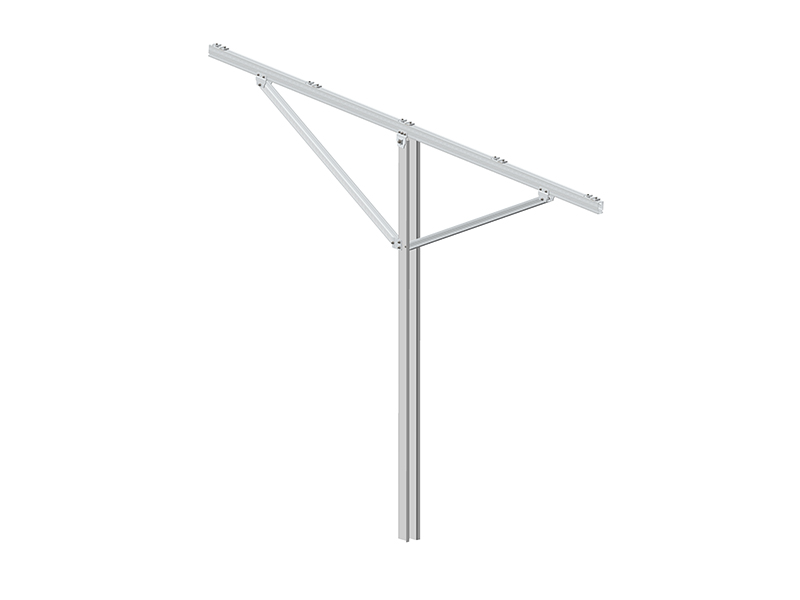

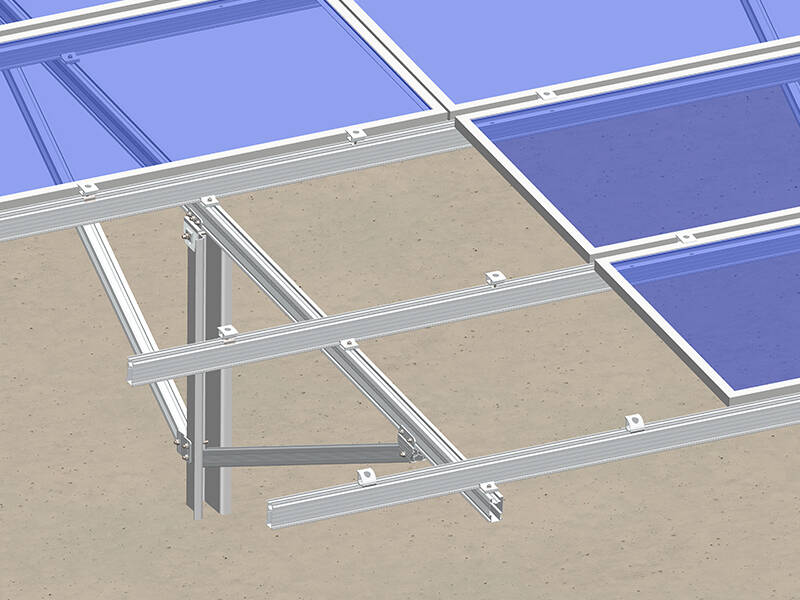

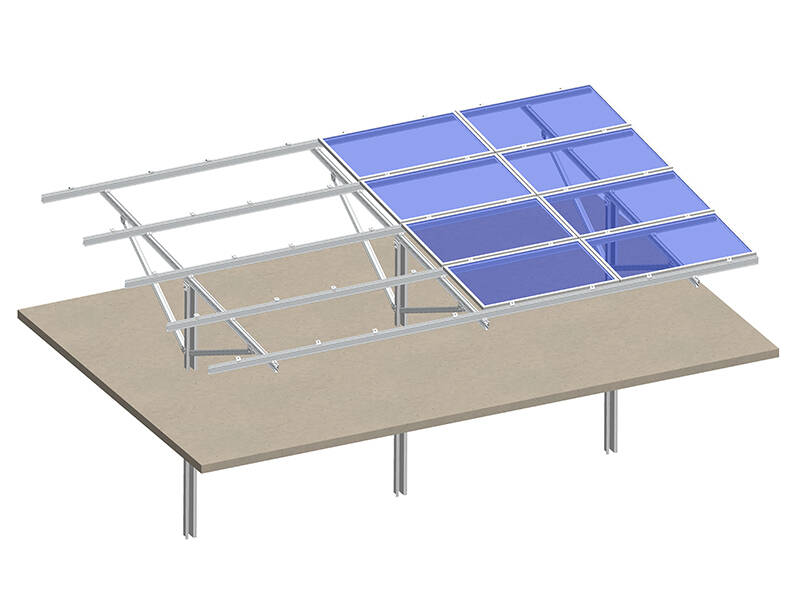

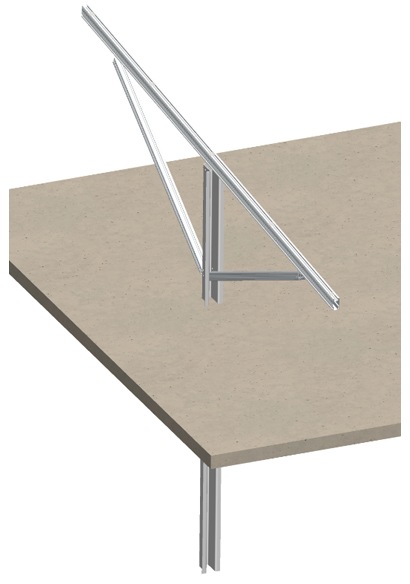

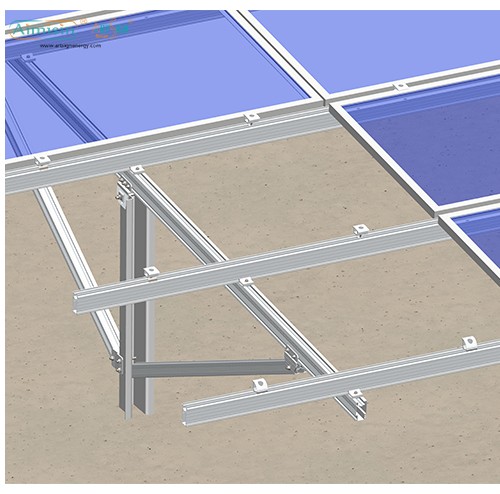

Single pole ground mounting system	More economical and efficient for large scale solar plant

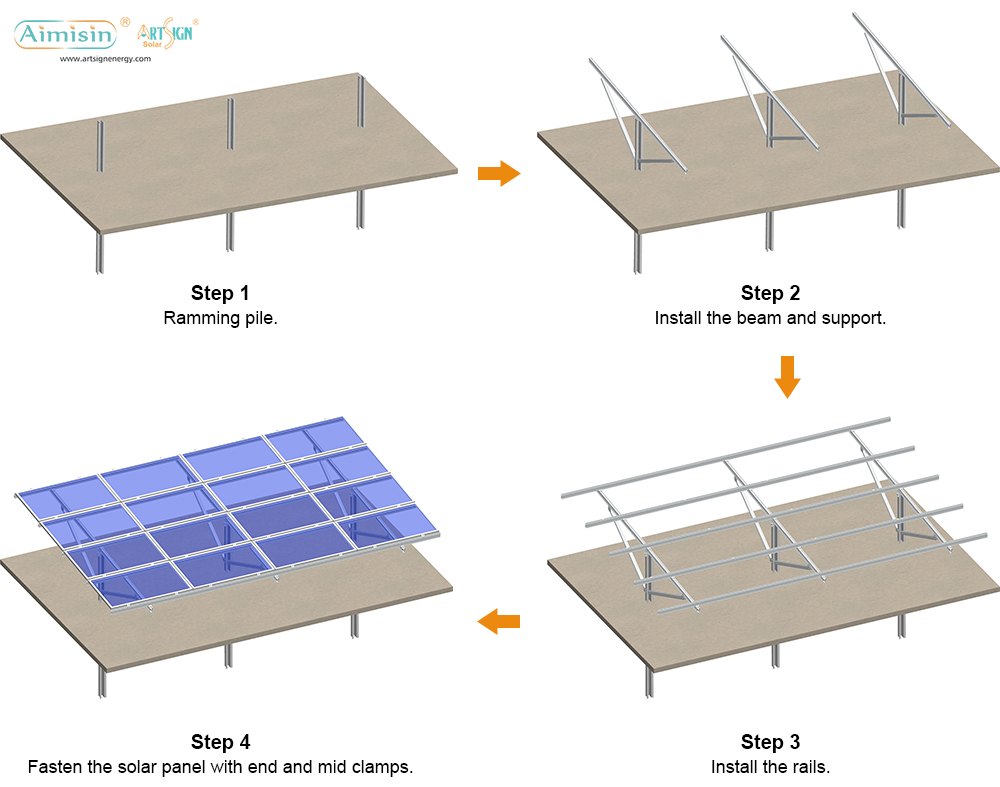

Installation step

ART SIGN U133 Pillar installation step

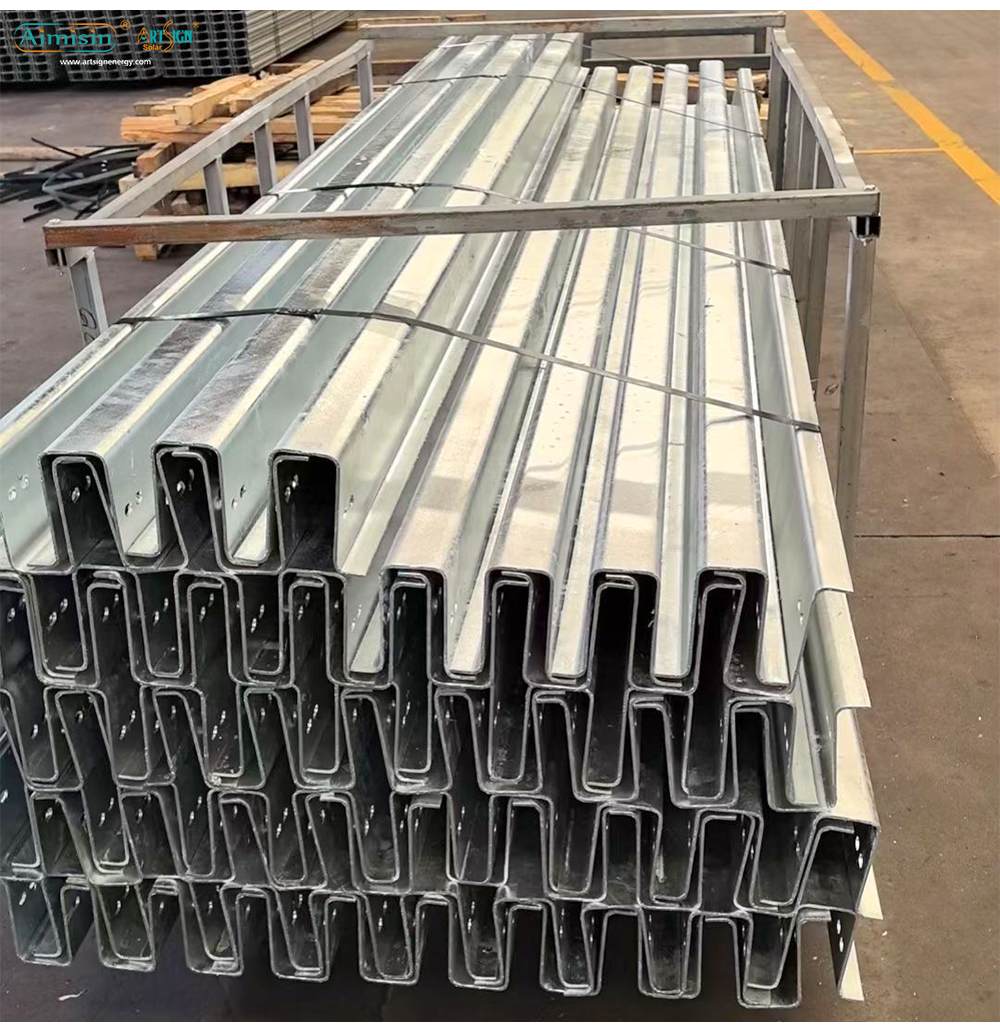

ART SIGN solar mounting package

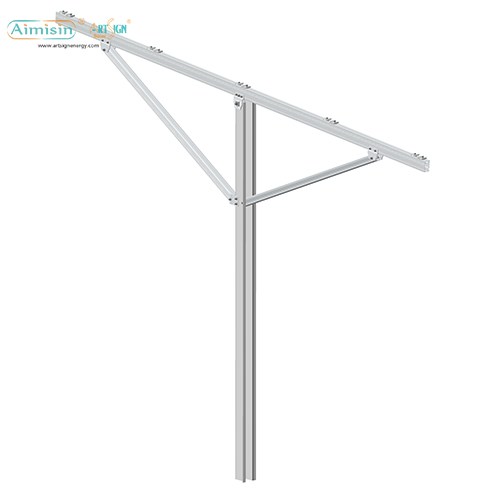

ART SIGN U133 Pillar

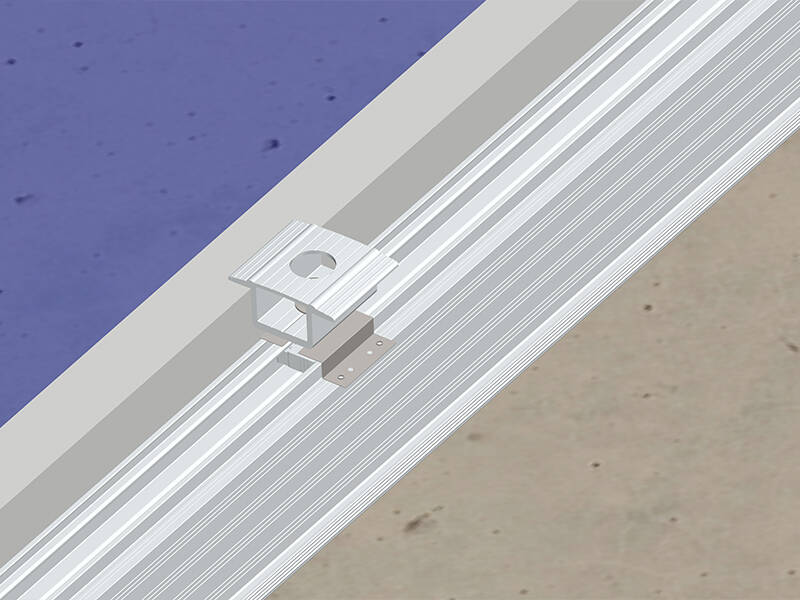

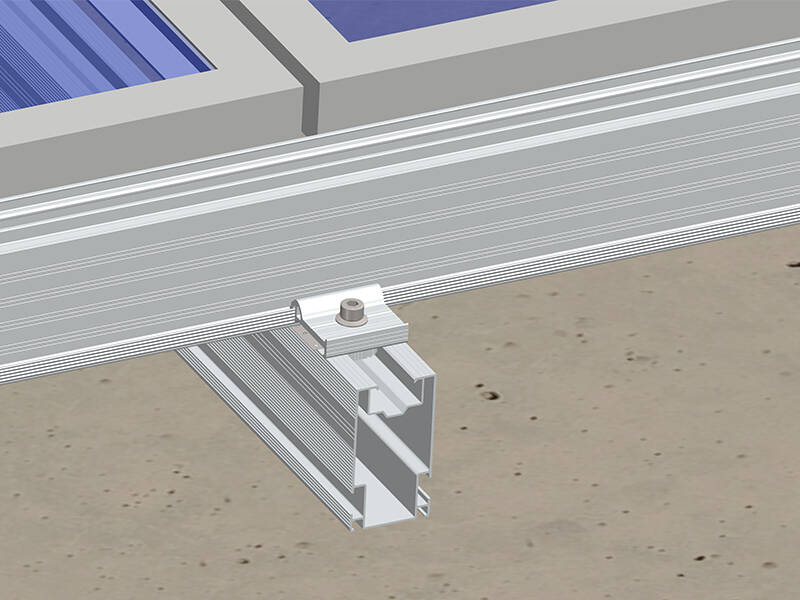

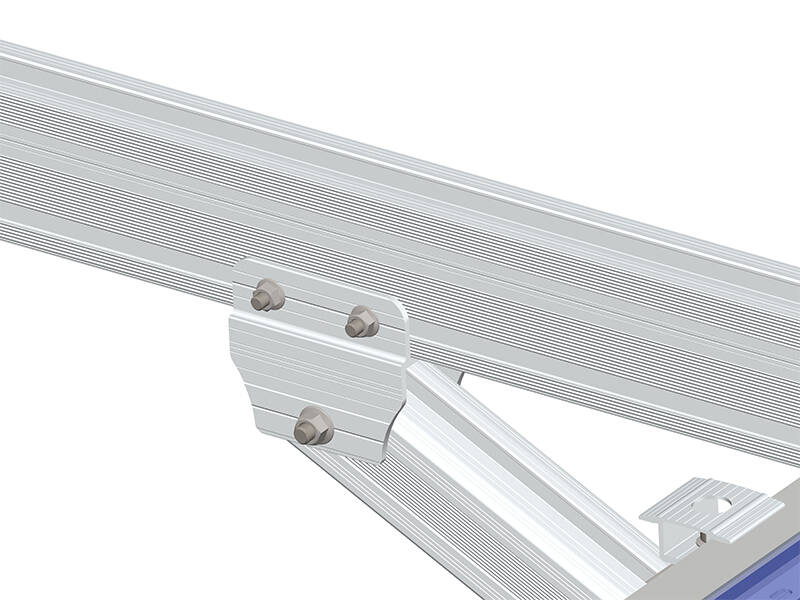

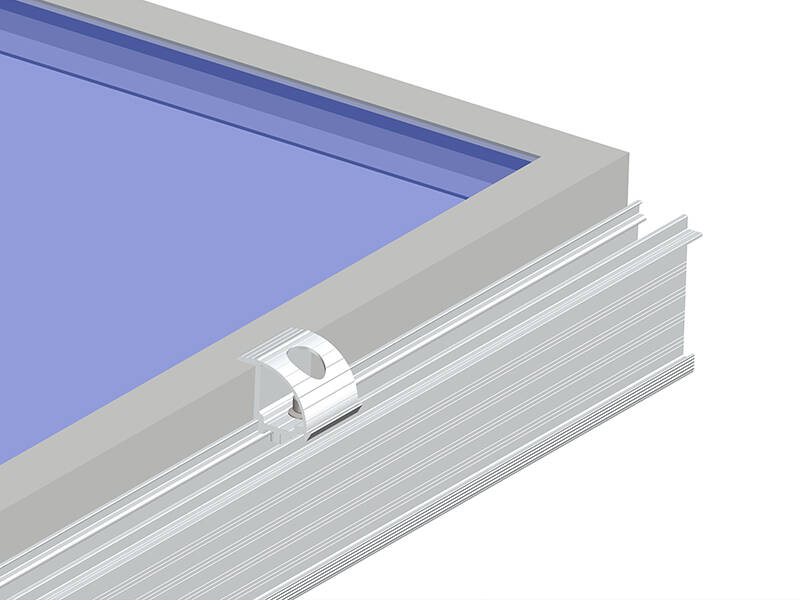

ART SIGN solar mounting related accessories

Category : Pitched Roof Mount.


U95 Pillar	U133 Pillar
