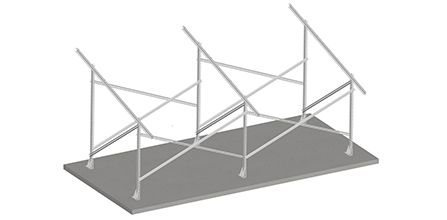

C type steel ground solar panel mounting structures for pv systems
· Design Features
① The structure installation is flexible which is apply to landscape and portrait panel.
② The structure is more stronger with larger footing span.
 |
|
|

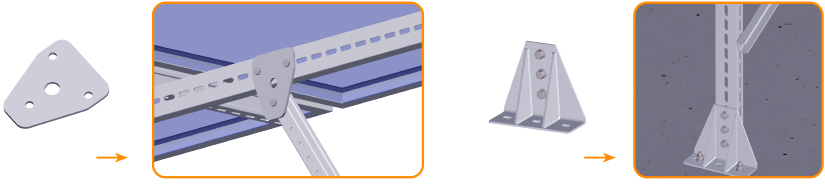

Steel plate for landscape V structure connection |
Steel base kit |
· Surface treatment:
80μm thk. Hot dipped galvanizing steel, 10μm thk. Anodized aluminum, stainless steel 304 bolts and nuts.
· Design Strength:
The structure is designed according to the wind load or snow load request.
· Certification:
Japanese JIS, Australia AS/NZS 1170.2-Wind load report; SGS report-Chemical&Physical test.
|
Suitable for |
Open field |
|
Module |
Framed, thin film |
|
Material&Surface treatment |
80μm thk. hot dipped galvanized steel, 10um thk. Anodized Aluminum 6005-T5, stainless steel 304 bolts and nuts |
|
Color |
silver, black or customer requirement |
|
Module orientation |
Landscape and portrait |
|
Wind load |
Max 60m/s |
|
Snow load |
Max 1.5kn/m2 |
|
Standards |
Australia AS/NZS 1170.2, CE,SGS,DIN 1055,JIS |
|
Warranty |
20 years |
 |
 |
 |
| AS-BCP-C80 |
AS-BK |
AS-C41/52 |
 |
 |
 |
|
AS-C62 |
AS-C80 |
AS-SRS-C80 |
 |
 |
 |
|
AS-PIB-3 |
AS-PEB-3 |
AS-CTMC-P |
 |
 |
 |
|
AS-CTEC-P |

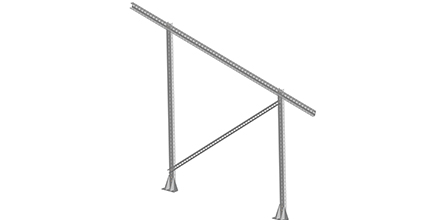

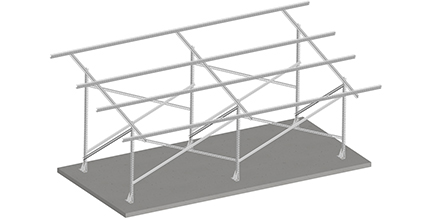

The elements of V structure will be packed separately which saves the package volumn. |
AS-HB-10-25 |
C type steel ground solar panel mounting structures for pv systems
 |
 |
 |
|
Step 1

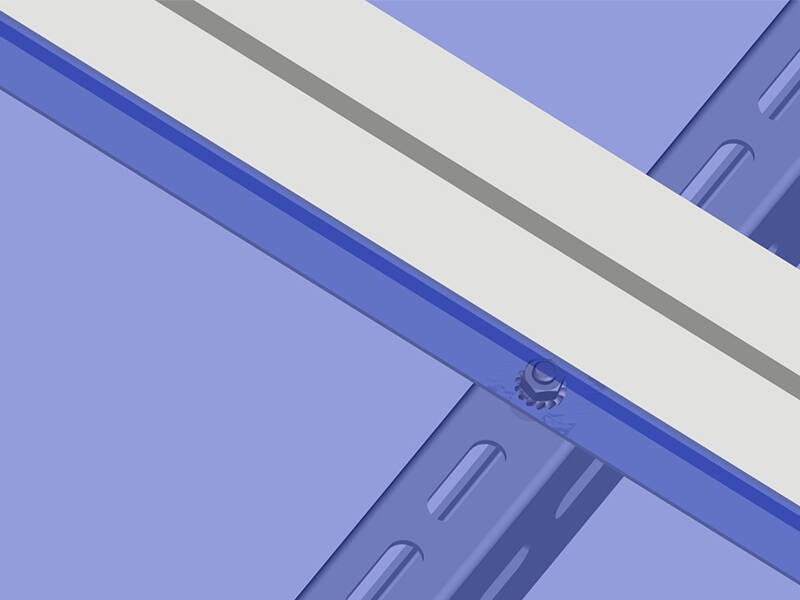

Preassembly the main structure |
|
Step 2
Install the front bar and back bar
|
|
|
|
 |
 |
 |
 |
|
Step 4

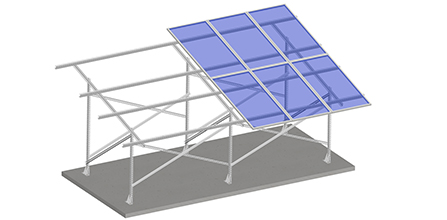

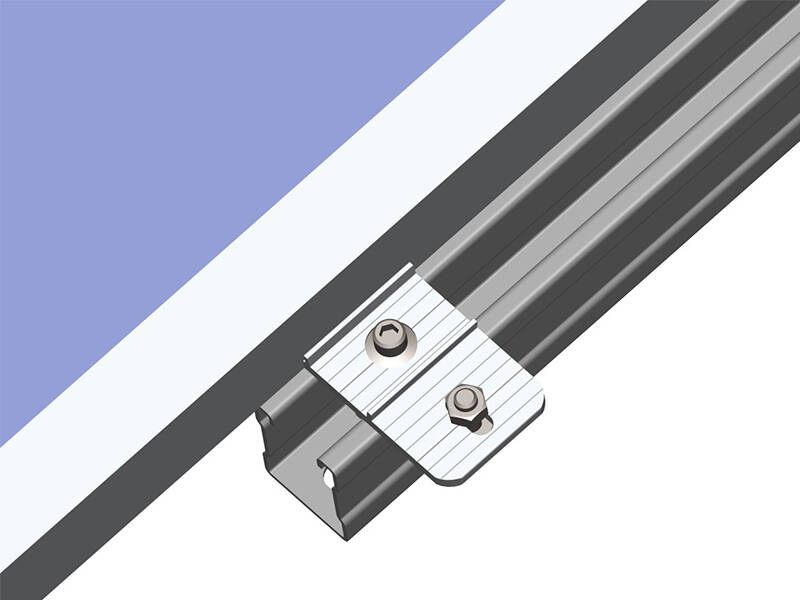

Solar panel installation |
|
