ART SIGN factory direct aluminum solar panel mounting rail splice #BG07

#BG07 aluminum rail splice is connector of G rail.
  • Item NO.:

    AS-BG07
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

ART SIGN factory direct aluminum solar panel mounting rail splice #BG07


Design Features

— Avaliable in vairous finishes: mill, silver anodizing or black anodizing.

— Macth with G rail. Suit for G nut and Hex bolt.

— Easier, quicker intallation.


Mode Number

  AS-BG07

Brand Name

  ART SIGN
Specs

  W45 * H31.5mm, Length customized

Material

  Aluminum 6005-T5

Application
   Solar rooftop mounting Packing
  Processed wood pallet
Keyword
  Factory directly high quality economical solar mount rail splice Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

ART SIGN solar rail mount splice AS-BG07
ART SIGN solar rail mount splice AS-BG07

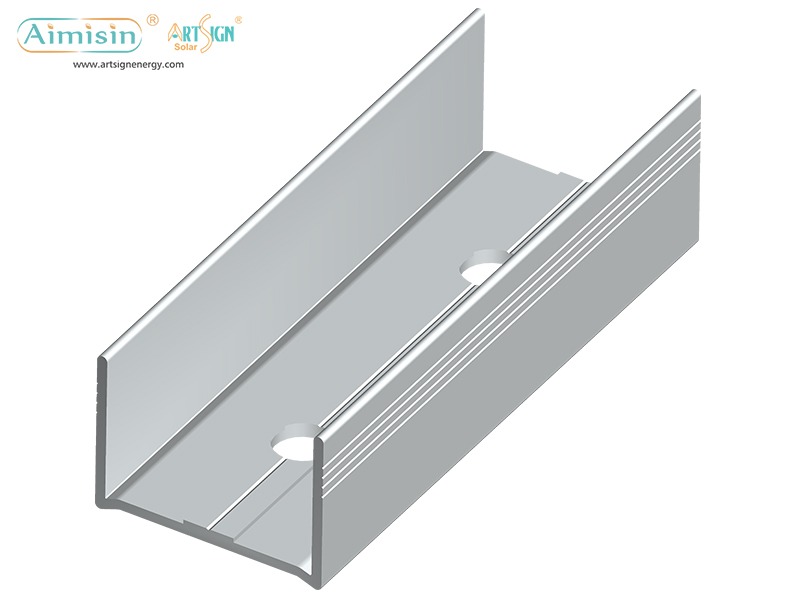

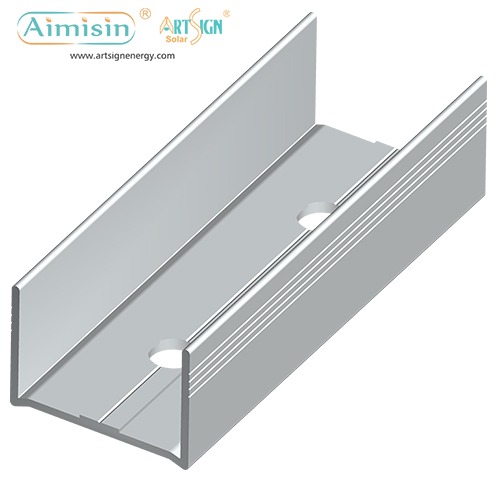

Cutting length can be customized

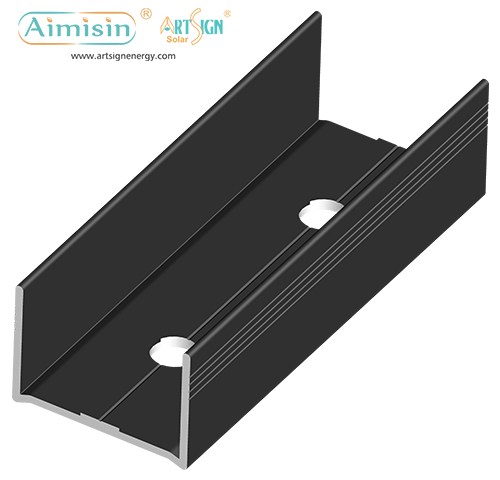

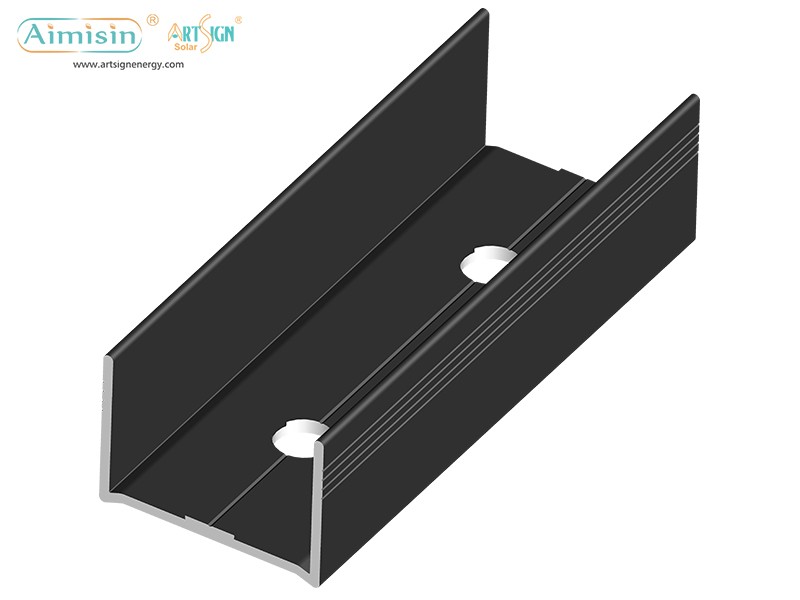

Black finished available
ART SIGN solar rail mount splice AS-BG07

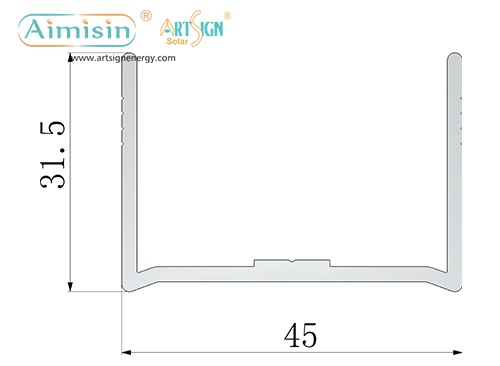

ART SIGN solar rail mount splice AS-BG07 size

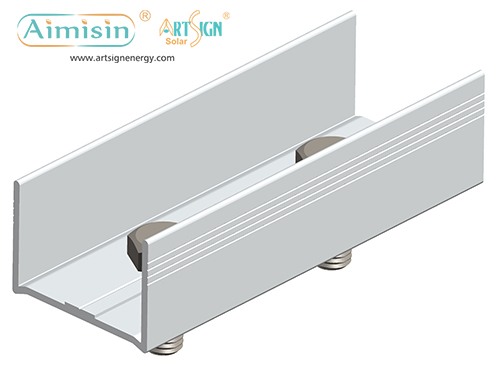

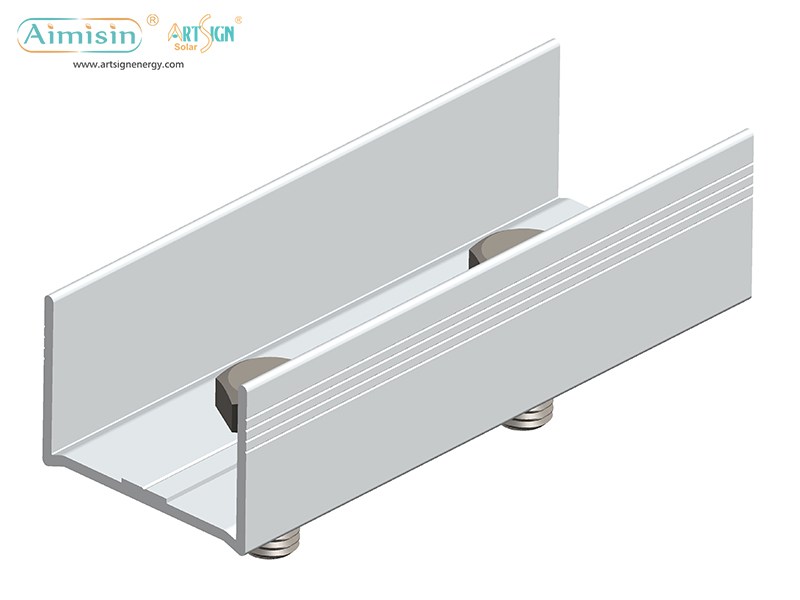

Splice with Hexagon bolt M10X25 + Flange nut

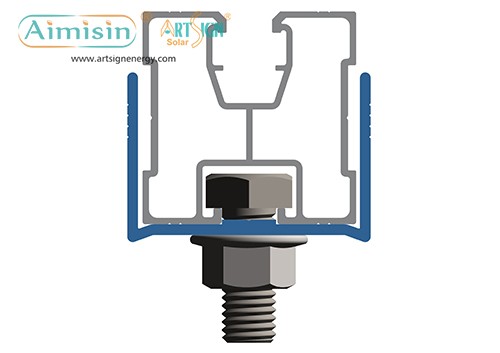

Cross-sectional diagram
ART SIGN solar rail mount splice AS-BG07
ART SIGN solar rail mount splice AS-BG07

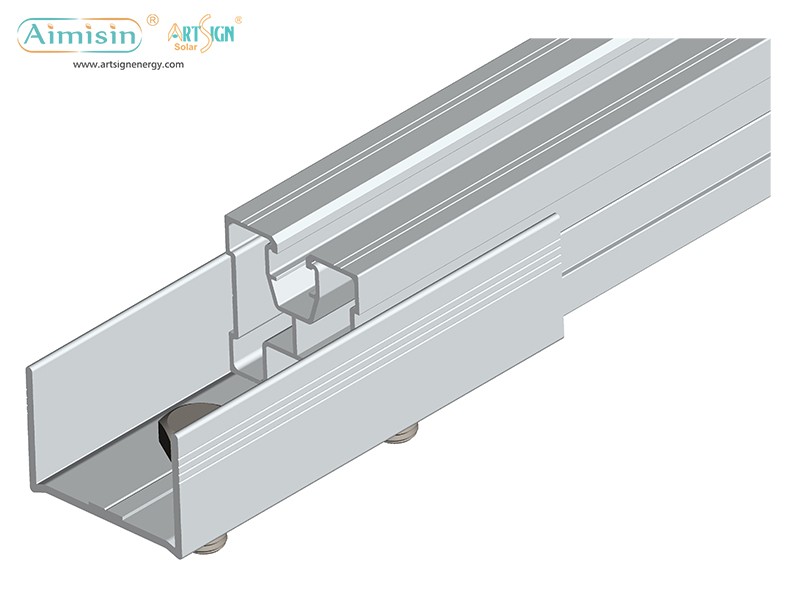

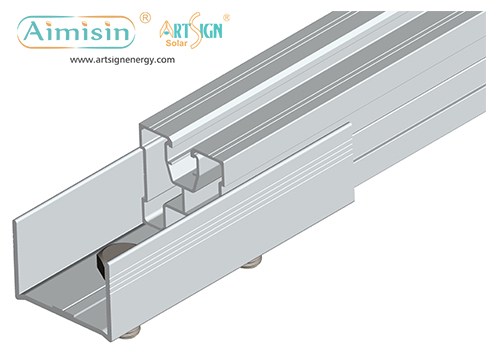

Solar rail splice connecting G rail
Hex bolt fixed the splice and G rail directly

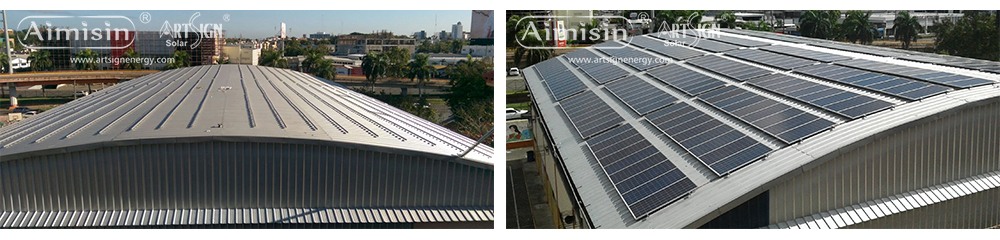

ART SIGN solar rail mount splice AS-BG07 case study


ART SIGN solar mounting related accessories

AS-BG07 rail splice is suitable for G rail mounting system. Available in various finish. Can be used in conjunction with hex bolt and G nut accessories.

Click to see more nut series;

ART SIGN solar mounting hex blot
ART SIGN solar mounting G nut
ART SIGN solar rail mount splice AS-BG07 mid clamp & end clamp
Hex bolt
G nut
Mid clamp and end clamp
ART SIGN solar rail mount G rail AS-GR-01
ART SIGN solar rail mount G rail AS-GR-05
G rail AS-GR-01
G rail AS-GR-05
