Solar Panel Mounting System For Metal Roof

Solar panel mounting system for pitched metal roof with 20 years warranty: L bracket with rail solution is strong, light and easy to be installed. High grade aluminum rails are corrosion-resistant with anodized treatment.
  • Item NO.:

    AS-SR-MRMS
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail

Solar Panel Mounting System For Metal Roof


Design Features:

T bolt installation: much easier, faster, more convenient. Suitable for corrugate roof, trapezoid roof. Rails are pre-cut in customized length, clamps, L foot are pre-assembled.


Surface Treatment:

10um thk anodized aluminum structures, stainless steel 304 bolts and nuts.


Design Strength:

Suitable for various wind load and snow load as per requested.


Certification:

ISO Australia AS/NZS 1170.2 - Wind load report, SGS report-Chemical & Physical test.


Mode Number

  AS-SR-MRMS

Brand Name

  ART SIGN
Specs

  Natural & Black

Material

  Anodized Aluminum 6005-T5 & Stainless Steel 304

Application
   mounting solar panels on metal roof Packing
  wooden case
Keyword
  pv panel mounting brackets factory Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

ART SIGN Metal Roof
ART SIGN Metal Roof

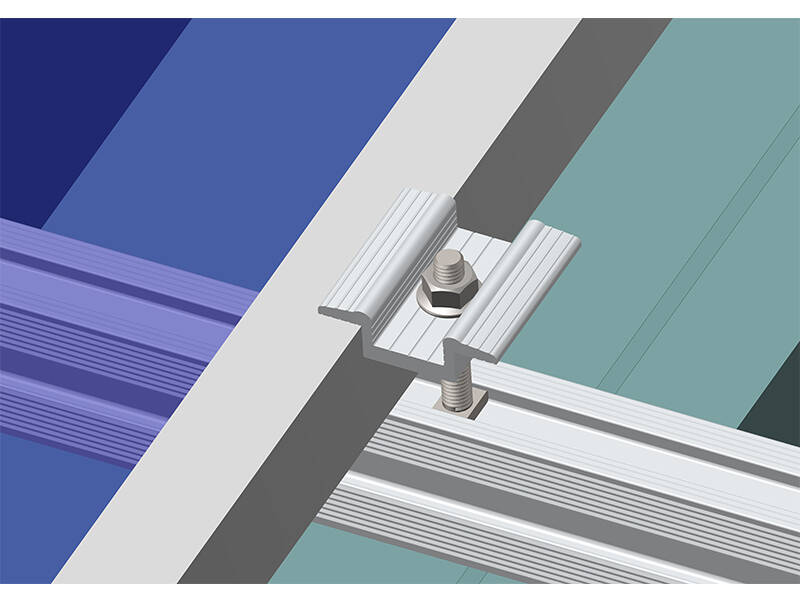

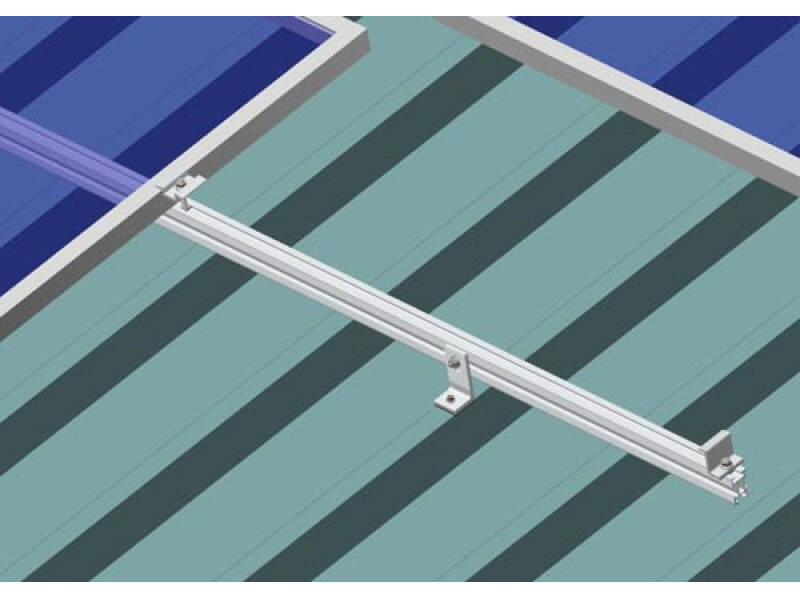

Metal Roof Solar Panel Installation
Rail Splice Installation

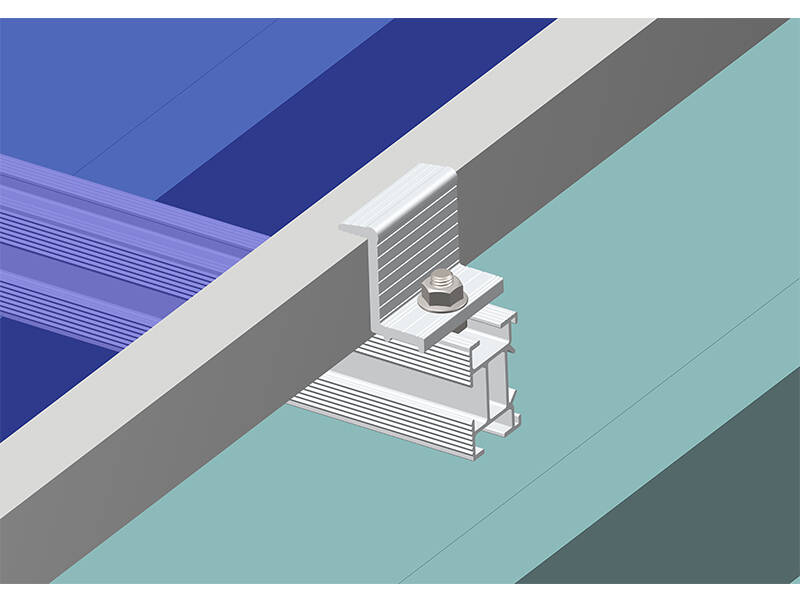

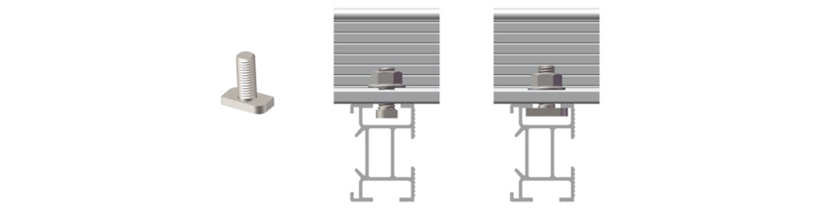

T Bolt Installed on the rail

ART SIGN T Bolt Installed on the rail


Metal roof solar mounting system with different rails

ART SIGN Metal Roof D rail

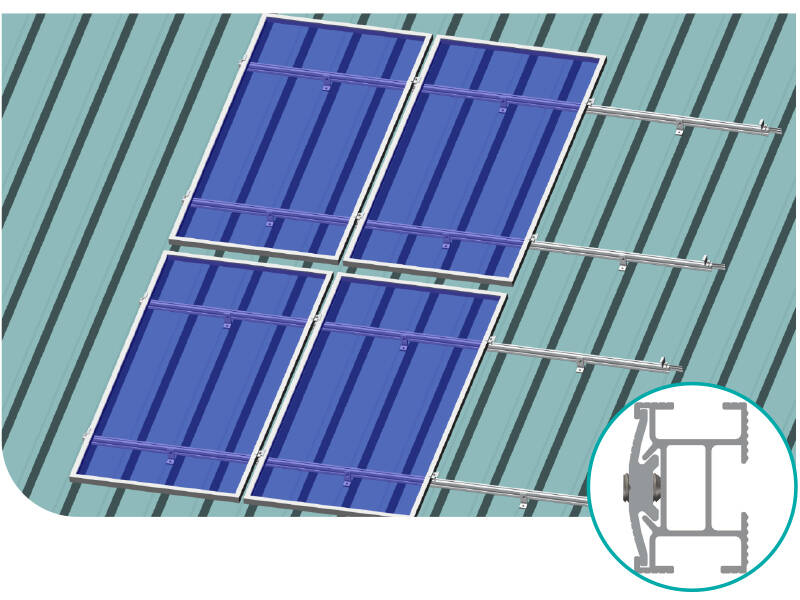

ART SIGN Metal Roof CR rail
D Rail solar panels roof mounting system
CR Rail solar mounting systems for metal roofs


Installation step

ART SIGN Metal Roof installation step

Step 1

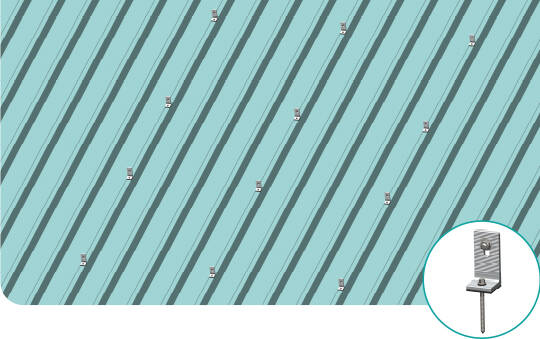

L foot installation on the rooftop by using self tapping screw


ART SIGN Metal Roof installation step

Step 2

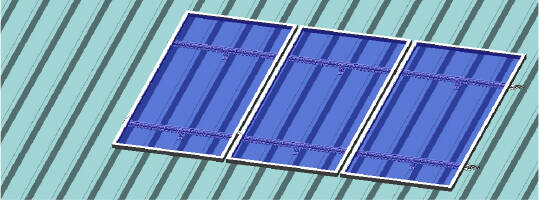

Solar rail and rail splice installation


ART SIGN Metal Roof installation step

Step 3

Solar panel installation with mid clamp and end clamp



ART SIGN solar mounting package

ART SIGN Metal Roof packages
ART SIGN Metal Roof packages
Each pre-assembled into carton
Packing into wooden pallet


ART SIGN Metal Roof Case Study
ART SIGN Metal Roof Case Study

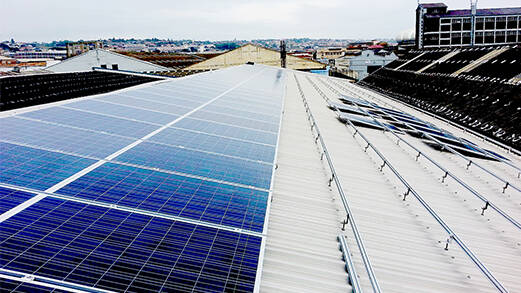

Installation case in Dominica
Installation case in Sri Lanka
ART SIGN Metal Roof Case Study
ART SIGN Metal Roof Case Study

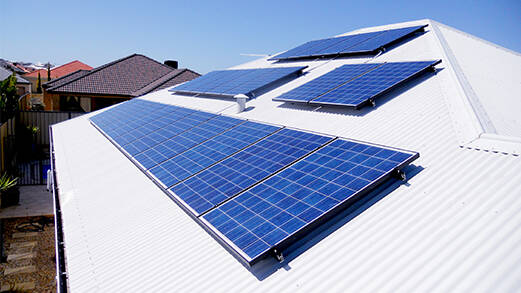

Installation case in Australia
