Customized aluminum profile supplier roof mounting solar rail #59

solar panels mounting Rail #59 is suitable for various roofs.

Item NO.:
AS-A-R59
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

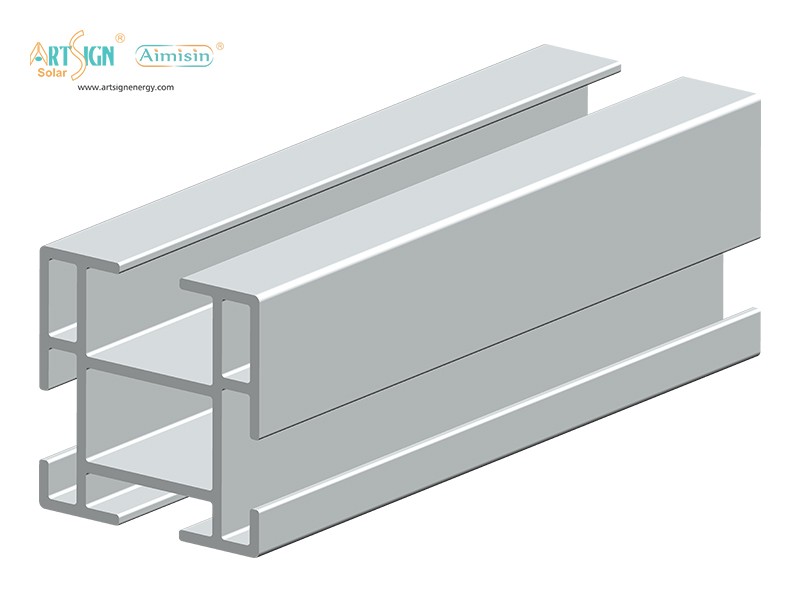

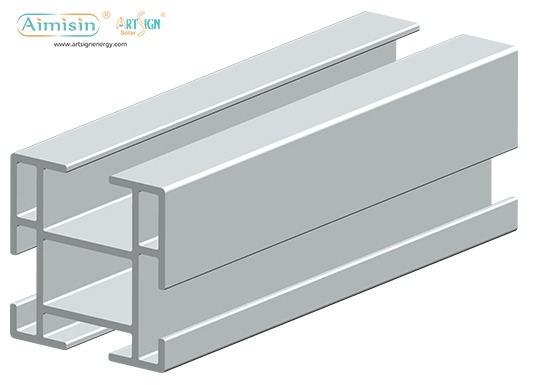

Customized aluminum profile supplier roof mounting solar rail #59

Design Features
— Square profile 40*40mm
— Matched with T bolt, quicker and easier installation

Mode Number	AS-A-R59	Brand Name	ART SIGN
Specs	40*40mm	Material	Aluminum 6005-T5
Application	solar panel roof mounting system	Packing	wooden case
Keyword	China durable roof solar rails manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

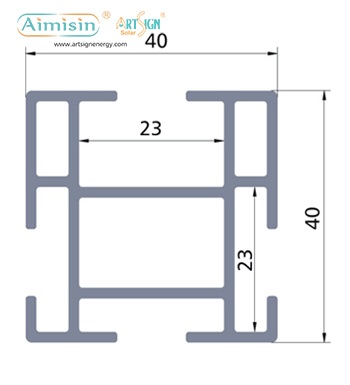

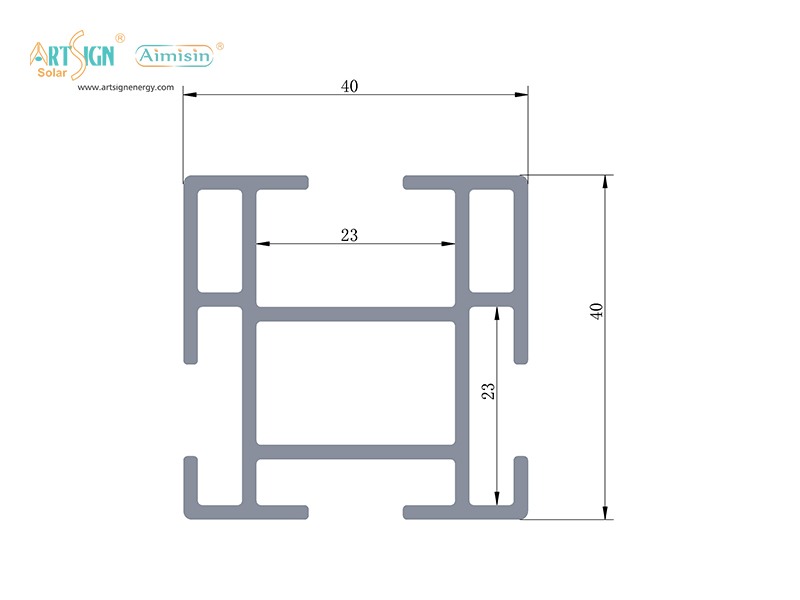

Length is customized	Square aluminum profile: 40*40mm

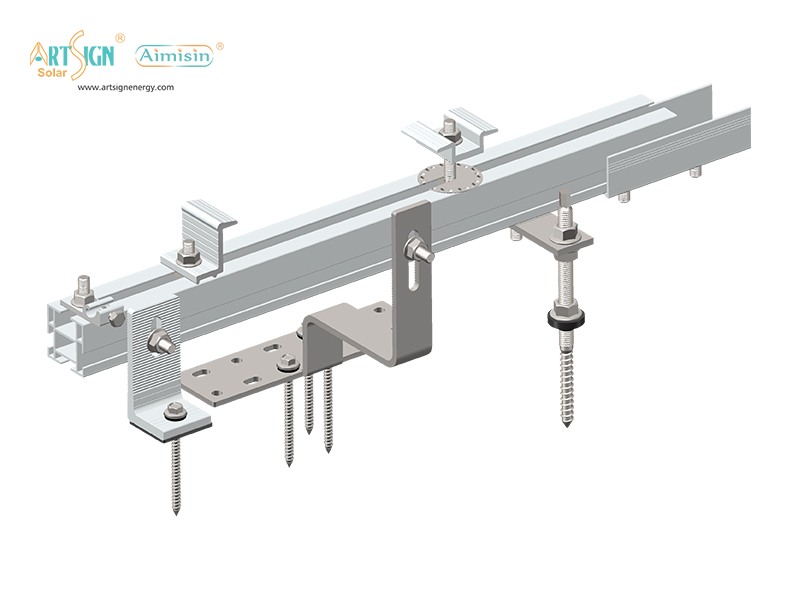

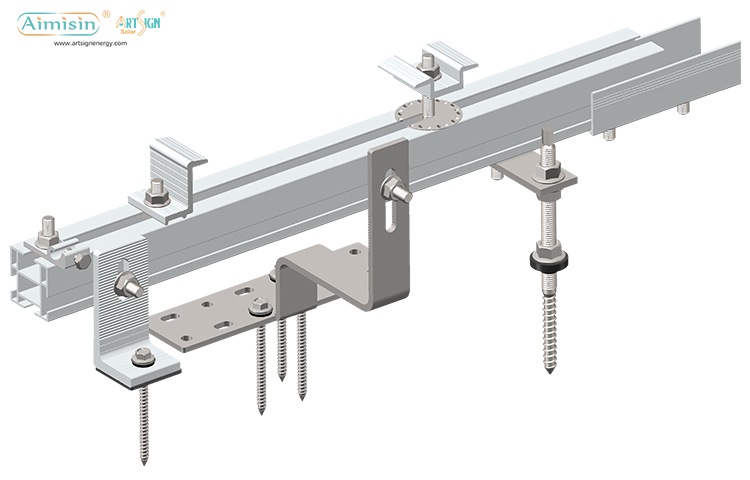

Can be applied for metal sheet roof, tile roof, flat roof.

ART SIGN durable roof solar rails manufacturer

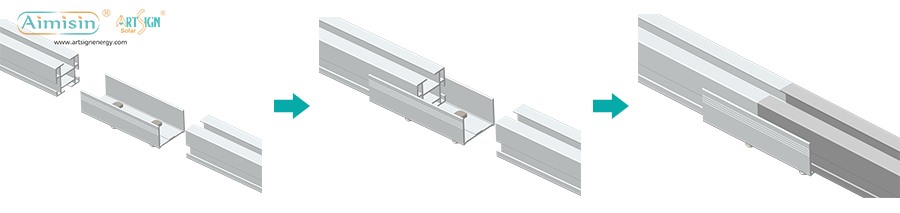

Rail splice installation

ART SIGN durable roof solar rails manufacturer

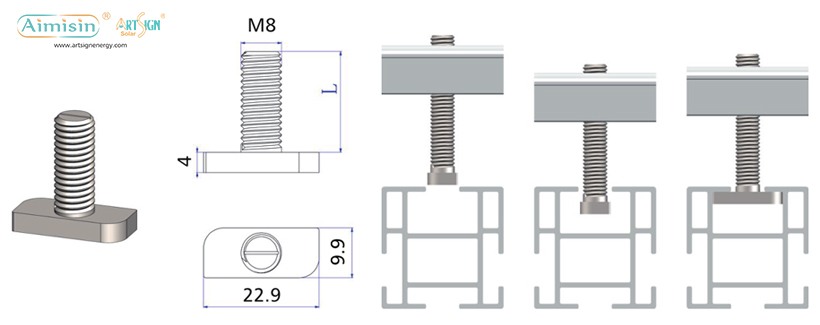

Hammer bolt installation

ART SIGN durable roof solar rails manufacturer

ART SIGN solar mounting related accessories

Click to see more T bolt series.


AS-R-09B	AS-R-09H	AS-RS-09	AS-R-15

AS-RH-15C	AS-A-R59
