ART SIGN ODM manufacturer aluminum rail for solar panels

D nut rail is stronger and more applicable for strict wind load and snow load requirements.
  • Item NO.:

    AS-DR-20
  • Lead Time:

    7-15 days for LCL, 20 days for FCL
  • Product origin:

    China
  • Shipping Port:

    Xiamen port, China
  • Payment:

    100% TT, L/C at sight
  • Surface Treatment:

    natural or black

  • Product Detail


ART SIGN ODM manufacturer aluminum rail for solar panels


Design Features

— D1 nut is wider, which is suitable for D nut rail series.
— Available in various finishes: mill, silver anodizing or black anodizing.

Mode Number

  AS-DR-20

Brand Name

  ART SIGN

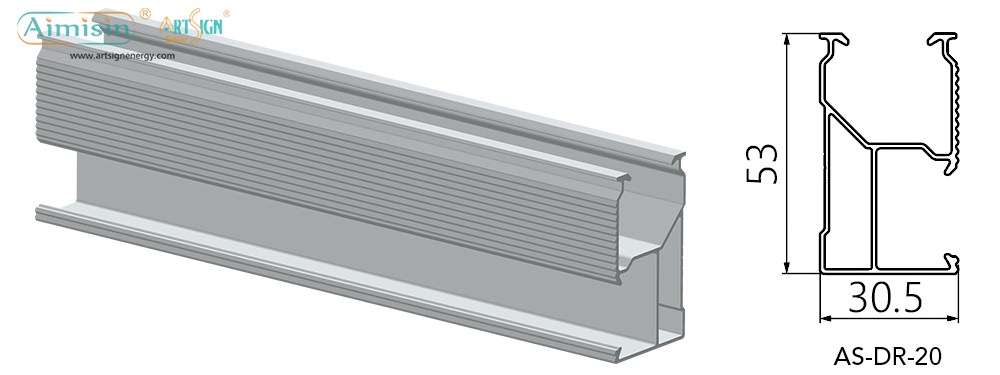

Specs

  W30.5*H53mm

Material

  Aluminum 6005-T5

Application
   Aluminium rails for solar panels Packing
  Wooden Pallet
Keyword
  Factory OEM solar rail for pv mounting Certificate
  ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life
  25 years
Quality Warranty
  20 years


ART SIGN solar mounting details

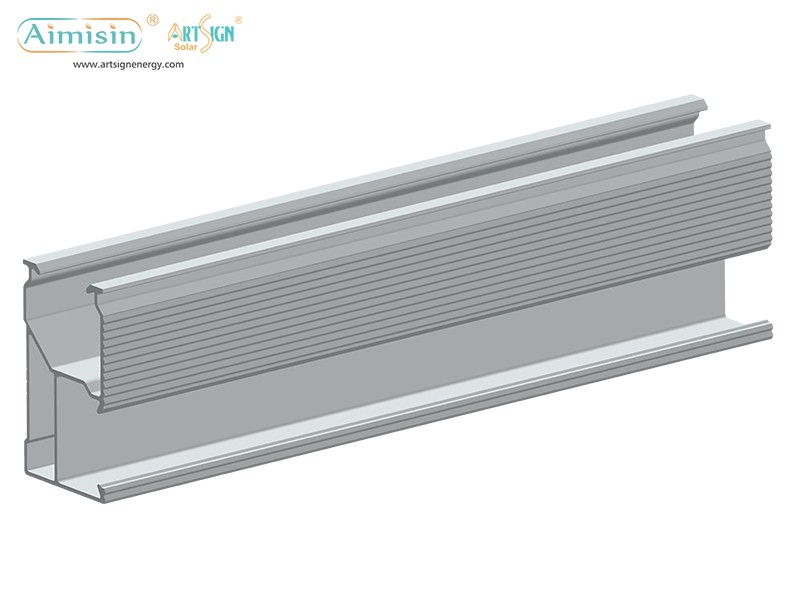

ART SIGN aluminum pv mounting rail AS-DR-20

ART SIGN d nut
ART SIGN d nut installation step
D1 nut: W23.6mm × H8mm, cutting length 23mm
Installation Method
ART SIGN aluminum pv mounting rail AS-DR-20

①. 1pcs anodized aluminum mid clamp + 1pcs SUS304 allen bolt M8x50mm + 1pcs SUS304 spring washer + 1pcs anodized aluminum D nut

②. There're three options for end clamp, please refer to below optional accessories for details

③. Two options for earthing kit.  (1).Cable channel inner diameter 5.8mm   (2).Cable channel inner diameter 8.0mm

④. Four different heights' L feet

⑤. Refer to the optional accessories table for more options


  Package Type
  Inner packing: Kraft paper packaging ART SIGN pv racking rail AS-DR-20 packages
  Outer packing: wooden case / pallet


ART SIGN pv racking rail AS-DR-20 case study
