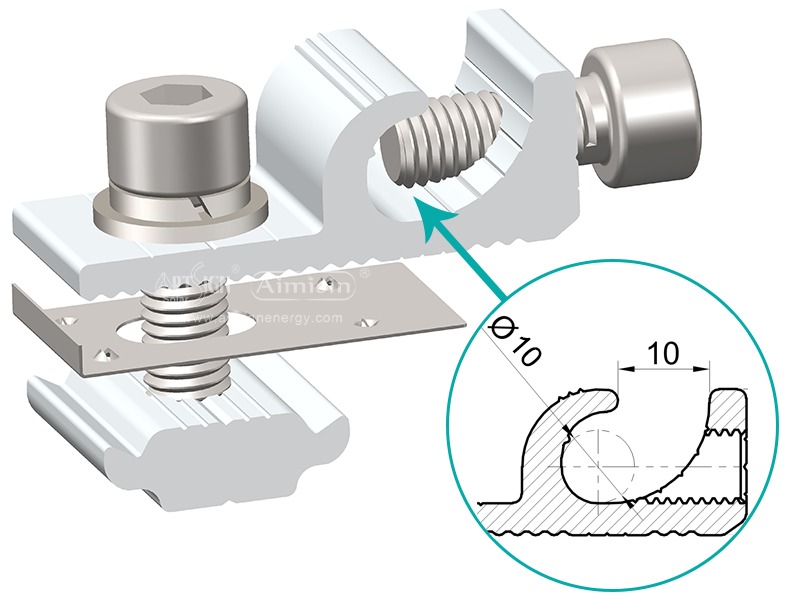

Aluminum solar structure earthing kit
|
Place of Origin |
Xiamen China (mainland) |
Brand Name |
ART SIGN |
|
Mode Number |
AS-EK-03 |
Specs |
20mm width |
|
Material |
Aluminum 6005-T5 |
Application |
solar panel roof mounting system |
|
Surface treament |
Anodized above 10um |
Packing |
carton/wooden pallet |
|
Color |
Silver |
Certificate |
ISO/CE/SGS/AS/NZS/JIS/ASCE7-10 |
|
Keyword |
Ground earthing clip for solar panel brackets |
Service life: |
25 years |
|
Quality Warranty |
20 years |
|
|
|
Selling Units |
per meter/ per pcs |
Package Type |
Inner packing:poly bag and carton; Outer packing:wooden pallet | ||||||||||
|
Lead Time： |
|
||||||||||||

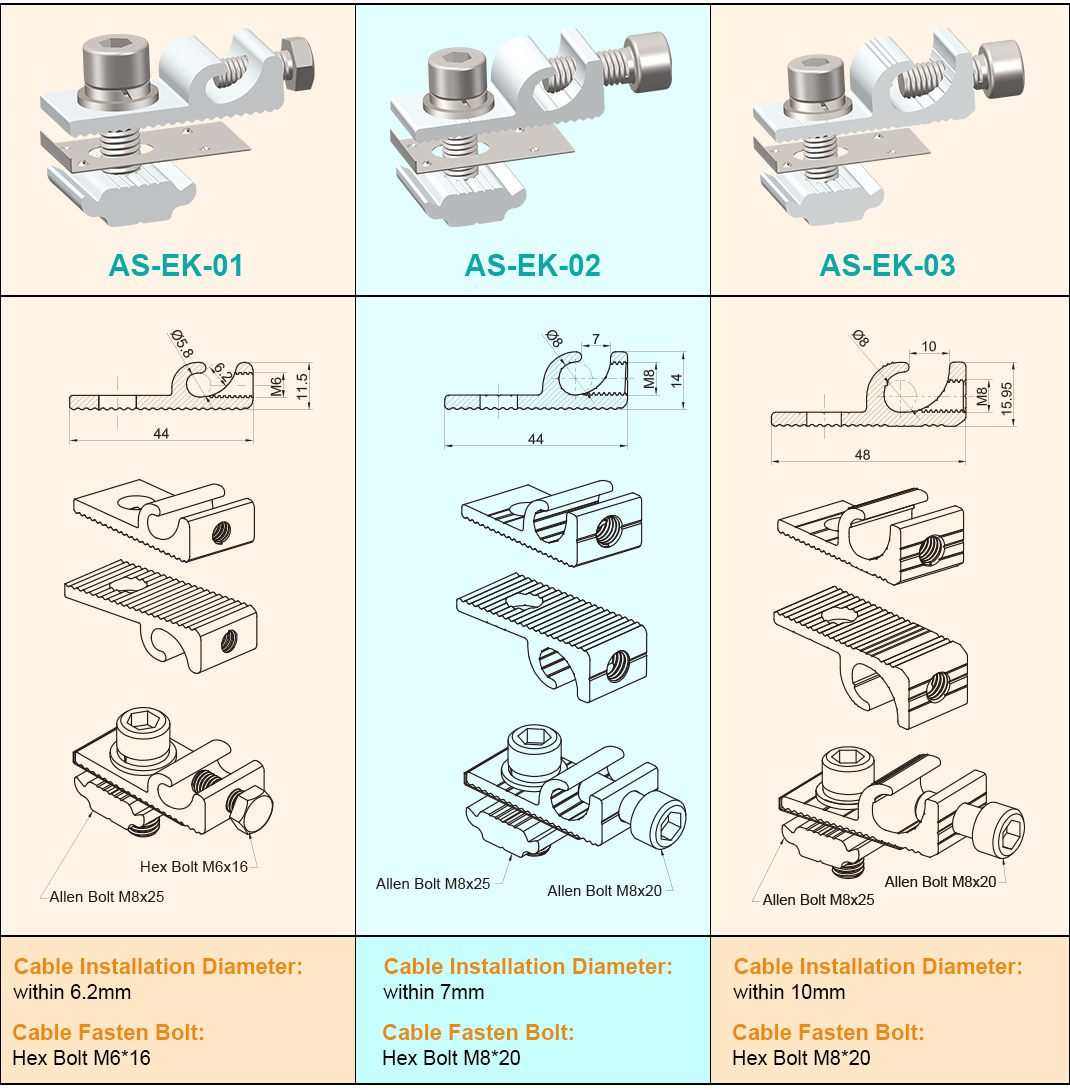

Various design of solar structure earthing kit for choice, different design can installed with different cable size.
Below are more solar grounding lugs and earthing clips for various type of rails.
 |
|
 |
|
 |
|
 |
|
AS-BJ |
|
AS-EC-01 |
|
AS-EC-02 |
|
AS-EC-03 |
 |
|
 |
|
 |
|
 |
| AS-EC-04 |
|
AS-EK-01 |
|
AS-EL |
|
AS-EL-01 |
 |
|
 |
|
 |
|
 |
|
AS-EL-02 |
|
AS-EL-03 |
|
AS-EL-04 |
|
AS-EL-05 |
 |
|
 |
|
 |
|
 |
|
AS-EL-06 |
|
AS-EL-07 |
|
AS-EL-08 |
|
AS-EL-09 |
 |
|
 |
|
 |
|
 |
|
AS-EL-10 |
|
AS-EL-111 |
|
AS-EL-12 |
|
AS-EL-13 |
 |
|
 |
|
 |
|
 |
|
AS-EL-14 |
|
AS-EL-15 |
|
AS-GL |
|
AS-EK-16 |
 |
|
 |
|
 |
|
 |
|
AS-EK-02 |
|
AS-EK-03 |
|
AS-EL-17 |
|
AS-EL-22 |
