Aluminum pipe sleeve connection PV rack mount solar racking systems

Anodized aluminum piple sleeve connection for φ76mm galvanized pipe.

Item NO.:
AS-VPS-02
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
Anodized

Inquiry now

Product Detail

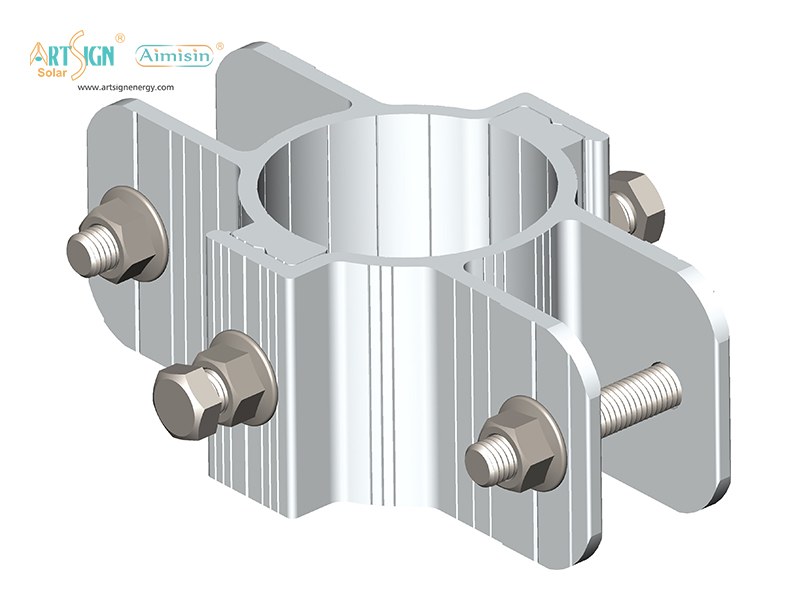

Aluminum pipe sleeve connection PV rack mount solar racking systems

Design Features
— Easy to install, just need to fasten four bolts.
— Universal use for connecting φ76mm galvanized pipe and aluminum back bar for the solar mounting.

Mode Number	AS-VPS-02	Brand Name	ART SIGN
Specs	For φ76 pipe	Material	Aluminum 6005-T5
Application	Hot dipped galvanized steel pipe solar brackets	Packing	carton
Keyword	China top solar racking systems manufacturer	Certificate	ISO / CE / TUV / SGS / AS/NZS / JIS / ASCE7-10
Service Life	25 years	Quality Warranty	20 years

ART SIGN solar mounting details

ART SIGN solar racking systems

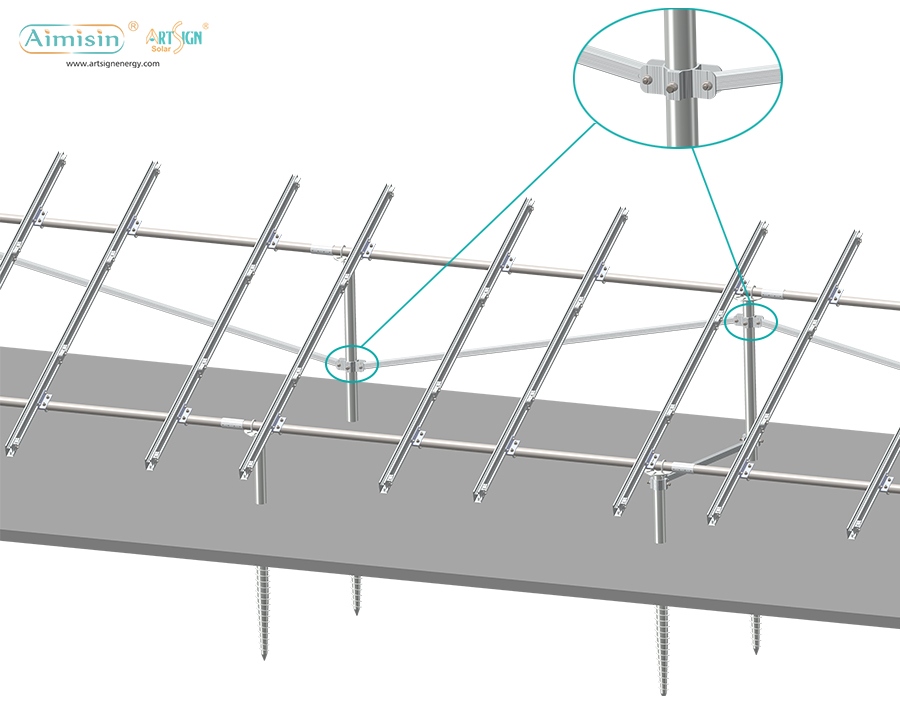

Fixed on φ76mm pipe to connect two back bracings.

ART SIGN solar mounting related accessories

Click to see more PV Aluminum components.


AS-BPS-01	AS-BPS-02	AS-VPS-01	AS-VPS-02

AS-VPS-05	AS-SPS-A	AS-SPS-B
