aluminum connectors for solar ground mount

Aluminum connectors components pipe sleeve for solar panel ground mounting AS-BPS-02

Aluminum connectors piple sleeve AS-BPS-02 is used to connect cross pipe, front feet and back feet. It's widely used in solar panel ground mounting.The material is Anodized aluminum 6005-T5. Products are preassembly, easy to be install to save labour costs and installation time. ArtSign solar is top China solar ground mount manufacturers, to buy from us, you can not only get the cheapest ground mount solar racking systems but also will have 20 years warranty.

Item NO.:
AS-BPS-02
Lead Time:
7-15 days for LCL, 20 days for FCL
Product origin:
China
Shipping Port:
Xiamen port, China
Payment:
100% TT, L/C at sight, Paypal, Western union,
Surface Treatment:
silver

Inquiry now

Product Detail

Aluminum connectors components pipe sleeve for solar panel ground mounting AS-BPS-02

Place of Origin	Xiamen China (mainland)	Brand Name	ART SIGN
Mode Number	AS-BPS-02	Specs	φ60mm
Material	Aluminum 6005-T5	Application	framed panel
Surface treament	Anodized above 10um	Packing	cartons, plywood pallets / cases
Color	Silver	Certificate	ISO/CE/SGS/AS/NZS/JIS/ASCE7-10
Keyword	aluminum connectors for solar ground mount	Service life:	25 years
Quality Warranty	20 years

Selling Units

per meter/ per pcs

Package Type

cartons, plywood pallets / cases

Lead Time：

Quantity(Sets)	1 - 5000	5001 - 10000	10001 - 100000	>100000
Est. Time (work days)	1 - 3	3 - 7	7 - 15	To be negotiated

Aluminum connectors components pipe sleeve for solar panel ground mounting AS-BPS-02

Customized cutting length to be suitable for different wind load and snow load requirements.

We have different diameters to be suitable for φ60mm, φ76mm, etc. hot dipped galvanized steel pipes.

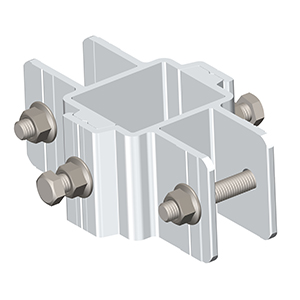

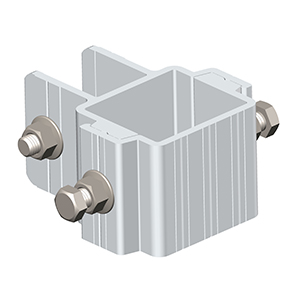

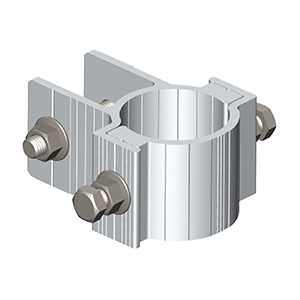

AS-BPS-01	AS-BPS-02	AS-SPS-A

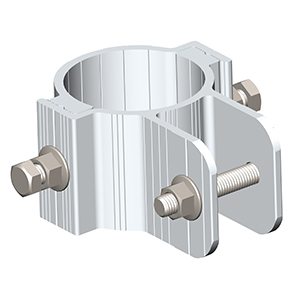

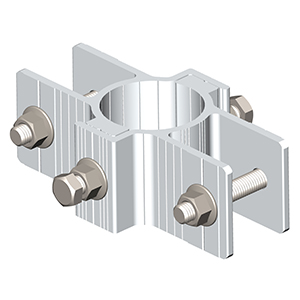

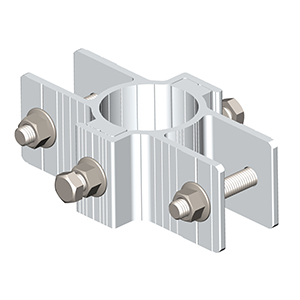

AS-SPS-B	AS-VPS-01	AS-VPS-02
