Design Features

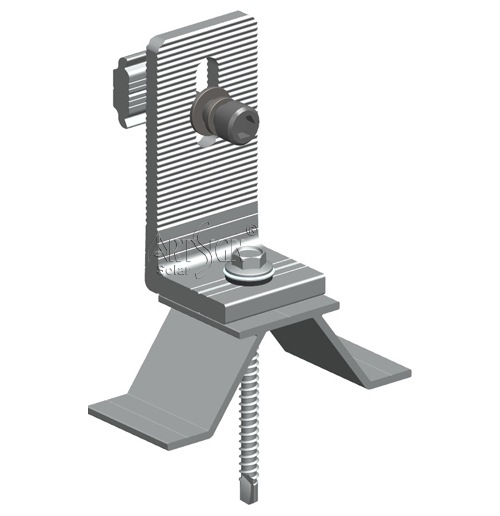

— Precision Trapezoidal Profile Match: Custom-contoured to fit the exact geometry of trapezoidal metal sheets, distributing load evenly to eliminate roof collapse, sagging, and structural sheet deformation.
— Versatile L-Foot Integration: Compatible with standard L-feet to provide rigid, adaptable support for a wide variety of aluminum solar mounting rails.
— Centered Self-Drilling Screw Drive: Secures directly through the center using heavy-duty self-drilling screws, ensuring balanced clamping force and rapid installation.

— Integrated EPDM Rubber Gasket: Equipped with premium weatherproof EPDM rubber pads that create a durable, watertight seal to completely block water ingress and prevent corrosion.

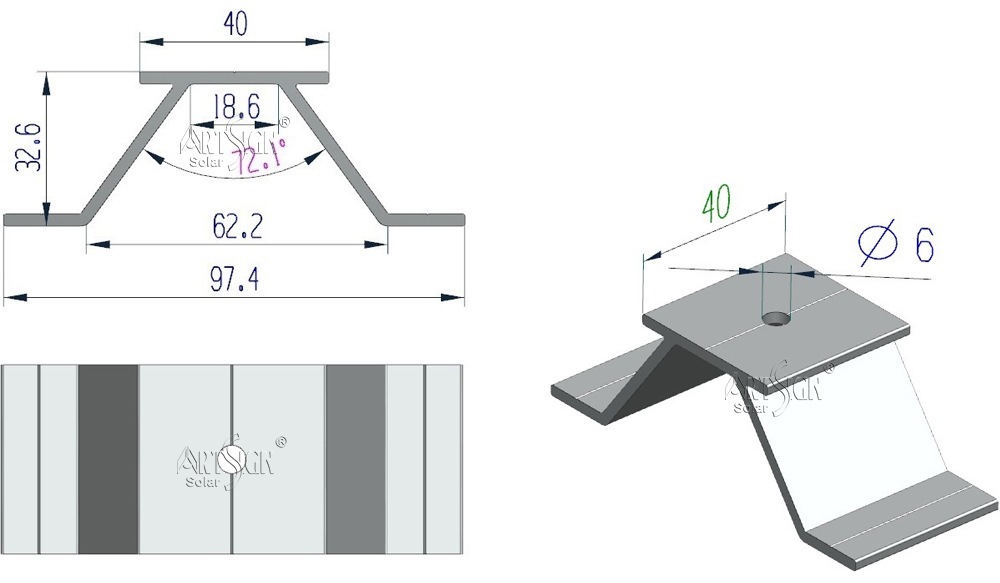

• Flexible Dimensions: The standard length is 40mm, while customized lengths can be fully tailored to meet your specific project requirements.
• Wide Angular Adaptability: Perfectly engineered to fit trapezoidal sheet metal roofs with an angle range of 72.1°.

Versatile L-Foot Compatibility

Engineered for seamless integration with L-feet, enabling universal compatibility with various aluminum mounting rails to securely support solar panels.

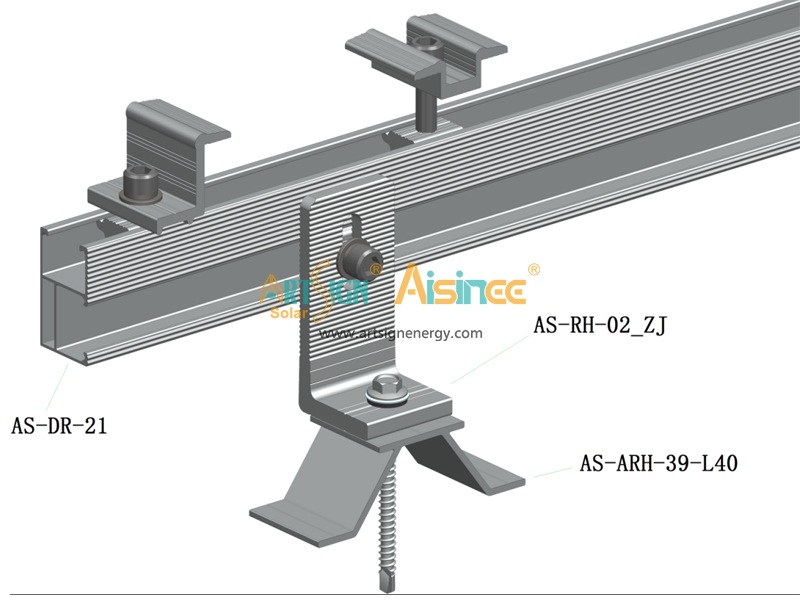

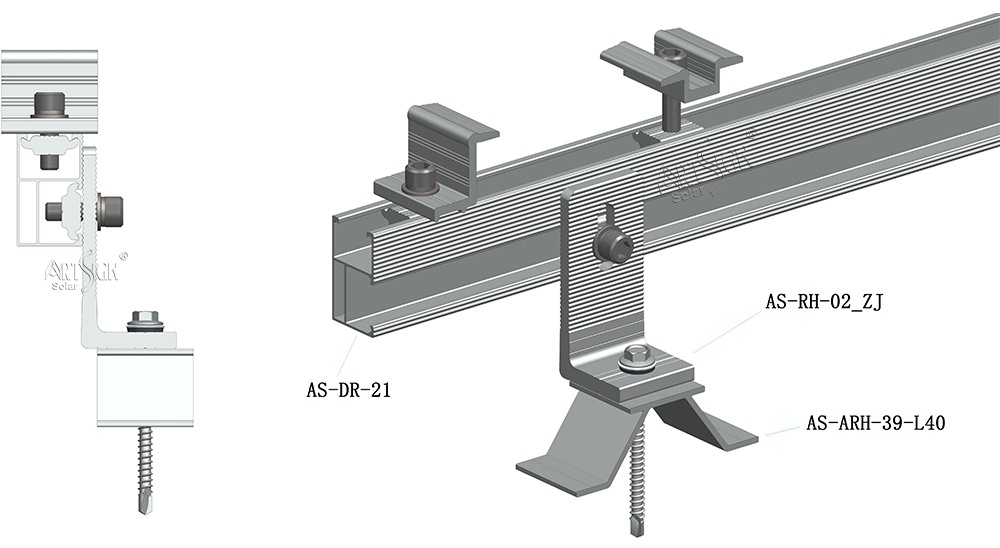

For example, pairing this clamp with an L-foot allows direct attachment to DR21 rails, providing a rigid, height-adjustable framing structure tailored to trapezoidal metal roofs.

Inner Packing: carton	Outer Packing: pallet

Customized cutting length to be suitable for different wind load and snow load requirements.
