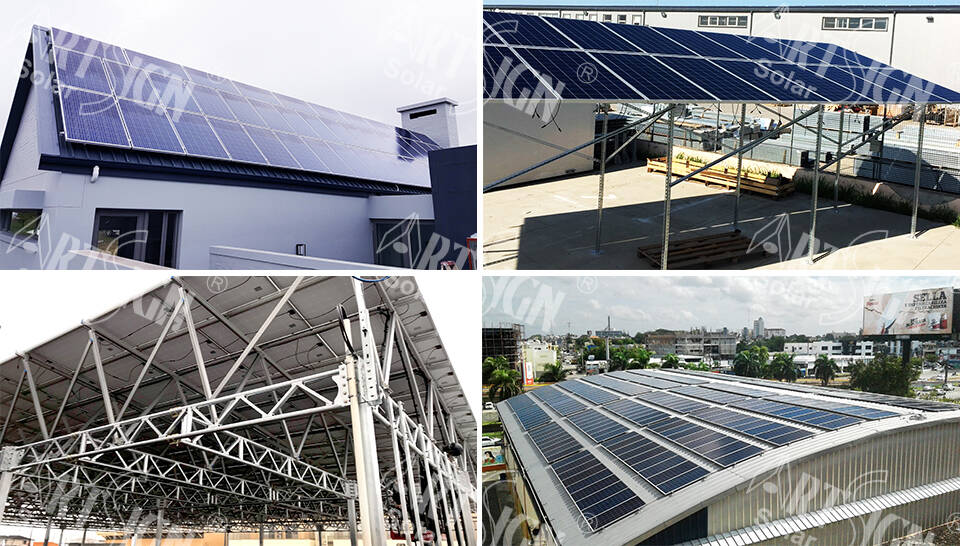

1. Product Summarization Solar Bracket is designed and manufactured independent by our company, it uses aluminium alloy sectional material as the main materials. Special aluminium alloy bracket and stainless steel base give our solar bracket these characteristics: light, stronge, easy remove and install, stainless, stable and easy maintenance. This product can be widely applied in the tile roof, tin roof, flat roof, container and many other palces.

2. Overview of system components This product contains Rail, Tin Roof L Foot, Tile Roof Foot, End Clamp, "Z" Foot, Mid Clamp, Bolt, Hanger Bolt, Rubber Mat, Rubber Washer, Washer, Spring Washer and so on items.

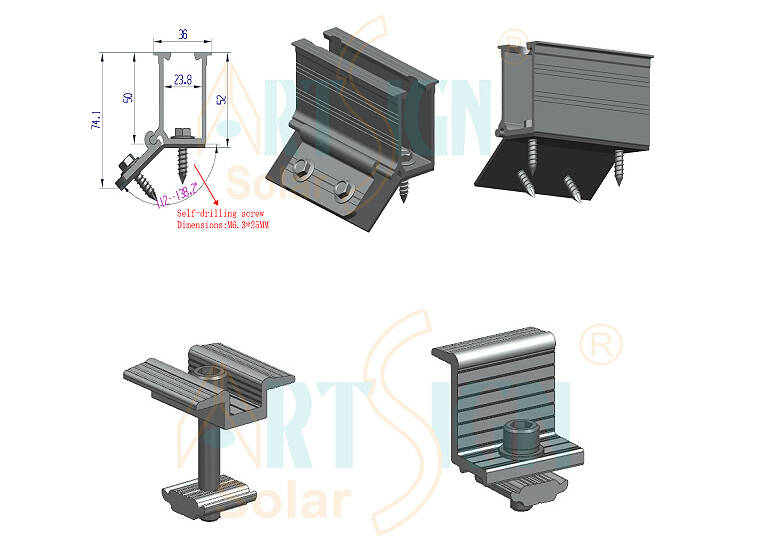

This week we would like to introduce below new mould.

Design Features:

1. This installation no need rails for the tin roof, just use brackets to match the end clamps and mid clamps, they will be pre-assembled which saving the installtion time and labor cost.

2. This design is also stable and strong enough as use rails.

3. The same mounting system can be installed landscape panel or portrait panel.

Expect this new mould solar brackets type, we have many other pv mounting structure, not only aluminum structure, but also have hot dipped galvanized steel Q235. Besides, we are using a new material called hot-dip zinc-aluminum-magnesium alloy-coated steel for solar mounting. And we have very professional designers and engineers,We are constantly developing new models, Next week, we will update another new mould. Thank you for your attention!

More information about solar brackets, pls contact Art Sign, he will provide more details to you about solar mount structure. Email: sales@artsign.net.cn Tel: + 86 180 3023 5875
