What are the most important components of solar mounting system? Jan 23,2023

Xiamen art sign co.,ltd can produce 15-20MW of solar mounting structure per month, and we mainly supply solar racking system for roof and ground .Whether you are looking for a solar mounting solution for a pitched roof, flat roof and ground . Different kinds of solar panel mounting allow for design flexibility, varied aesthetics, and greater solar generation. Here at Art Sign Solar we have 16 years of experience designing and manufacturing various different Solar PV mounting systems.

Solar panel racking equipment is built with 3 main components

1)Roof attachments
2)Module clamps
3)Solar Mounting rails
Each tool plays a key role in how the solar mounting structure supports your panels,to ensure you get the most amount of solar power out of them.

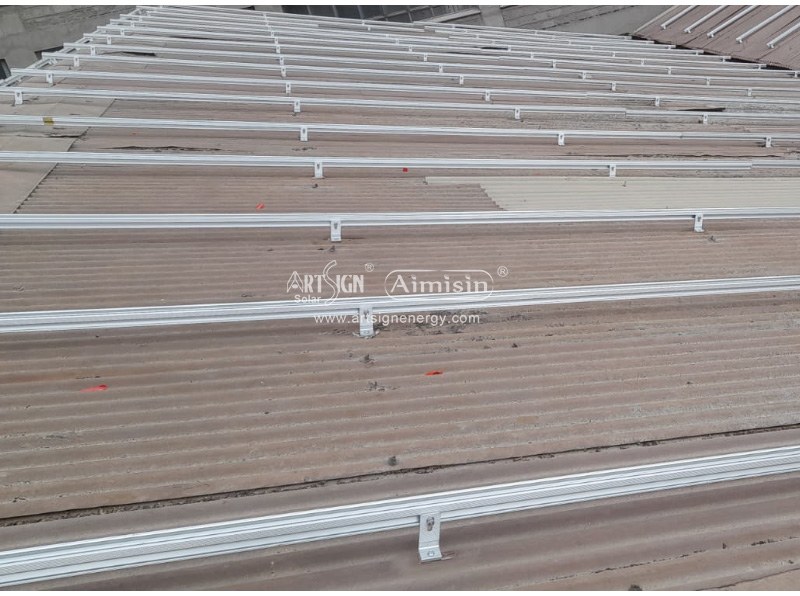

Roof attachments
The roof attachments are the fasteners that will be drilled into your roof in order to secure the solar racking system in place
The holes there drills create will be surrounded by ‘flashing ‘,which is a plastic or metal shield that is inserted between shingles to prevent water from getting into the hole.However,roof attachments differ for each roof type.
To dig a little deeper,take a look at more information on installing solar panel on clay tile roofs,metal roofs ,and flat roofs.

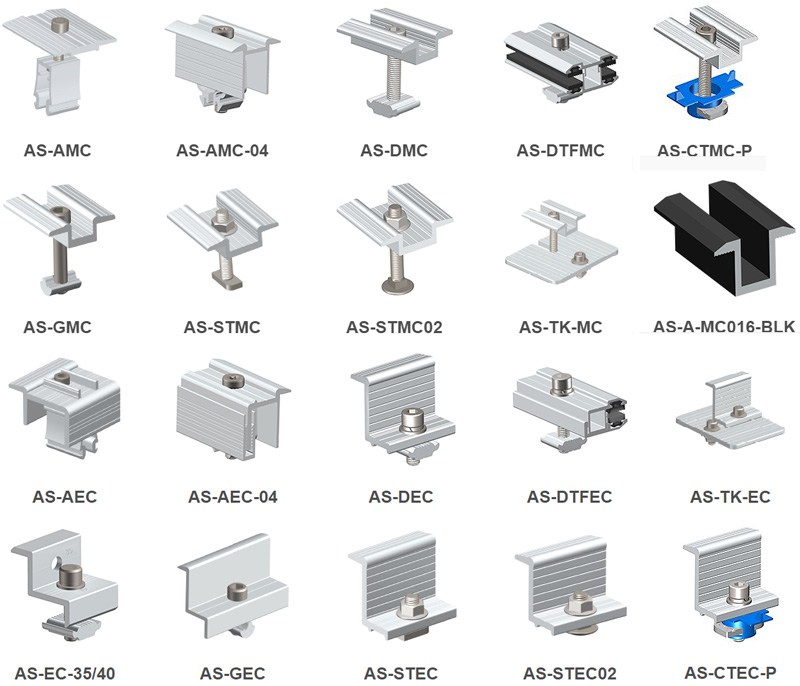

Module Clamps
The module clamps attach the drilled-in roof attachments to the mounting rails. There are a few different module clamp types for each angle and corner of the solar panel.

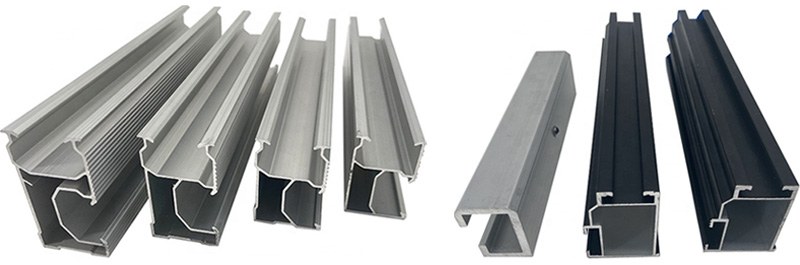

Solar Mounting Rails
After drilling into the roof, the roof attachments are then connected to mounting rails via module clamps that will then support the solar panels.

Although there are railless racking options available, rails are most commonly used because they can be secured to most roof angles, and because many installers are trained using rail mounting systems.

Art Sign is a leading manufacturer of solar racking system in solar industry. We provide design & manufacture & sales & service customers support to all of our clients.We are working with companies from Japan, Netherland, France, Mexico, Germany, UK, Brazil, Spain, Thailand, Australia, South Africa,Vietnam ,Canada etc to provide top quality with best services.

For any inquiry for solar panel mounting system, pls contact us, E-mail: sales@artsign.net.cn, Whatsapp / Wechat Skype: +86 18030235875, thanks.
