“Solar Ground mounting system-Ground screws work in a wide range of soils and it comes down to how you design the ground screw to accommodate where you’re trying to install into. “On a looser site, you might have a longer or wider ground screw vs. a rocky site. We can accommodate those different soil conditions with the design of the ground screw itself.”

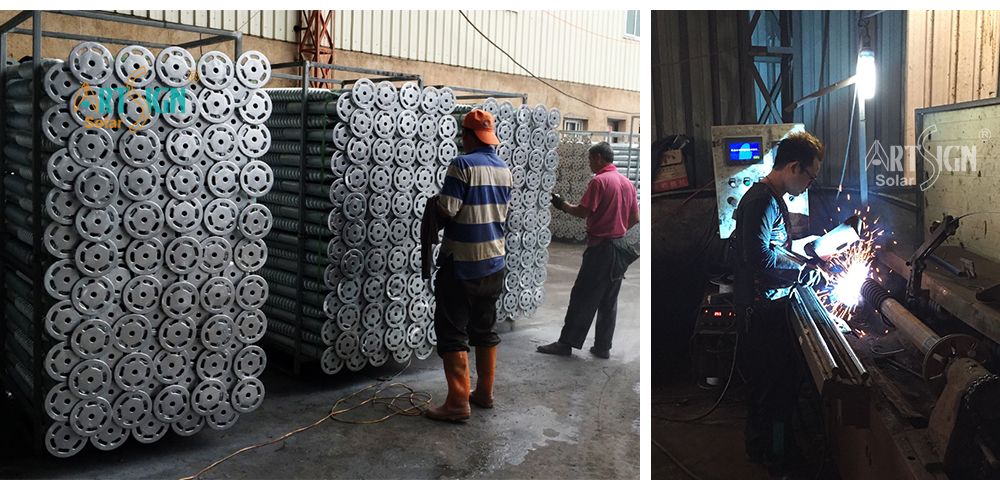

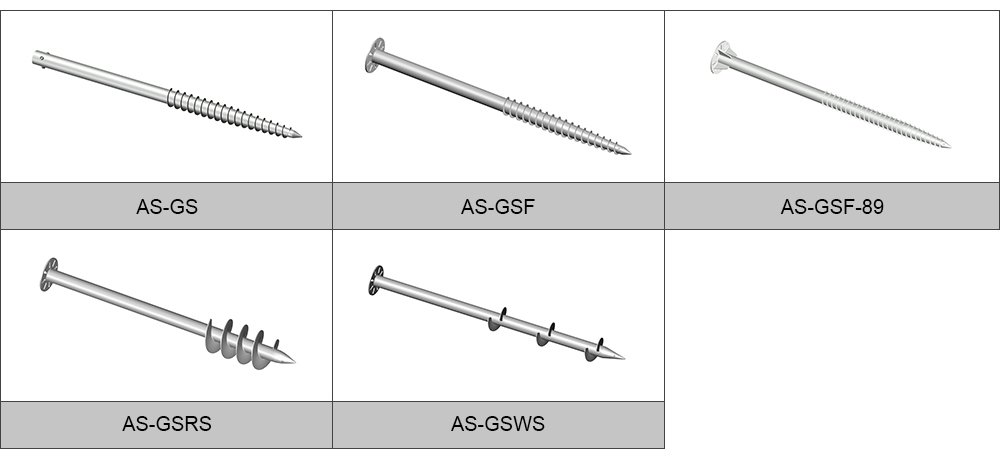

Ground screws work similarly to helical piles, also creating a cone of soil that resists upward tension. The ground screw’s difference in design lies in its threaded end that leads to a point, much like in carpenter screws. Art Sign company fabricates and installs ground screws of varying sizes to adapt to different soil types.

To install a ground screw in dense soils, contractors core a pilot hole, set the screw inside and drive the mount into the ground using a rotary hydraulic drive or proprietary machinery. In medium-dense to loose soils, ground screws can be driven directly into the ground.

These mounts were built to work in rocky landscapes. The pointed, threaded end is outfitted with a forged chisel-tip that is able to push smaller rocks aside, and installers can even drill a starting hole into larger stones to rotate the ground screw directly into the ledge.

This mounting pv solution has a smaller post surface area similar to helical piles but comes in longer post lengths to ensure proper embedment depth. A set of racking can attach to ground screws of various lengths, keeping panels level while adjusting to varying topography.
