New design of solar mounting kits for flat rooftop Jul 22,2024
Art sign is a professional Designer and manufacturer.

Who specialized in the design, development and production of solar panel mount Since 2006.We own an excellent team that is more than 80 employees, with 8500 m2 plant and 2000m2 office area .Our Capacity: 20-30 MW Mounting Structures per month.And So far we have developed more than 100 solutions of pv roof mounting and ground mounting system and thousands of accessories.


Recently solar bracket for flat commercial and industrial rooftop is growing.

Below I will introduce one of our new design for solar panel flat roof mounting structure.


solar panel mountpv roof mounting

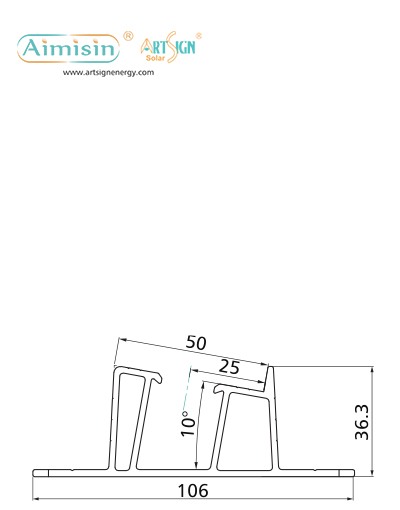

Dimension of front leg

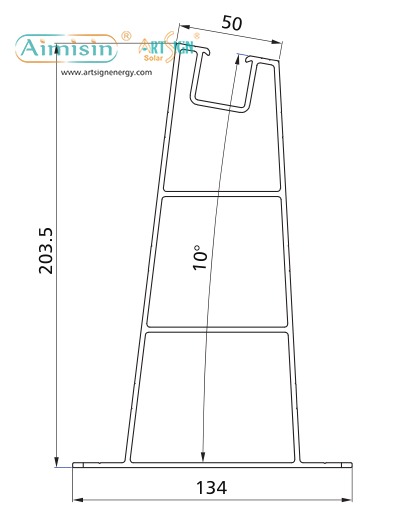

Dimension of back leg
Dimension of front leg
Dimension of back leg

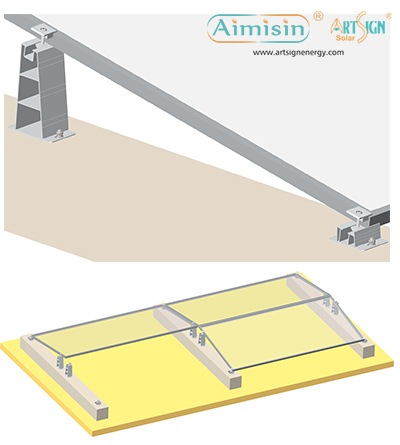

Concrete block

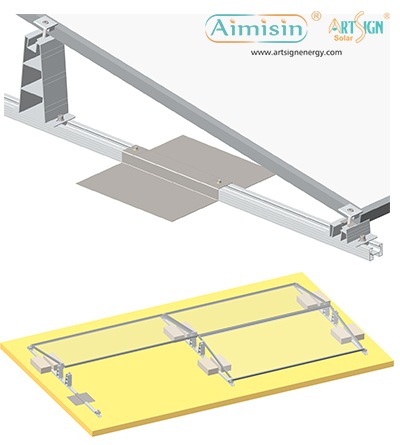

Ballasted metal sheet
Concrete block
Ballasted metal sheet


By placing modules East-West, clearance for module shading can be avoided, more modules can be placed in the same area, and can increase the power production.
Product  Advantages of this mounting structure solar panel:


1.Widely used for all kinds of solar panels
Versatile solar panel mounting brackets can be used on the width of panels more than 1065mm would be ok.


2.Light weight but strong
Light weight of aluminum alloy material,it is easy for transportation .


3.Easy to be installed and Ajust
Quick assembly with the fasteners.Cost-effective, reducing the installation time and labor.


4.Non-penetrating, preserving roof intergrity
Using the concrete block or ballasted metal sheet to protect the rooftop.


5.Customizable packing
Customizable packing for resale or bulk orders.


In short the front and back leg brackets can support the solar panels,it is simple and easy to install and remove. It can be used for most solar panels. This type of solar mounting system is developed to mount the modules tilt a 10 degree angle of the corrected solar panels.

For any inquiry for solar panel mounting system, pls contact us, E-mail: sales@artsign.net.cn, Whatsapp / Wechat /Skype: +86-18030235875,thanks.
