Probably the most important consideration when it comes to installing your solar energy system is the construction and selection of solar panel mounts. The success of a solar system depends on having enough exposure to sunlight in order to trap enough usable solar energy for conversion to usable energy.

Here to share you an easy and quick way of how to install a ground mounting structure:

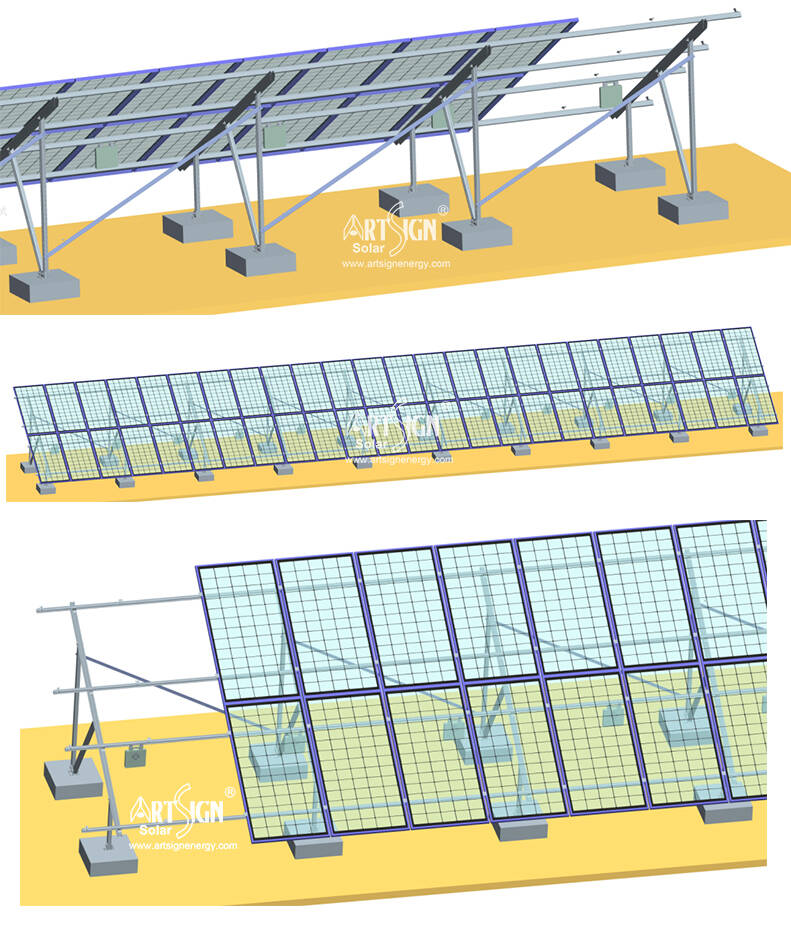

2×14 panel array Aluminum ground mounting system

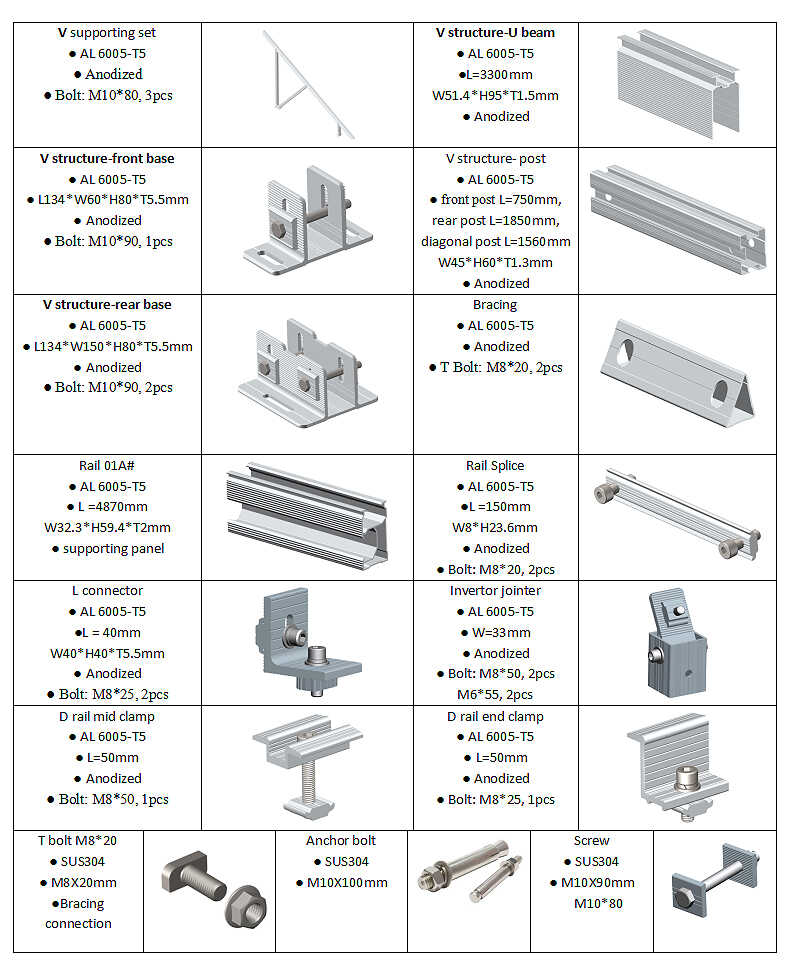

Components list

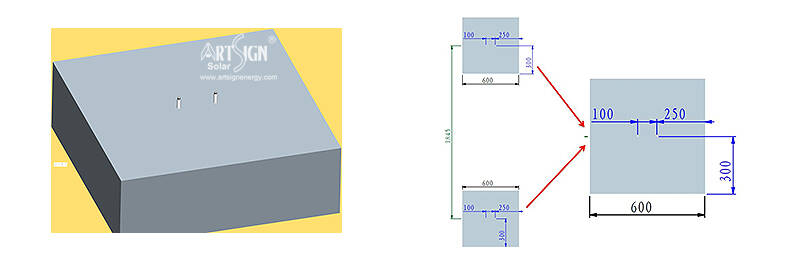

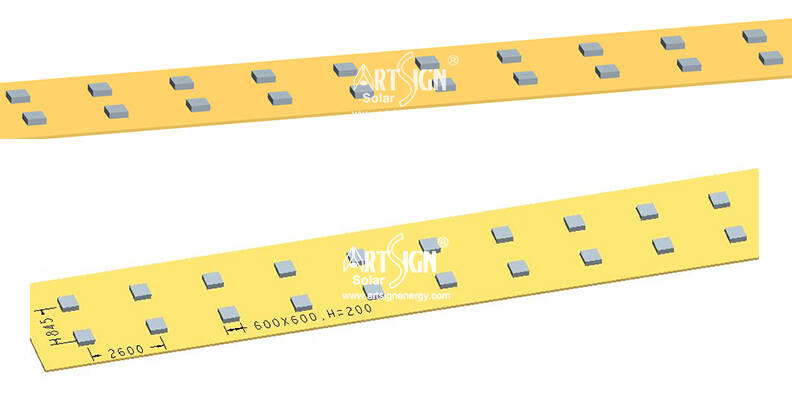

STEP ONE: Cement foundation placement

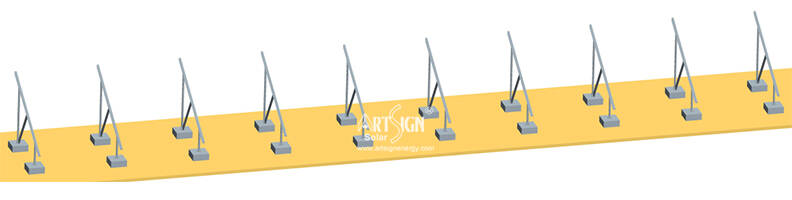

STEP TWO: Embedded anchor bolt

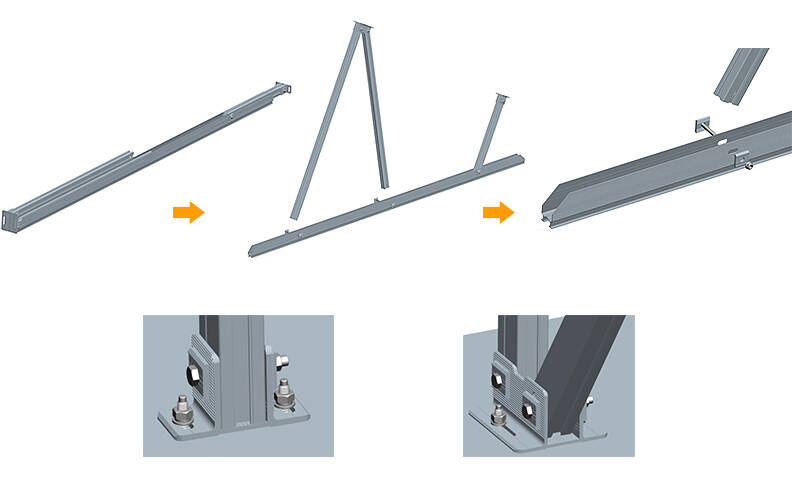

STEP THREE: V structure installation

Open the pre assembled V structure, and then fix it into the concrete block

STEP FOUR: Bracing connection with T bolt M8*20

STEP FIVE: Fix the D Rail to V structure, fasten with L connector

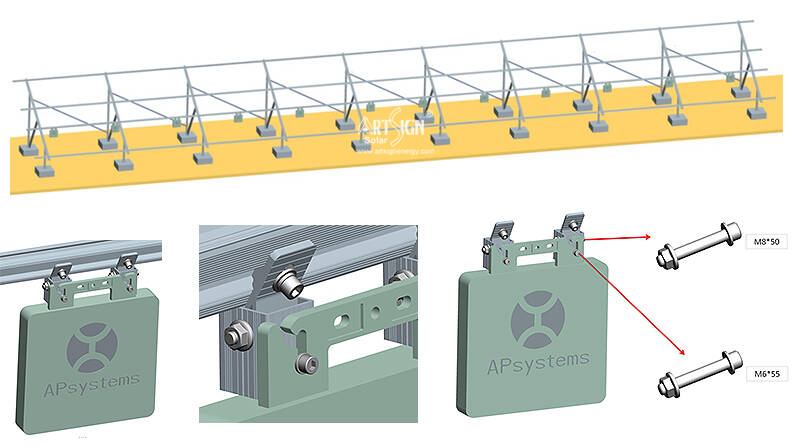

STEP SIX: Inverter fixing

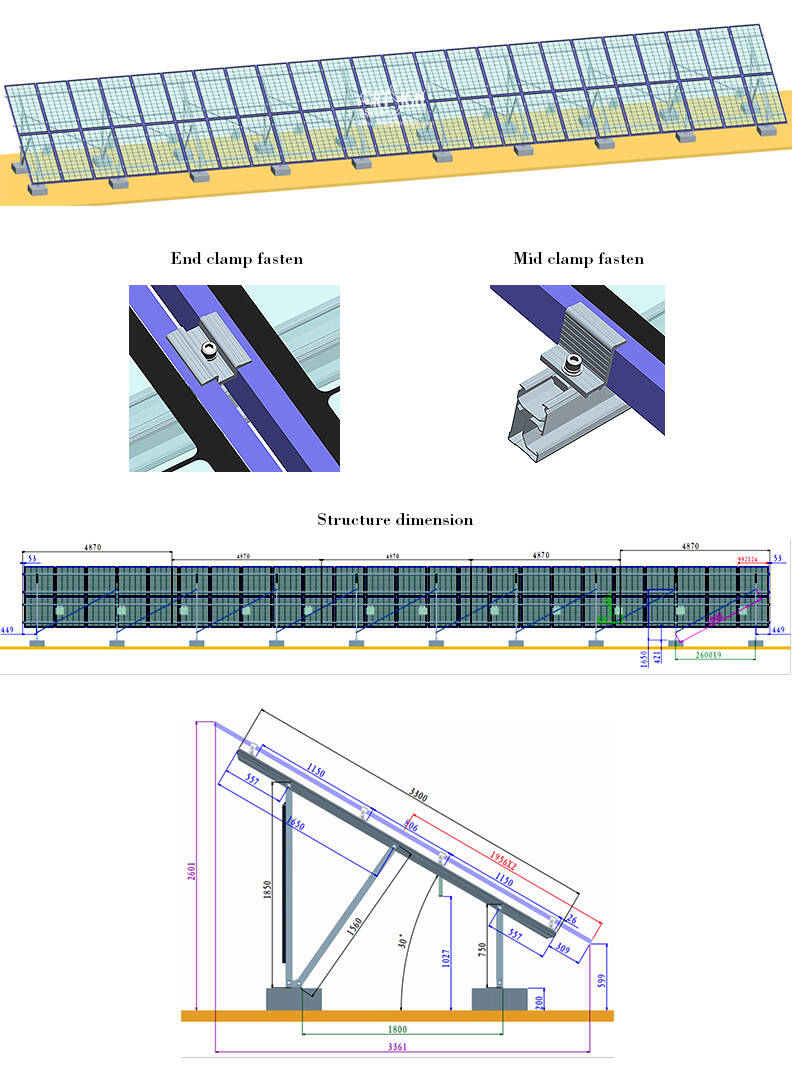

STEP SEVEN: Solar panel fasten

The above is the complete steps to install the solar brackets, inverters and solar panels. Although DIY solar panel installation is possible, it can be very difficult if you are not familiar with electrical work. A professional team of installers can help you find and install the right solar energy system for your needs.
