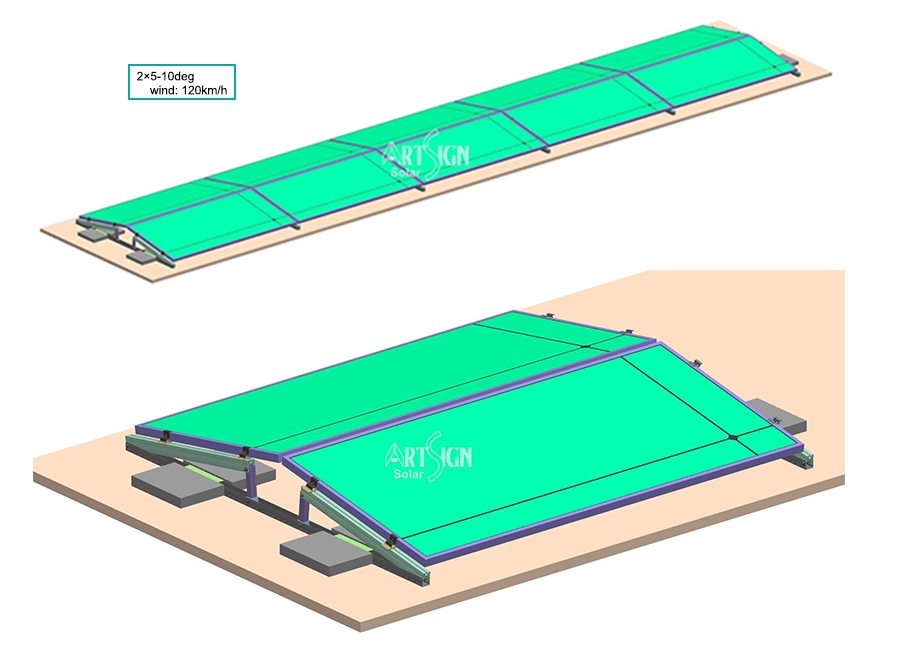

East/West Flat Roof Solar Mounting allows solar panel installed in facing west and east orientation, it is simple solar mounting solutions for flat roof, less components needed, and less work on site, it optimizes the roof space to increase the power production, which suitable for both residential and commercial flat roof pv installation.

Technical Information:

Install Site: Flat roof

Tilt Angle: Flushed with the roof(10 degree or customized angle)

Building Height: Up to 20M

Wind Speed: up to 60m/s

Snow load: 1.4kn/m2

Standard: AS/NZS1170.2 and other international standard

Material: Aluminum AL6005-T5 & Stainless steel 304

Color: Natural or customized

Warrenty: 20 years

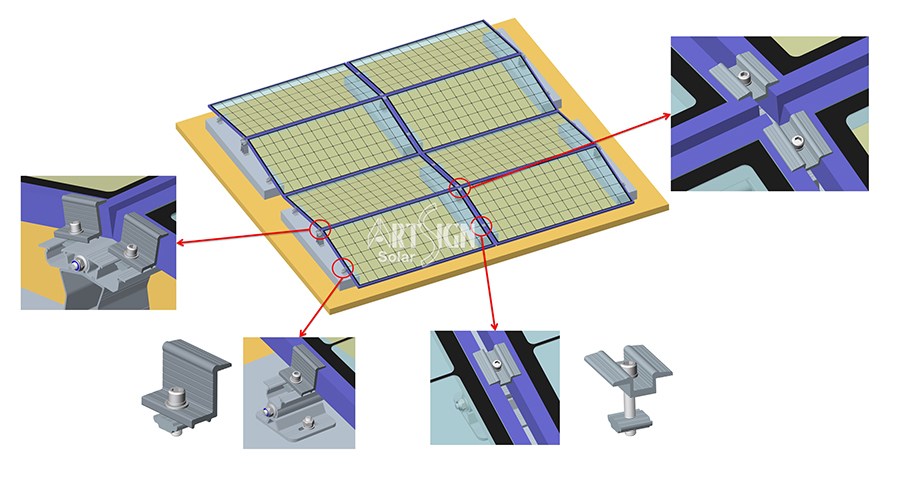

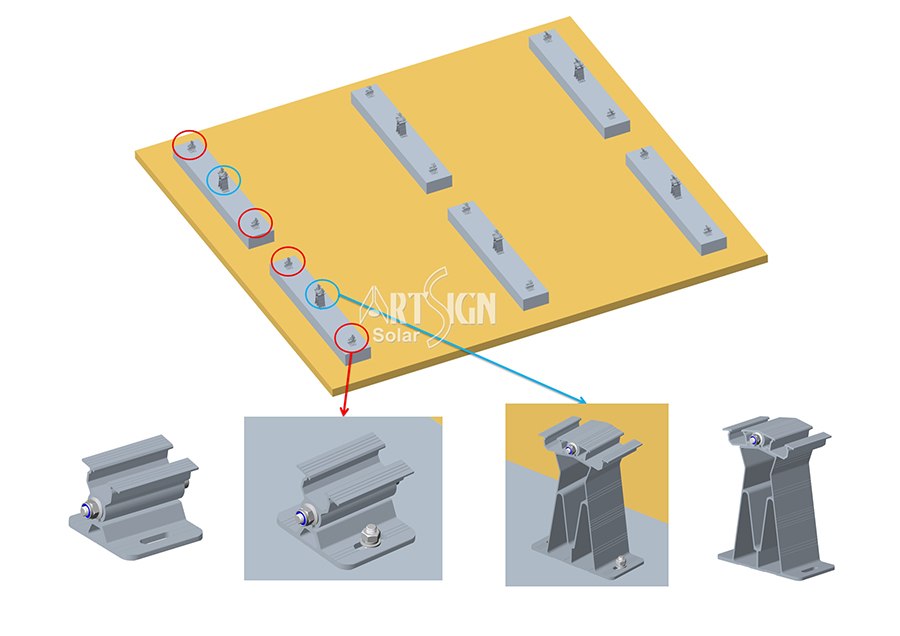

Main Components for East/West Flat Roof:

Art Sign Solar, founded in 2006, which is one of the biggest professional manufacturer of solar roof mounting system and solar ground mounting system in China, we also supply various solar mounting components such as solar rail, stainless steel roof hook, mid clamp, end clamp, standing seam roof clamp, triangle kit, adjustable front leg/rear leg, ground lug, earthing clip, cable clip, ground screw, steel channel rail, etc. Committed to become the most trusted solar photovoltaic system solutions partners with enterprises from all over the world .

For any inquiry, pls contact me Art Sign email: sales@artsign.net.cn, Whatsapp/ Wechat/ Skype: +86 180 3023 5875 , thanks.
