Rooftop mounting structure includes : aluminum roof bracket , stainless steel roof hooks,module clamps, grounding clips, cable clip , adjustable tilt kits, triangle kit and accessories, aluminum profile and accessories .
Xiamen Art signoffer U beam Triangle kit which is suitable for metal roof mounts and concrete roof mounts.
Place of origin
Xiamen China
Brand name
Art Sign
Mode number
AS-ATK-03
Installation
Flat concrete or metal roof
Material
Aluminum 6005-T5
Specs
customized
Surface treatment
Anodized above 10um
Packing
Pallet
Color
Silver
Warranty
20 years
The U beam Triangle kit include components : Aluminum rail --- D nut series has 4 types of rails to meet different wind load and snow load request .
Rail splice : two types for your option
Mide and end clamp
Anchor bolt is for fixing the mounting on the concrete roof .
Self tapping screw is for fixing the mounting on the metal roof .
Different types of U beam kits
Fixed triangle kit(Angle bar)

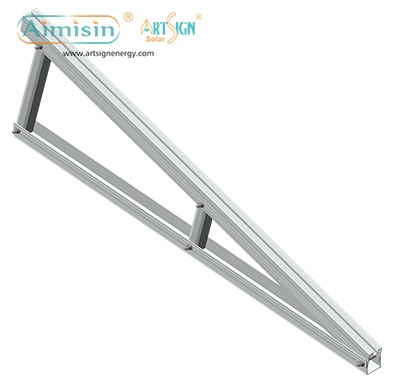

Fixed triangle kit(U beam shape)
AS-FTK-01

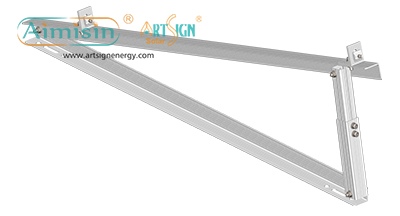

Adjustable triangle kit(Angle bar)
10-15°, 15-30°, 30-60°
AS-FTK-03

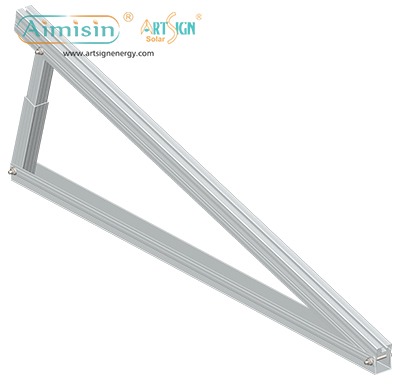

Adjustable triangle kit(U beam shape)
Adjustable flat roof mounting system
1. Triangle kit solar mount can be design with either fixed or adjustable angle for 15~ 30 ° or 30~ 60 °
2. Triangle kit solar racking is pre-assemble for your easy installation,save time and labour cost.
3. Triangle Tilt solar Mounting System works well on both metal roof sheet or concrete base, it's strong enough to resist big wind.Such as Dominica Republic, Philippines, Mauritius etc.
Surface treatment :
10μm thk.anodized aluminum, stainless steel 304 bolts and nuts
Design strength :
2 kinds of design to meet the different wind load and snow load requirement .
Certification :
Australia AS/NZS 1170.2- Wind load report, SGS report-Chemical & Physical test,
I would like to show you some pictures of our adjustable tilt kit project as below :
Xiamen art sign co.,ltd can produce 15-20MW of mounting structure per month, and we are professional on customized products such as Tile roof mounting system,Metal roof mounting system,Aluminum ground mounting system, solar farm mounting system and so on .
Welcome to send us any inquiry and we will offer you good price and best service and excellent products .
