Art sign U Beam Triangle kit | Artsignenergy.com Feb 17,2022

U Beam Triangle kit, concrete roof mounts, Xiamen Art sign offer U beam Triangle kit which is suitable for metal roof mounts and concrete roof mounts

The U beam Triangle kit include components : Aluminum rail --- D nut series has 4 types of rails to meet different wind load and snow load request .
Rail splice : two types for your option
Mide and end clamp
Anchor bolt is for fixing the mounting on the concrete roof .
Self tapping screw is for fixing the mounting on the metal roof .

Design features:
1.Suited for concrete flat roof and metal roof
2.Fixed customized degree or adjustable (10-15,15-30) degree design
3. All the components will be pre-assembled and it can save your time and labour cost .
Surface treatment : 10μm thk.anodized aluminum, stainless steel 304 bolts and nuts.
Design strength :2 kinds of design to meet the different wind load and snow load requirement .
Certification:Australia AS/NZS 1170.2- Wind load report, SGS report-Chemical & Physical test,

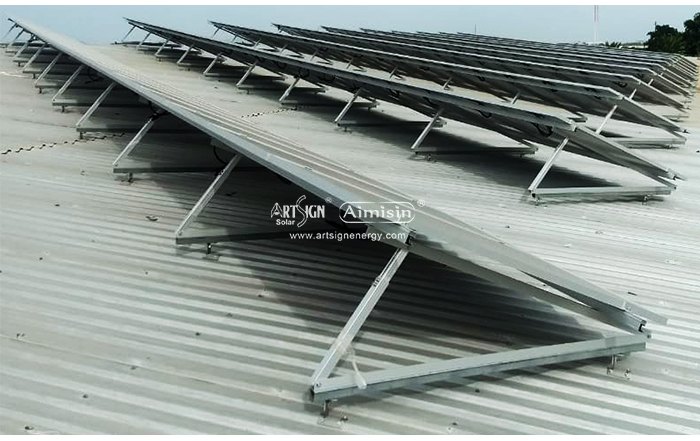

I would like to show you some pictures of our adjustable tilt kit project as below :aluminum rail

Aluminum ground mounting system

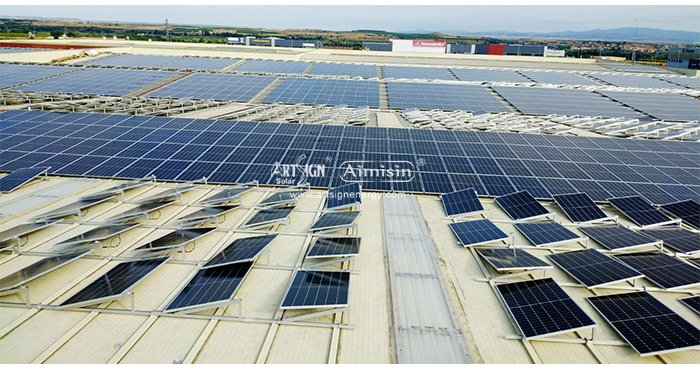

metal roof mounts

Xiamen art sign co.,ltd can produce 15-20MW of mounting structure per month, and we are professional on customized products such as Tile roof mounting system,Metal roof mounting system,Aluminum ground mounting system, solar farm mounting system and so on .

Welcome to send us any inquiry and we will offer you good price and best service and excellent products .

Email : sales@artsign.net.cn whatsapp/ wechat/ skype +86 180 3023 5875
