Art Sign Solar launches new metal roof mounting structures Nov 25,2024

As one of the leading solar PV mounting structure suppliers, Art Sign Solar has been consistently making substantial investments in research and development. In November of this year, Art Sign Solar has introduced a new solar aluminum structure designed for flat roofs, along with aluminum solar panel mounting rails for metal roofs and sandwich roofs.

solar mini rail

This newly launched solar rail is AS-XR-06&07, it’s used as mini rail, it’s light for transportation and flexible installation for metal roof / tin roof / sandwich roof / flat concrete roof.


Name
Solar mini rail
Code
AS-XR-06&07
Material
Aluminum 6005-T5
Surface treatment
With anodizing or without anodizing for choice
Dimension
W75mm X H85mm &100mm
length is customized according to the roof ribs distance.
Optional accessories
1.EPDM
2.ST6.3 self tapping screw or ST6.3 self drilling screw
3.Grounding lug
4.Earthing kit
5.Solar panel mounting clamps: solar mid clamp and solar end clamp
Package
Plywood pallet
Delivery
Within 10-15 work days

solar clamp
Mini track, light and easy to install, the length is generally within 550mm, you can also choose a longer length, such as 6m, and then cut it locally. The newly launched X6 and X7 heights are 85mm and 100mm respectively, which are very friendly to the heat dissipation of solar panels. The color can also be customized, black or silver.

Solar mounting system

 mini rail

The bottom of the mini rail can be adhesive with EPDM rubber pad (different adhesive methods can be selected).If there are clients require the EPDM to cover the who aluminum rail, it’s acceptable too. Remember that we’re a factory, we can meet the various market demands.

mini roof rail
aluminum rail
solar mini rack

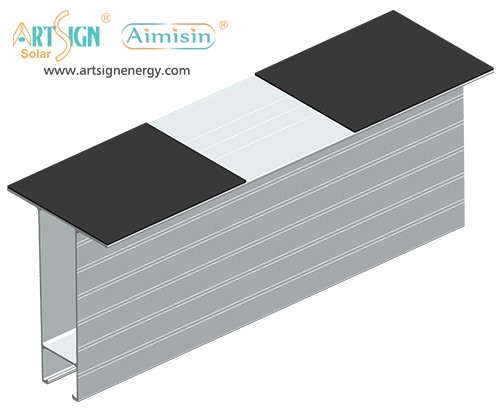

Method 1: EPDM rubber pad (75x90mm) on the bottom

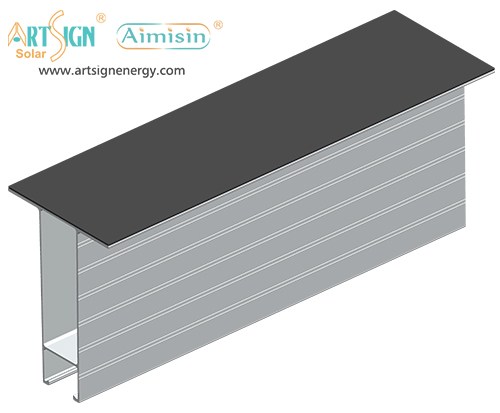

Method 2: A whole strip of EPDM rubber pad (width 75mm) fully covered the bottom of the mini rail

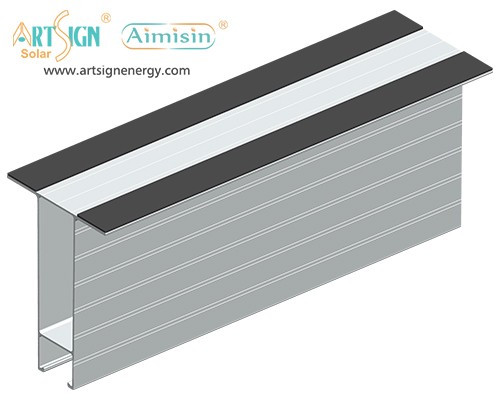

Method 3: Stick two EPDM rubber pads (width 22mm) on the bottom of the mini rail.

ArtSign has many megawatt projects all around the world, we have thousands of mounting solutions for choice.


For any inquiry for best solar racking system, please feel free to contact us, E-mail: sales@artsign.net.cn, Whatsapp / Wechat Skype: +86 18030235875, thanks.
